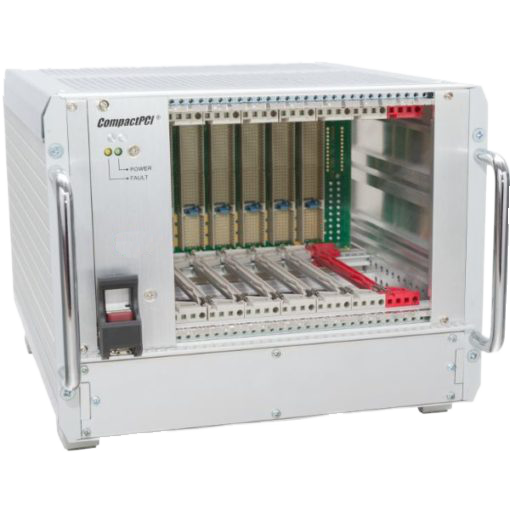

CompactPCI 4U 42HP 7 Slots
with 3.3 V I/O backplane
Spezifikationen
- 7 slots, 32-bit / 33 MHz, system slot right, rear I/O, 3.3 V/5 V I/O
- 300 W PSU, 90–264 VAC, switch + EMI filter
- Outputs: 3.3 V/25 A, 5 V/25 A, +12 V/7 A, –12 V/2 A
- Fixed bottom fan tray, 2 × 12 V fans, bottom-to-top airflow
- 4U × 42HP × 278 mm, desktop form factor
- IEEE 1101.1/10/11, IEC 60297-3; MIL-STD-810F; EN 50155
A flexible and sturdy desktop CompactPCI chassis, combining a customizable I/O backplane with compact dimensions and robust mechanics. Its fixed fan tray and integrated 300 W power supply make it a reliable solution for embedded and industrial applications needing high-density card capacity in a small footprint.
Downloads
Datasheets
CompactPCI 4U 42HP 7 Slots Datasheet
[ compactpci-4u-42hp-7-slots.pdf, 1.04 MB, Oct.27.2025 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
CompactPCI 4U 42HP 7 Slots LMH0000860 |
|
with 5 V I/O backplane | |
|
CompactPCI 4U 42HP 7 Slots LMH0000870 |
|
with 3.3 V I/O backplane |
