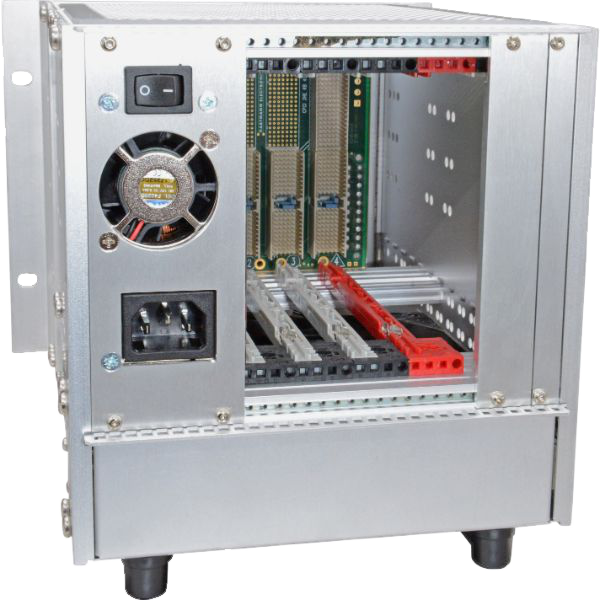

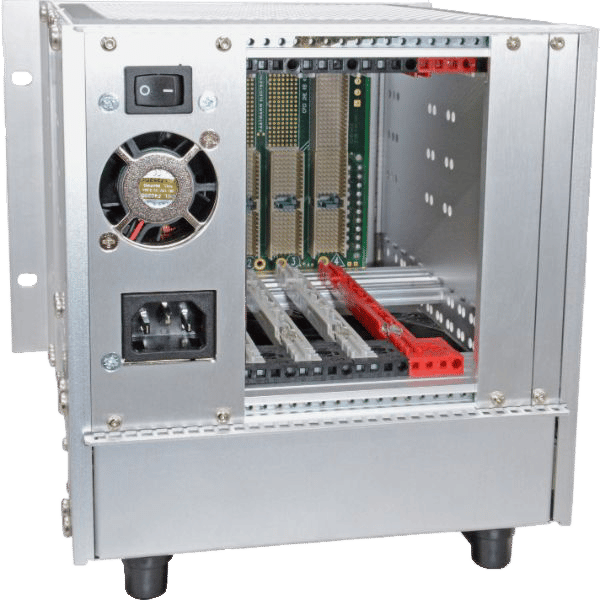

CompactPCI 4U 32HP 4 Slots
Compact, high-performance 4U CompactPCI chassis available with choice of 3.3 V or 5 V I/O backplane, designed for efficient space use in industrial or embedded environments.
Spezifikationen
- 4 slots, 32-bit / 33 MHz, system slot right; 3.3 V / 5 V I/O
- 180 W ATX PSU, 100–240 VAC, front switch
- Single 120 mm fan (120 CFM, 48 dB(A)), bottom-to-top airflow
- Dimensions: 4U × 32HP × 254.4 mm
- Compliance: IEEE 1101.1/10/11, IEC 60297-3; MIL-STD-810F; EN 50155
- Outputs: 3.3 V/12 A, 5 V/14 A, +12 V/14 A, –12 V/0.3 A
This CompactPCI chassis combines flexible backplane options with robust power and cooling in a compact 4U form factor. Ruggedly certified, it’s ideal for industrial control, embedded applications, and railway use—particularly where space and reliability are critical.
Eigenschaften
| Features | Backplane Options: Choose between 3.3 V or 5 V I/O for versatile system design Reliable Power Delivery: Includes a 180 W ATX PSU with user-accessible front switch Efficient Cooling: Large 120 mm fan for bottom-to-top airflow ensures thermal stability Rugged Construction: Certified to industrial, military, and railway standards for maximum durability Space-Saving Design: Compact 4U × 32HP form factor, ideal for rack or panel-mounting needs |
Downloads
Datasheets
CompactPCI 4U 32HP 4 Slots Datasheet
[ compactpci-4u-32hp-4-slots.pdf, 1.23 MB, Oct.23.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
CompactPCI 4U 32HP 4 Slots LMH0000113 |
|
with 5V VI/O backplane | |
|
CompactPCI 4U 32HP 4 Slots LMH0000970 |
|
with 3.3V VI/O backplane |
