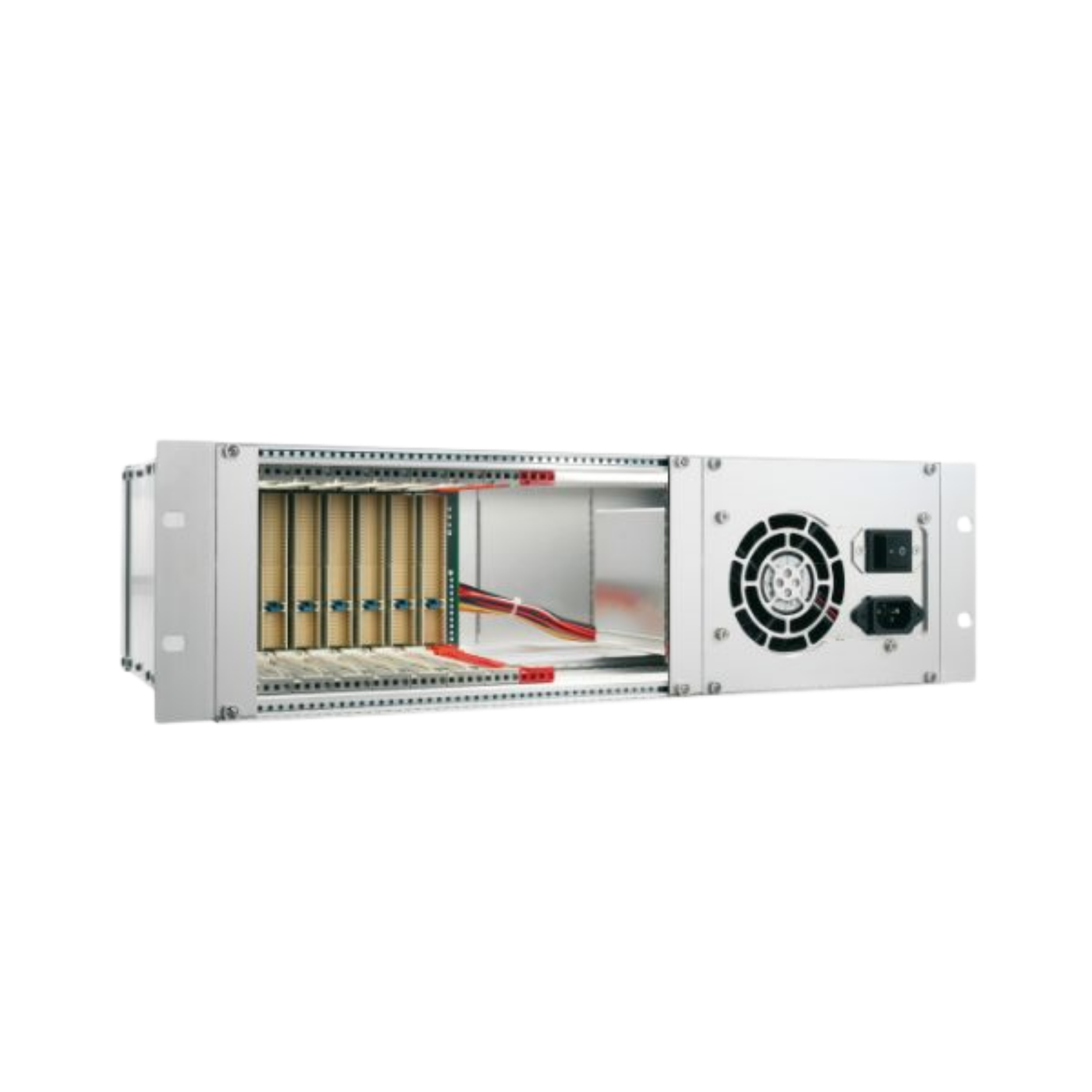

CompactPCI 3U/84HP 8 Slots

Full-width 3U CompactPCI rack-mount chassis with 8-slot backplane—available in 3.3 V or 5 V I/O—and designed for vertical card mounting in compact, industrial environments.

8 slots, 32-bit / 33 MHz, system slot right, rear I/O, 3.3 V/5 V I/O
300 W ATX PSU, 90–264 VAC
Outputs: 3.3 V/28 A, 5 V/35 A, +12 V/22 A, –12 V/1 A
Fixed cooling, bottom-to-top airflow
3U × 84HP, 19″ rack-mount

Produkt anfragen Datenblatt herunterladen

Produktinformationen

This 3U 84HP chassis brings high-performance CompactPCI capability in a compact form, ideal for space-critical industrial and embedded systems. Backplane customization, robust power, and hassle-free cooling, all encased in a fully tested rack-mount design, make it a dependable platform for demanding applications.

Technischer Support

Technische Daten

Features	8-slot CompactPCI backplane with choice of 3.3 V or 5 V I/O and rear I/O support Reliable 300 W ATX power supply with wide voltage input range Compact vertical layout, full rack width in just 3U height Simple, maintenance-free cooling with fixed internal airflow Fully compliant chassis, rugged and pre-assembled for quick deployment
