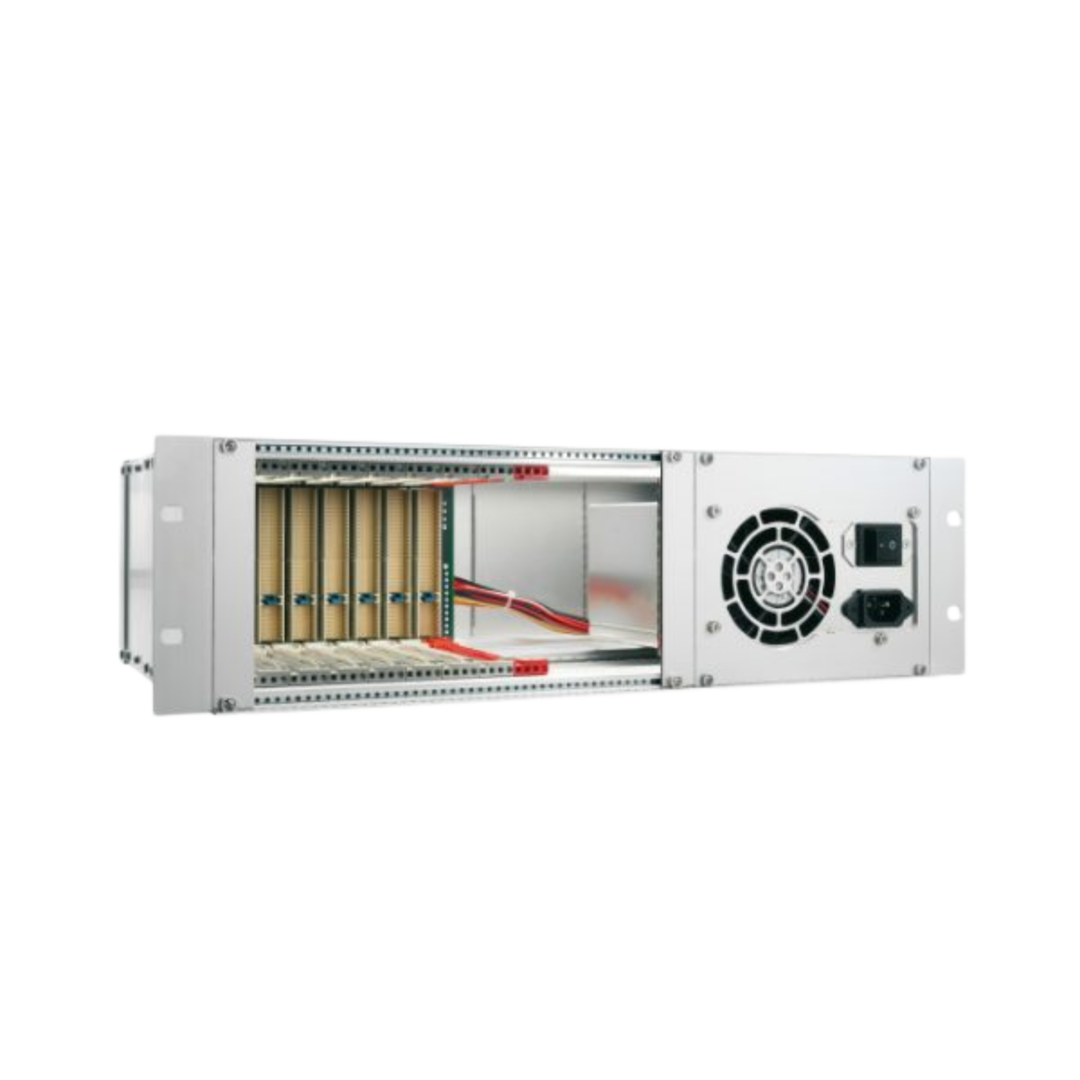

CompactPCI 3U/84HP 8 Slots
Full-width 3U CompactPCI rack-mount chassis with 8-slot backplane—available in 3.3 V or 5 V I/O—and designed for vertical card mounting in compact, industrial environments.
Spezifikationen
- 8 slots, 32-bit / 33 MHz, system slot right, rear I/O, 3.3 V/5 V I/O
- 300 W ATX PSU, 90–264 VAC
- Outputs: 3.3 V/28 A, 5 V/35 A, +12 V/22 A, –12 V/1 A
- Fixed cooling, bottom-to-top airflow
- 3U × 84HP, 19″ rack-mount
- Compliance: IEEE 1101.1/10/11, IEC 60297-3
This 3U 84HP chassis brings high-performance CompactPCI capability in a compact form, ideal for space-critical industrial and embedded systems. Backplane customization, robust power, and hassle-free cooling, all encased in a fully tested rack-mount design, make it a dependable platform for demanding applications.
Eigenschaften
| Features | 8-slot CompactPCI backplane with choice of 3.3 V or 5 V I/O and rear I/O support Reliable 300 W ATX power supply with wide voltage input range Compact vertical layout, full rack width in just 3U height Simple, maintenance-free cooling with fixed internal airflow Fully compliant chassis, rugged and pre-assembled for quick deployment |
Downloads
Datasheets
CompactPCI 3U 84HP 8 Slots Datasheet
[ compactpci-3u-84hp-8-slots.pdf, 881.46 KB, Oct.27.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
CompactPCI 3U/84HP 8 Slots LMH0000100 |
|
with 5V VI/O backplane | |
|
CompactPCI 3U/84HP 8 Slots LMH0000330 |
|
with 3.3V VI/O backplane |
