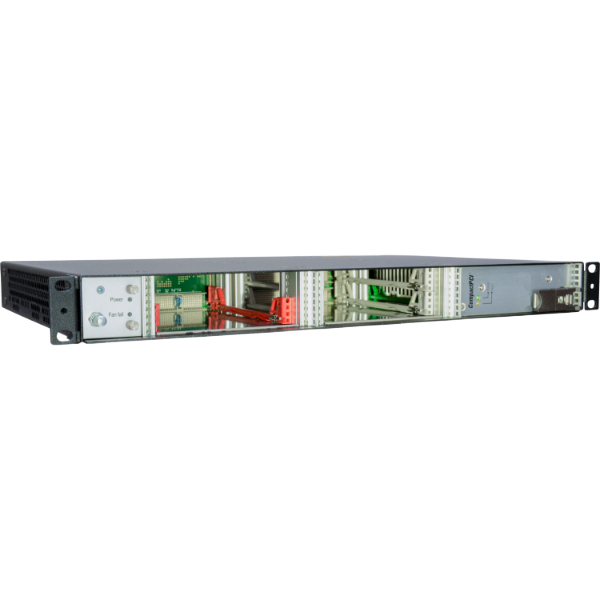

CompactPCI 1U 84HP 3 Slots
Slim, full-width 1U CompactPCI chassis with 3-slot backplane (5 V I/O), rear I/O, and a hot-swappable fan tray—designed for compact industrial systems with robust cooling and real-time monitoring.
Spezifikationen
- 3 slots, 32-bit / 33 MHz, system slot left, rear I/O
- 250 W hot-swap PSU, 90–264 VAC, switch + EMI filter
- Outputs: 3.3 V/25 A, 5 V/25 A, +12 V/5 A, –12 V/1 A
- Removable fan tray, 4 fans (13.1 CFM), LEDs, left-to-right airflow
- 1U × 84HP × 283 mm, 19″ rack-mount
- Compliance: IEEE 1101.1/10/11, IEC 60297-3; MIL-STD-810F; EN 50155
This compact 3-slot CompactPCI chassis delivers efficient power and controlled cooling in a space-saving 1U form factor. Robust features, including a hot-swappable PSU and LED-monitored fan tray, ensure high reliability in rugged and industrial environments.
Eigenschaften
| Features | Compact full-width 1U design with 3-slot CompactPCI backplane and rear I/O. 250 W hot-swappable cPCI power supply, complete with safety components. Efficient, LED-monitored cooling tray for easy maintenance. Rugged, standards-compliant chassis suitable for industrial and railway applications. Ready for installation, delivered completely assembled, wired, and tested. |
Downloads
Datasheets
CompactPCI 1U 84HP 3 Slots Datasheet
[ compactpci-1u-84hp-3-slots_lmh0000491.pdf, 881.46 KB, Oct.27.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
CompactPCI 2U 84HP 4 Slots LMH0000222 |
|
300 W cPCI PSU, removable fan tray, hot-swap |
