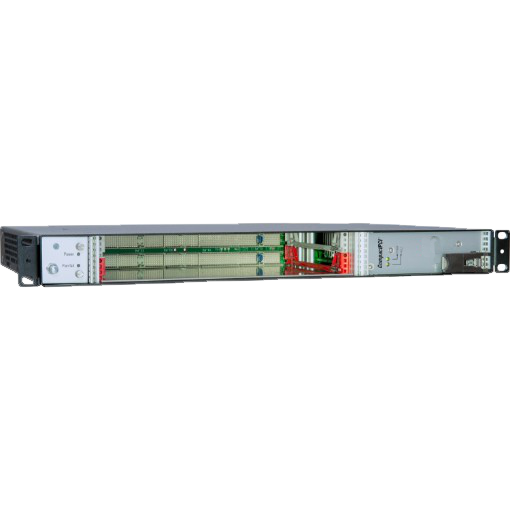

CompactPCI 1U 84HP 2 Slots
Ultra-compact, full-width 1U CompactPCI chassis with a 2-slot backplane and rear I/O — built for high-performance CompactPCI-based systems in space-constrained industrial and embedded applications.
Spezifikationen
- 2 slots, 64-bit / 33 MHz, system slot left, rear I/O
- 250 W hot-swap PSU, 90–264 VAC
- Outputs: 3.3 V/25 A, 5 V/25 A, +12 V/5 A, –12 V/1 A
- Removable fan tray, 4 fans (13.1 CFM), LEDs, left-to-right airflow
- 1U × 84HP × 283 mm, 19″ rack-mount
- Compliance: IEEE 1101.1/10/11, IEC 60297-3; MIL-STD-810F; EN 50155
This 1U CompactPCI chassis packs full functionality into a slim form factor, delivering modular, high-performance capabilities in even the most space-limited installations. Rugged, serviceable, and ready to deploy in industrial, embedded, and mobile systems.
Eigenschaften
| Features | Compact design (1U / 84HP) ideal for tight rack spaces. Hot-swappable 250 W cPCI PSU for uninterrupted operation. Rear I/O configuration with P47 connector for simplified cabling. Removable fan tray with LED indicators for easy maintenance and monitoring. Rugged chassis compliant with industrial, military, and railway standards. |
Downloads
Datasheets
CompactPCI 1U 84HP 2 Slots Datasheet
[ compactpci-1u-84hp-2-slots.pdf, 801.25 KB, Oct.27.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
CompactPCI 4U 84HP 8 Slots LMH0000880 |
|
Dual 300 W cPCI PSU, removable fan tray, hot-swap |
