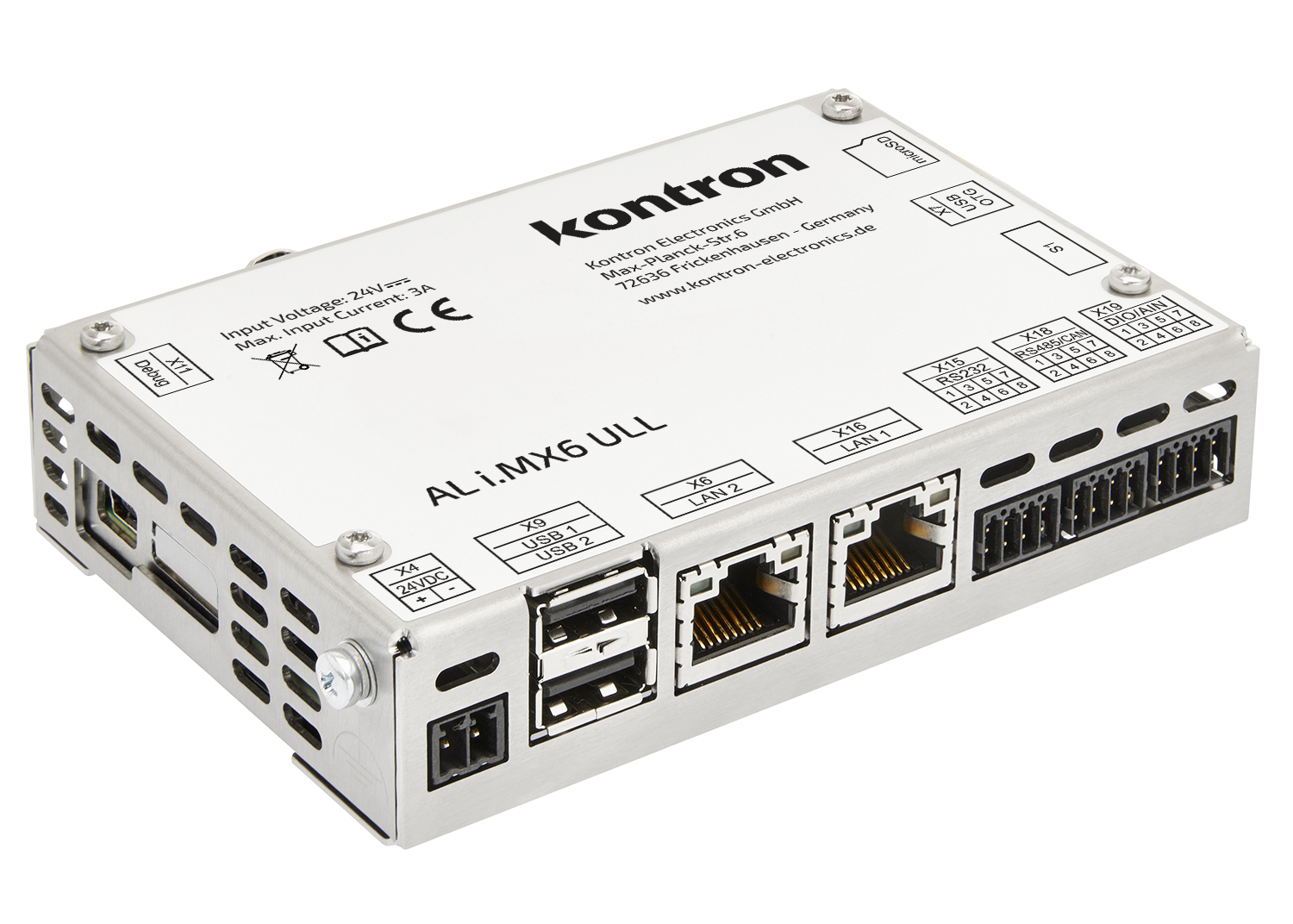

AL i.MX6 ULL
Kompakter Box-PC mit i.MX6 ULL, 1x Arm® Cortex®-A7 @800 MHz
Spezifikationen
- Speicher: DDR3-RAM, eMMC, 1x microSD-Karten-Slot
- Kommunikation: Ethernet, USB, RS232, RS485, CAN, DIO, AIO
- Betriebssystem: Embedded Linux
Eigenschaften
| CPU | NXP i. MX6 ULL, 1x Arm® Cortex®-A7 @800 MHz |
| DDR3-RAM | 512 MByte, Option: 256 MByte |
| NAND-Flash | 512 MByte, Option: 256 MByte |
| NOR-FLASH | 1 MByte |
| eMMC | 4 GByte, Option: 8 GByte - 64 GByte |
| SD CARD | 1x microSD Card Slot |
| NV MEMORY | 8 kByte (64 kb) nvSRAM |
| Ethernet | 2x 10/100 Mbit/s |
| USB | 2x 2.0 Host, 1x 2.0 OTG |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN 2.0 B |
| DIO | 2x DIO (24 V/up to 800 mA) |
| AIO | 2x AIN (0...24 V) |
| Power Supply | 24 V DC ±20 % |
| Power Consumption | Linux running <1,5 W |
| Form Factor | Stainless steel housing 111 x 25 x 76 mm for mounting on 35mm mounting rail acc. to EN 60715 |
| Temperature range | 0 °C...+55 °C |
| Protection Class | IP20 |
| Bootloader | U-Boot |
| Operating System | Embedded Linux (Yocto Distribution) |
| RTC | 5ppm accuracy |
| RTC BUFFERING | CR 1220 |
| Debug | 1x Console |
| Audio | 1x Buzzer |
| Security | Secure Boot, RNG, AES-128 |
