9U VME64x 6021 Full Size Chassis

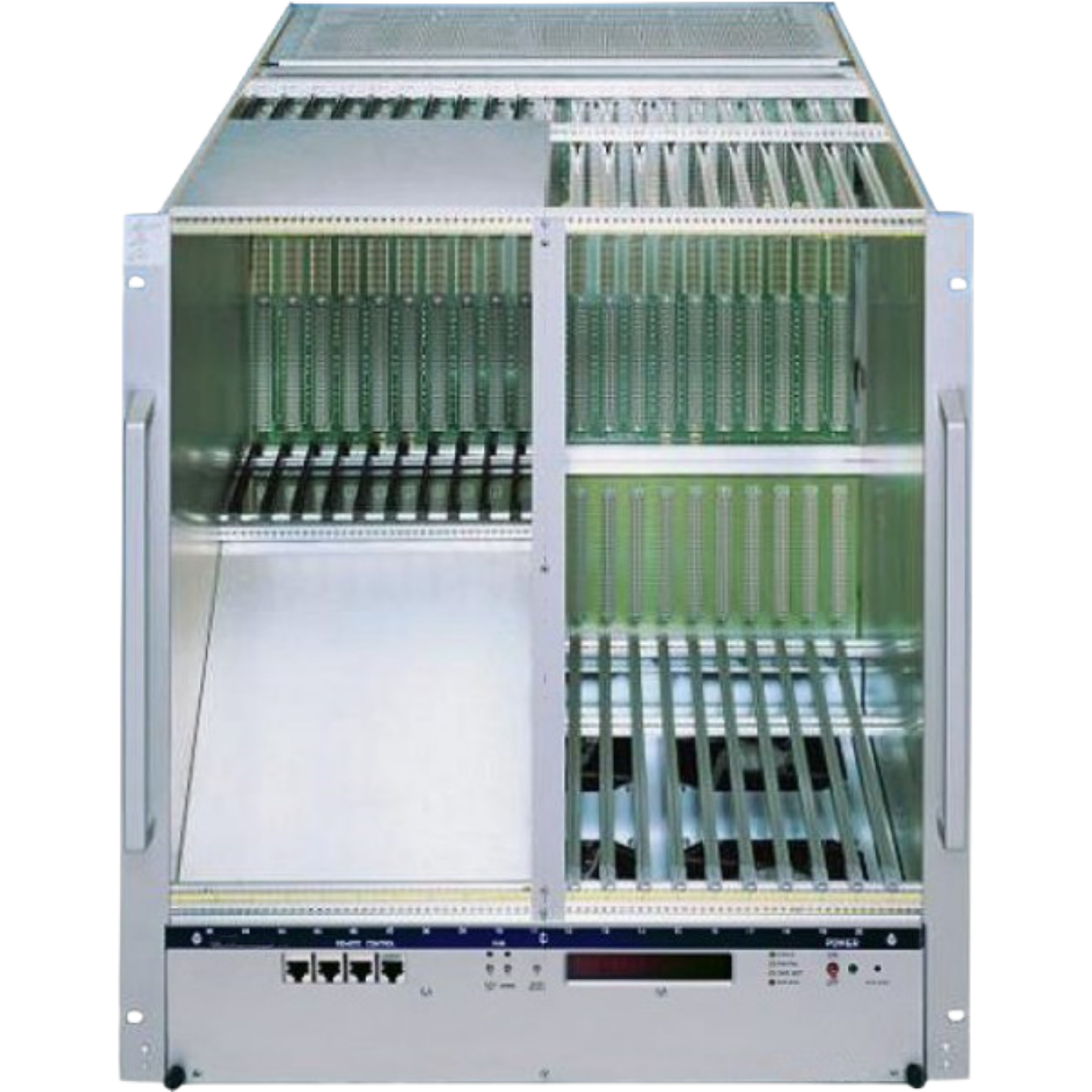

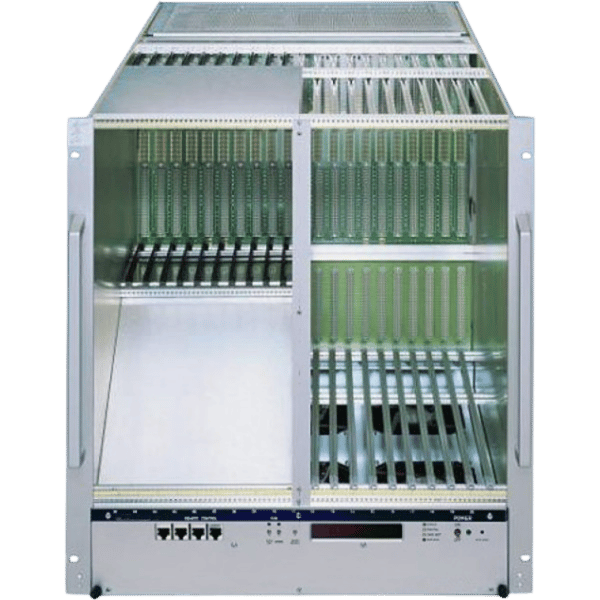

The 9U VME64x 6021 Full Size Chassis is a high-performance integrated crate system for 9U × 400 mm VME/VME64x cards, featuring robust mechanical design, microprocessor-controlled power and cooling, and advanced local and remote monitoring capabilities.
Spezifikationen
- Mechanics: 9U × 400 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: Up to 21 VME64x (optional P0 connectors)
- Power Supply: Up to 6 kW, low-noise “Cavity-VHF” switching
- Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
- Interfaces: Ethernet, CAN-bus
- Cooling: Bottom-to-top DC blower, 1200–3600 RPM, temperature-controlled
The Kontron Hartmann Wiener VME 6021 crate series delivers state-of-the-art performance for demanding data acquisition, control, and test instrumentation applications.
Its rugged steel–aluminum chassis features heavy-duty side plates, a monolithic 10-layer VME64x backplane, and flexible configuration options. The integrated UEL 6020 EX fan tray offers variable-speed cooling with precise thermal monitoring, while the modular UEP 6021 power supply ensures high efficiency and extremely low noise.
A built-in Ethernet interface enables comprehensive remote monitoring and control of power supply, fans, and temperature sensors. Options include mixed 6U/9U card cages, rear transition modules, up to eight temperature sensors, and advanced EMC/ESD shielding.
This system’s modular approach allows easy customization for high-current, low-ripple performance in mission-critical environments."
Eigenschaften
| Features | 19” × 11U enclosure for 9U × 400 mm VME/VME64x cards Vario option for mixed 6U and 9U card cages Monolithic 10-layer VME64x backplane with active termination and CBLT compliance Modular “Cavity-VHF” power supply, up to 3 kW (3U) or 6 kW (6U) output Ultra low-noise design (< 3 mVpp on voltages < 12 V) Microprocessor-controlled power and cooling with local display Built-in Ethernet and USB interfaces for remote monitoring/control Optional rear transition card cage (3U or 6U) Up to 8 temperature sensors for thermal management Rugged construction with 5 mm heavy-duty side plates CE conformity and worldwide auto-range AC input with PFC Available fan tray configurations with 4, 6, or 9 long-life DC fans Optional ultra-low ripple version for sensitive applications |
