6U VXI-C Size High Power Receiver Crate Datasheet
743.09 KB | 26. März 2026
6U VXI-C Size High Power Receiver Crate

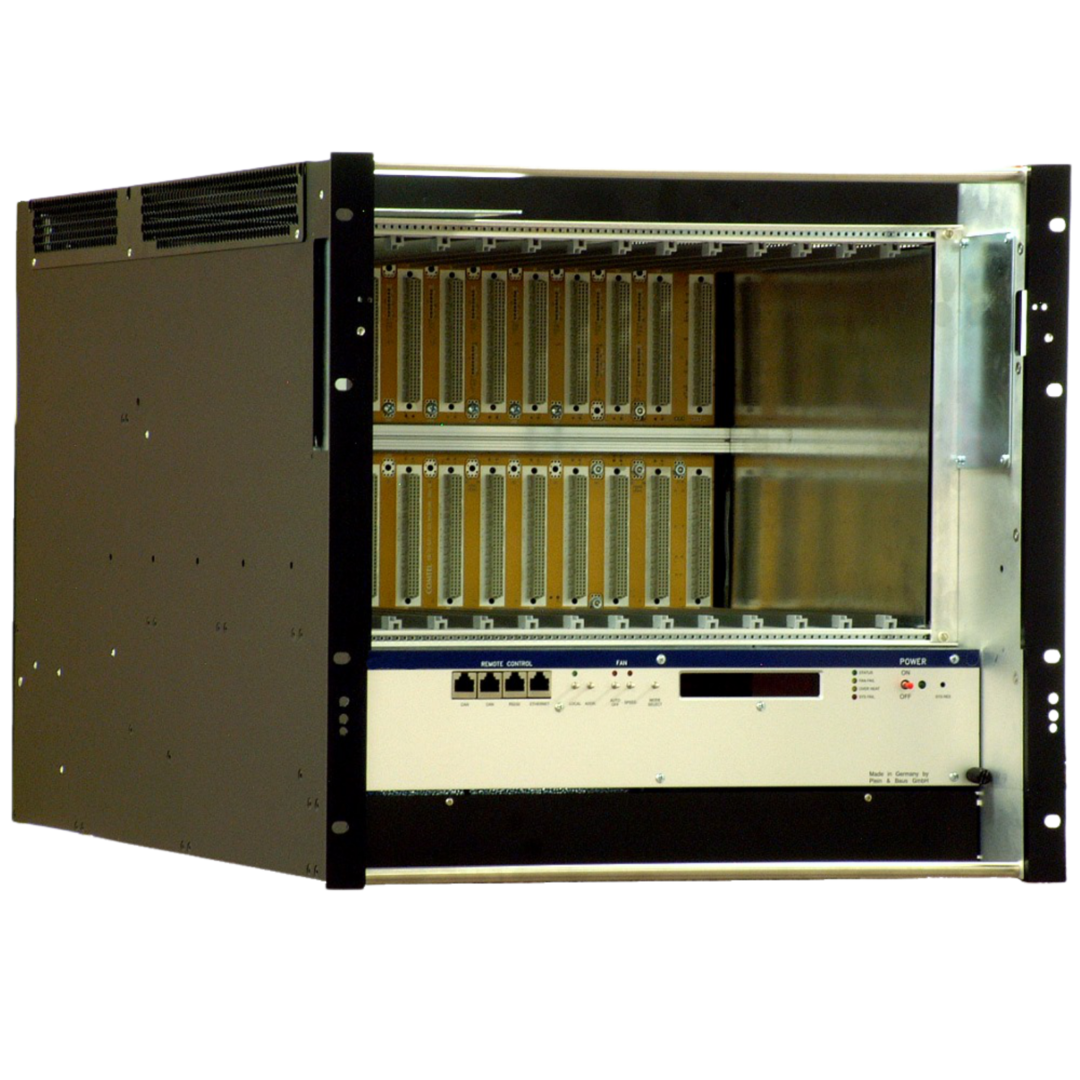

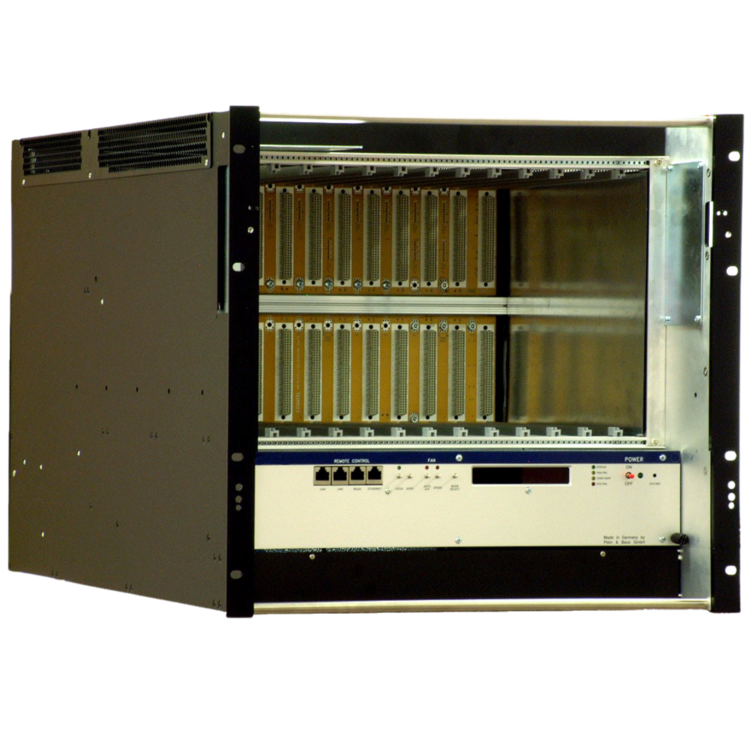

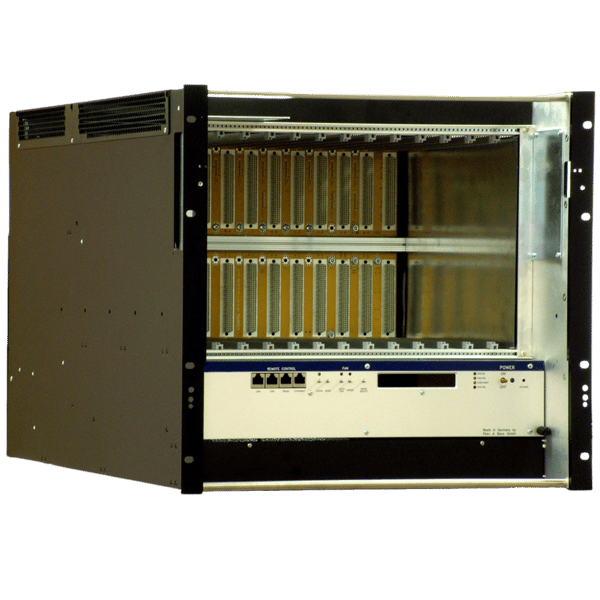

The 6U VXI‑C Size High Power Receiver Crate is a robust, front-access, high-density VXI chassis (C-size, 6U × 340 mm) offering 13 slots and up to 6 kW of DC power capacity.
- High-power 6U VXI-C crate capable of delivering up to 6kW DC via modular UEP 6021 PSU
- 13-slot VXI backplane with rugged 19“, 10 U enclosure for demanding test applications
- Advanced dual cooling: temperature-controlled fan tray with high-volume airflow and air filter for optimal thermal managment
- Comprehensive monitoring/control via integrated CML with Ethernet/RS232/CAN/USB capabilities
- Built to 6000-series high-realibility standards with full protection, modular mechanics, and isolated DC power distrubtion
Produktinformationen
It features enhanced cooling with a temperature-controlled high-pressure fan tray, modular design, and advanced microprocessor-based diagnostics for demanding test environments.
The crate combines a rugged steel-aluminum 10U enclosure with a 13-slot monolithic VXI backplane featuring active termination and automatic daisy-chain. Cooling is provided by a temperature-controlled high-pressure fan tray with air filter, supporting advanced diagnostics via a microprocessor with LED display and remote Ethernet interface. The modular power system uses “Cavity-VHF” switching technology to deliver up to 6 kW of DC power through programmable, auto-ranging power blocks with full protection and excellent noise performance (<10 mVpp). Designed for mission-critical test and instrumentation setups, the crate balances serviceability with high performance.
Technische Daten
| Mechanics & Slots | 19″ × 10U enclosure, accommodating 13 C-size VXI modules (6U × 340 mm) Heavy-duty steel-aluminum build with 5 mm side plates and precise rail alignment Monolithic 13-slot VXI backplane with active termination and daisy-chain Front-access power supply insertion, available air filter, and optional up to 8 temperature sensors above modules |
|---|---|
| Cooling & Fans | Temperature-controlled, high-pressure fan tray with air filter Bottom/side air intake, top/rear/side exhaust airflow design Configurable with six individual DC fans (standard, HRPM, or super-blower options) Fan speed and thermal monitoring with microprocessor, LED display, and Ethernet/remote control |
| Power Supply | Modular “Cavity-VHF” switching design with high-density output up to 6 kW Excellent RF shielding, low ripple (<10 mVpp for <12 V rails) Programmable voltage/current limits, over-/under-voltage and temperature protection World-wide auto-range AC input (94–260 V) with Power Factor Correction (PFC) |
| Diagnostics & Remote Control | Microprocessor-controlled system with alphanumeric LED display for power, fan, and temperature data Ethernet interface (plus RS-232/CAN-bus) for remote monitoring and configuration |
| Dimensions (W x H x D) | approx. 19″ × 10U × 674 mm (W × H × D) |
