6U VXI-C size 4600 RR Crate Series

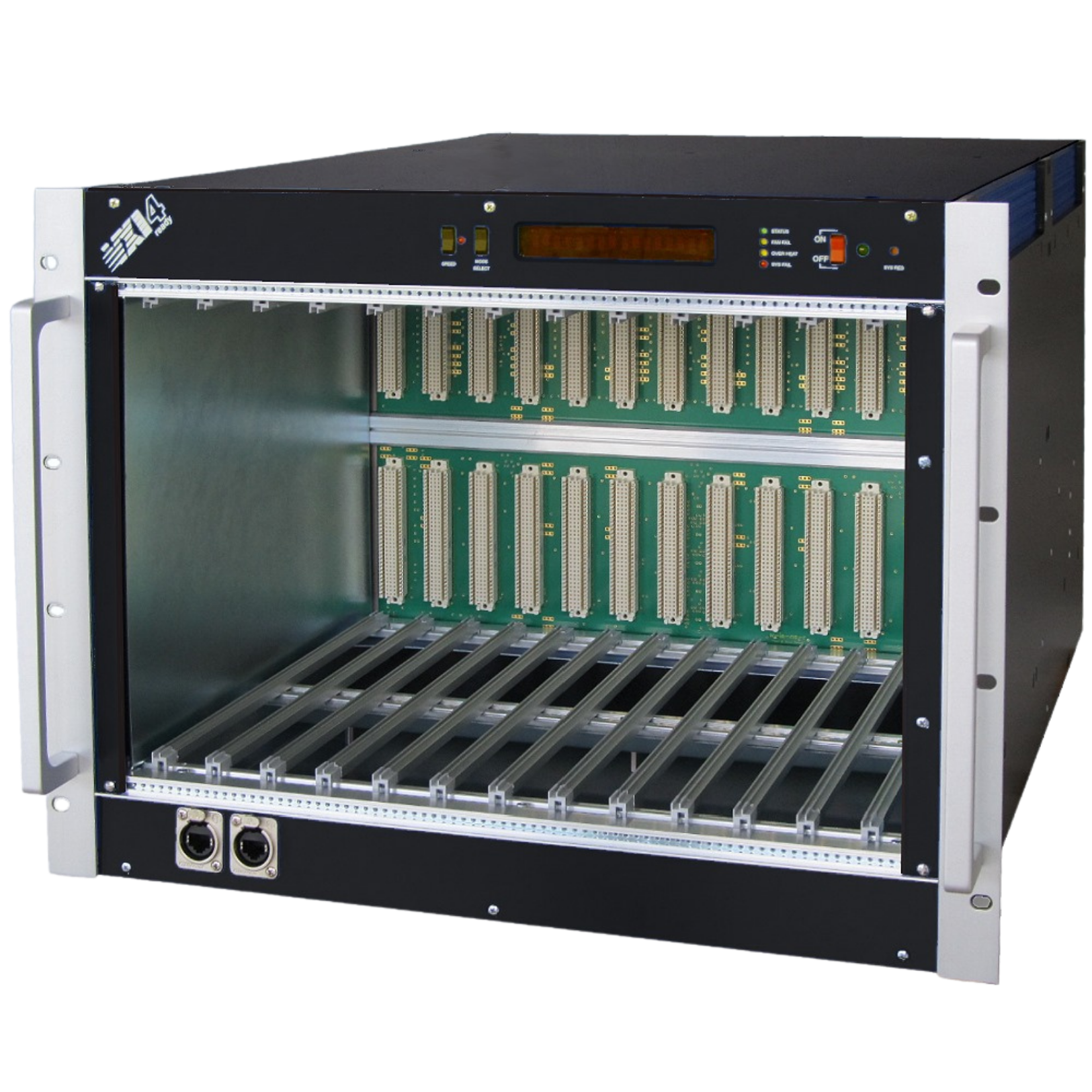

The 6U VXI-C size 4600 RR Crate Series is a robust 13-slot chassis (C-size, 6U × 340 mm) engineered for high-performance automated test and scientific applications.
Spezifikationen
- 13-slot 6U VXI crate (10 U, 19“) with high power densitiy (up to 3kW DC) capability
- Rear-side cooling via modular 3U fan tray with three high-efficiency DC fans and optional air filter
- Ultra-low noise PSU utilizing VHF-switching technology for clean, reliable power
- Rugged steel-aluminium construction, ideal for demanding test environments
- Advanced monitoring via microprocessor-controlled fan tray with alphanumeric LED display
It features a compact 8U, 19″ enclosure with rear-intake/rear-exhaust cooling (RR), high-density modular power-supply options up to approximately 3 kW, and built-in remote monitoring.
The 6U VXI-C size 4600 RR Crate Series provides a high-density, high-performance VXI chassis in a rugged 8U form factor. It includes a monolithic 13-slot VXI backplane with active termination and automatic daisy-chain functionality, integrated into a steel–aluminum enclosure with precision mechanics. Cooling is achieved through a rear-mounted removable fan tray containing three high-efficiency, adjustable-speed DC fans with optional air filtering, supported by dedicated air compression and exhaust chambers.
Remote and local management is handled by an integrated shelf manager that enables thermal, fan, and power monitoring via an alphanumeric LED display, Ethernet, RS-232, and additional I/O controls. Power is supplied by modular, low-noise “Cavity-VHF” switching units with auto-range 94–260 V AC input and Power Factor Correction, supporting up to approximately 3 kW total output.
With a weight of around 15 kg and dimensions of 19″ × 8U × 480 mm, this crate is ideally suited for demanding automated test and scientific instrumentation environments.
Eigenschaften
| Mechanics & Slots | 19″ × 8U enclosure for 13 C-size VXI modules (6U × 340 mm) Rugged steel–aluminum build with precision rails Monolithic 13-slot VXI backplane, active termination, auto daisy-chain |
| Cooling & Fans | Rear-positioned removable fan tray with 3 high-efficiency DC fans Adjustable fan speed, optional air filter 1U air compression chamber below and 1U exhaust above module cage |
| Control & Monitoring | WIENER Shelf Manager for local/remote control and monitoring (power, fans, sys reset, thermal) Alphanumeric LED display, front-panel switches, I/O ports, Ethernet, RS-232 Support for up to 8 temperature sensors within the card cage |
| Power Supply | High-density modular "Cavity-VHF" switching power supplies with very low noise World-wide auto-range AC input (94–260 V) with PFC, CE-compliant Power output up to ~3 kW, expandable via modular power modules |
| Dimensions (W x H x D) | 19″ × 8U × 480 mm (W × H × D) |
| Weight | approx. 15 kg |
