6U VME430 6021 Full Size Chassis
462.44 KB | 26. März 2026
6U VME430-6021

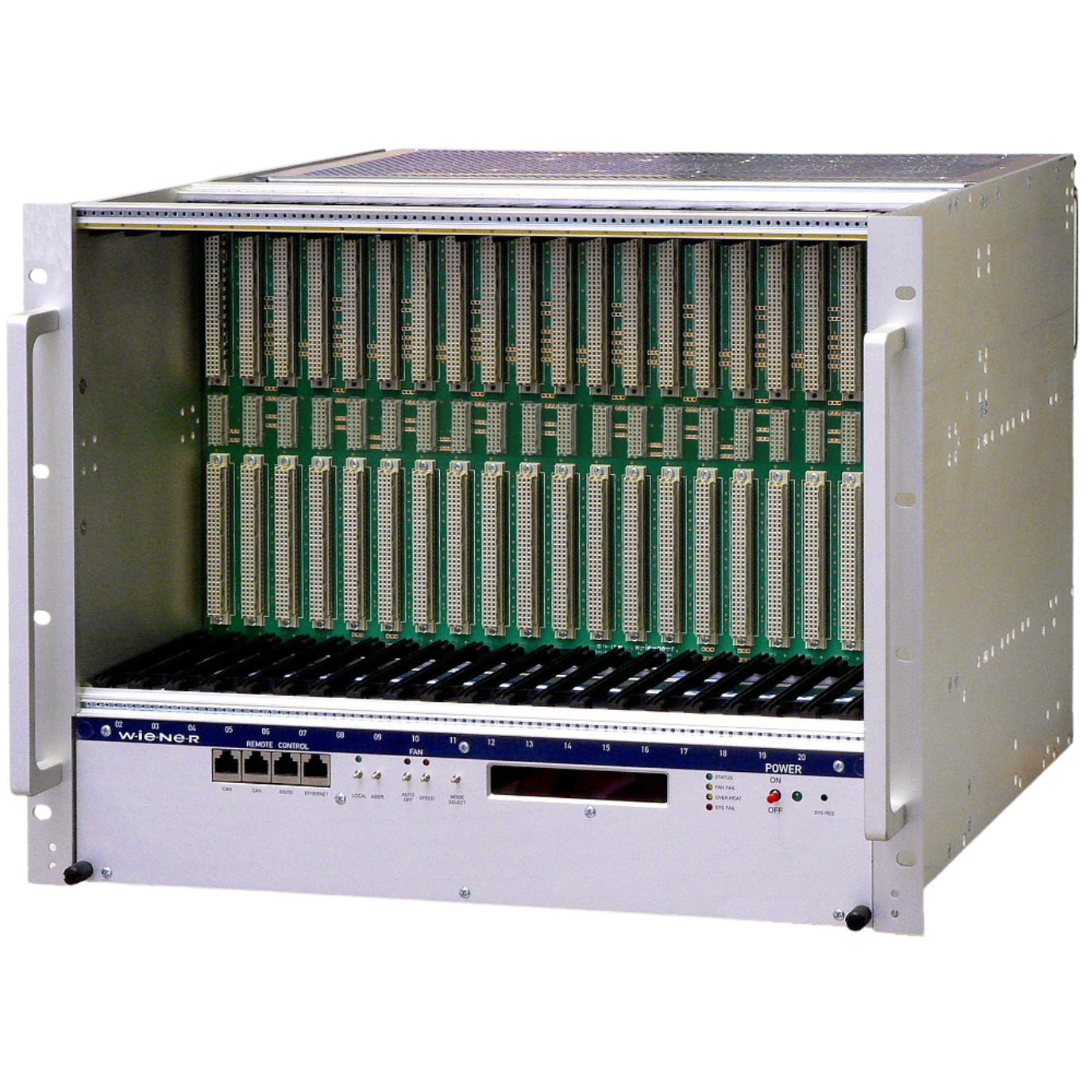

21-slot 6U VME/VME430 full-size Chassis with low-noise PSU, modular fan tray, and Ethernet monitoring.
- Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: 21 VME/VME430 (J1/Jaux/J2)
- Power Supply: up to 1000 W, low-noise microprocessor-controlled
- Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
- Interfaces: Ethernet, RS232, CAN-bus
Produktinformationen
The VME430-6021 full-size Chassis is designed for advanced VME/VME430 installations in data acquisition, beamline control, and instrumentation. It accommodates up to 21 6U × 160 mm modules in a rugged IEEE 1101.10 compliant chassis with enhanced EMC and ESD protection. The system integrates a microprocessor-controlled low-noise power supply with outstanding ripple performance and a front-mounted fan tray with intelligent speed control, ensuring optimal airflow. Remote monitoring via Ethernet, RS232, and CAN-bus enables full diagnostic and control functions. The modular architecture consisting of bin, fan tray, and PSU ensures long-term reliability.
Technische Daten
| Features | Mechanical Design: IEEE 1101.10 compliant enclosure with EMC/ESD shielding Backplane: Monolithic 21-slot VME430, 10-layer PCB, active termination Cable Management: Front/rear covers, routing ducts, rear transition access Monitoring & Control: Microprocessor-based system with LEDs and Ethernet remote interface Electrical Protection: Crowbar overvoltage, undervoltage shutdown, overload and overheat protection Compliance: CE conformity, EN 60950, ISO 380, VDE 0805, UL 1950 Operating Conditions: 0–50 °C without derating, storage –30 °C to +85 °C |
|---|
