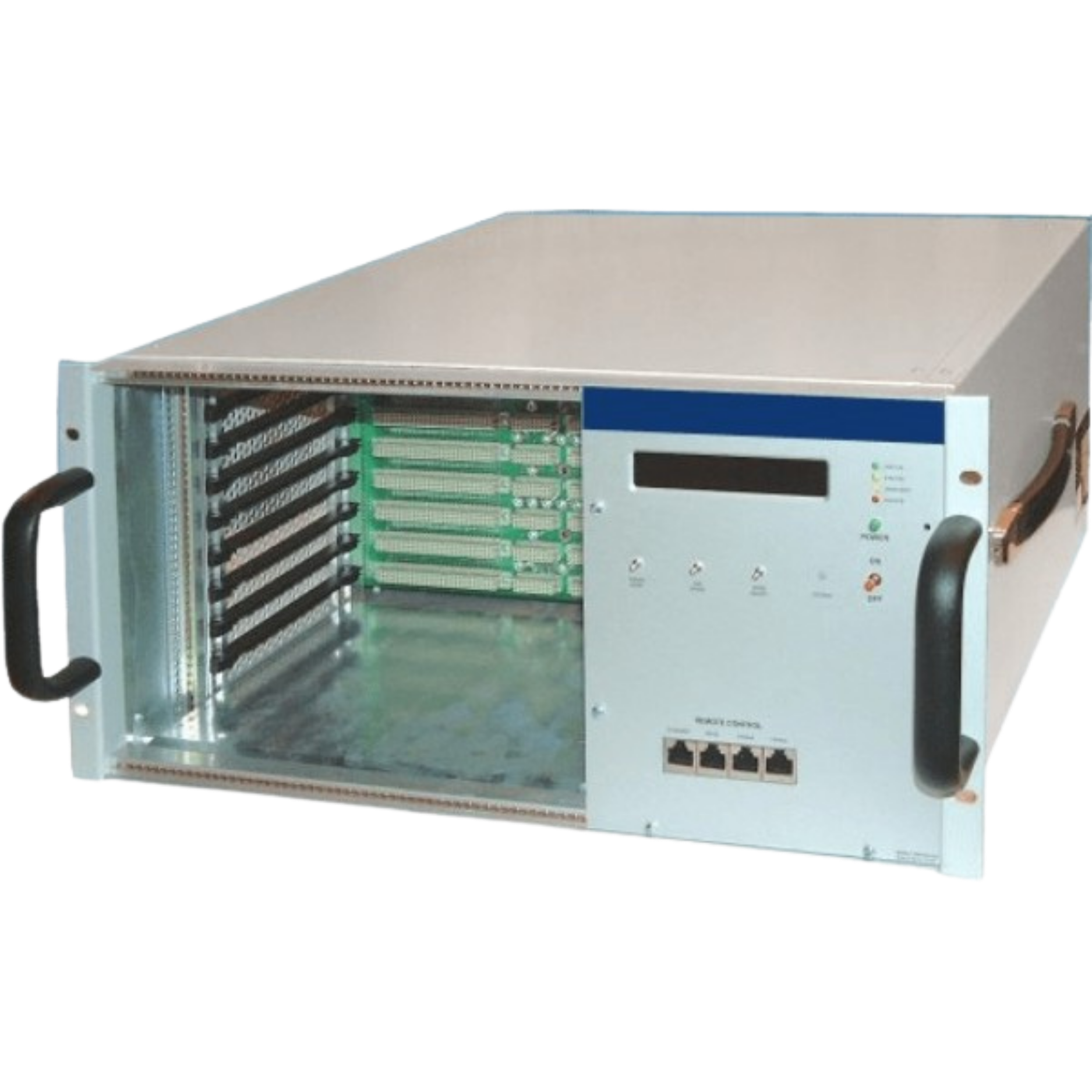

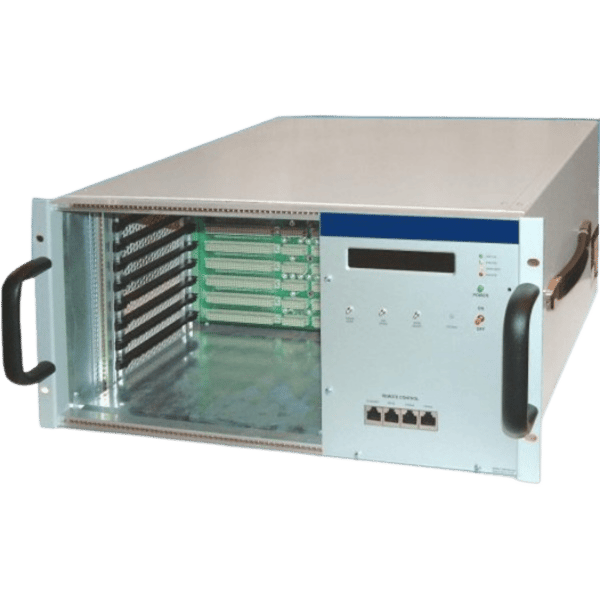

6U VME 195 Mini Chassis
Compact 9-slot 19″ VME crate with integrated low-noise switching power supply for reliable operation in laboratory and industrial applications.
- Integrated low-noise switching power supply
- Outputs: +5 V (60 A), ±12 V (6 A), +3.3 V (20 A)
- 9 slots (1 system + 8 user slots)
- 6U height, 19″ rack-mount or desktop design
- Microprocessor-controlled fan tray with speed and temperature monitoring
Produktinformationen
The VME 195 Mini Crate is a compact 19″ rack-mount or desktop chassis designed for up to 9 VME modules (1 system and 8 user slots). It features an integrated, low-noise, high-efficiency switching power supply with multiple outputs, ensuring stable performance for both digital and analog VME electronics. The chassis includes a microprocessor-controlled fan tray with automatic speed regulation and temperature monitoring. Its compact 6U form factor and rugged design make it an excellent choice for research laboratories, control systems, and industrial applications where reliable power and cooling are essential.
Technische Daten
| Features | Compliant with VME standard (ANSI/VITA) 9-slot configuration (1 system + 8 user slots) Integrated low-noise switching power supply with +5 V, ±12 V, +3.3 V outputs 6U height, available for rack-mount or desktop use Microprocessor-controlled fan tray with temperature-dependent speed control Rugged steel chassis for long-term reliability |
|---|
Downloads
Handbücher
General Safety Instruction
628.88 KB | 26. März 2026
Varianten
Varianten hier auswählen
NIM_150C_X
12 (10*) Slots, ±6 V/5 A, ±12 V/3 A, ±24 V/1.5 A, 115 VAC/0.25 A, 150 W (UEP15)
The VME 195 Mini Crate is a compact 19″ rack-mount or desktop chassis designed for up to 9 VME modules (1 system and 8 user slots). It features an integrated, low-noise, high-efficiency switching power supply with multiple outputs, ensuring stable performance for both digital and analog VME electronics. The chassis includes a microprocessor-controlled fan tray with automatic speed regulation and temperature monitoring. Its compact 6U form factor and rugged design make it an excellent choice for research laboratories, control systems, and industrial applications where reliable power and cooling are essential.
