6U cPCI Power Backplanes

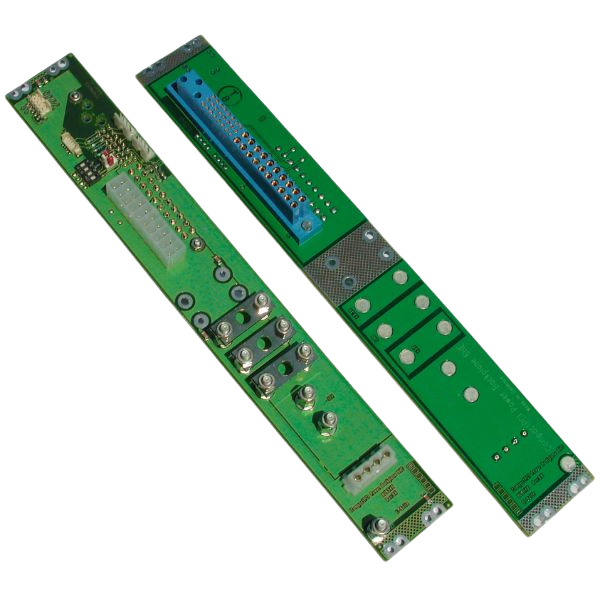

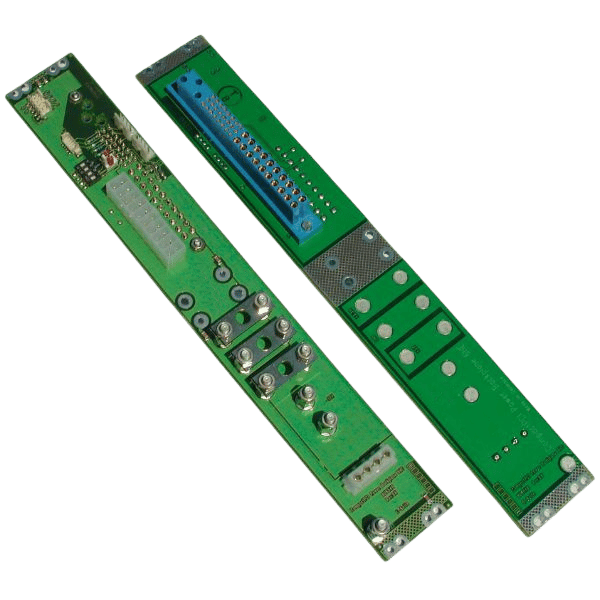

The 6U cPCI Power Backplanes are robust power distribution boards tailored to CompactPCI 6U systems.

Spezifikationen

Available in 1, 2, 3, or 4 slot versions
Uses P47 plug-in connector for power input
Compliant with PICMG 2.0 and 2.11 power interface standards
Supports parallel connection of multiple power backplanes
Rugged across –40 °C to +85 °C, high humidity tolerance
Made with FR-4, UL 94 V-0 rated material
Hand-crafted for quality and longevity

Datenblatt herunterladen

These backplanes conform to the PICMG 2.0 and 2.11 power interface standards and use a P47 plug-in connector for power input. Variants support 1 to 4 power slots, with parallel chaining capability for scalable power architectures.

The 6U cPCI Power Backplanes from Kontron HARTMANN-WIENER provide the critical power distribution infrastructure for CompactPCI systems in 6U format. They follow the PICMG 2.0 and 2.11 power interface standards, ensuring compatibility and interoperability. With a P47 plug-in power connector, these backplanes allow for clean and modular power input. The support for parallel chaining lets system designers scale power distribution across multiple backplane boards in larger rack systems. Their robust design — with wide temperature and humidity ratings and flame-retardant materials — ensures reliability in demanding industrial environments.

Eigenschaften

Features

"Form Factor: 6U height

Supported Slots: 1, 2, 3, or 4 slots

Connectors / Power Input: P47 plug-in power connector

Standards / Base Spec: PICMG 2.0, PICMG 2.11

Parallel Support: Supports parallel connection of multiple backplanes

Base Material: FR-4, UL 94 V-0

Operating Temperature: –40 °C to +85 °C

Relative Humidity: 90 %, non-condensing

Part / Variant Examples:
36L1000014: 6U, 1-slot, L1 variant, P47 connector
36L0020024: 6U, 2-slot, ECO variant, P47 connector
36L1000034: 6U, 3-slot, L1 variant
36L1000044: 6U, 4-slot, L1 variant, supports parallel chaining"

Downloads

Datasheets

6U cPCI Power Backplanes Datasheet
[ 6u-cpci-power-backplanes.pdf, 2.31 MB, Dec.18.2025 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
