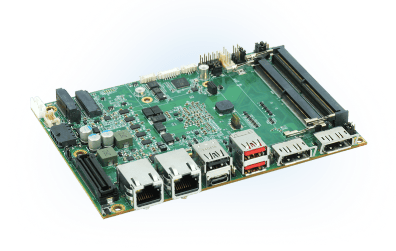

3.5"-SBC-PTL
3.5" Single Board Computer with Intel® Core™ Ultra 300 Series Processors
3.5"-SBC-RPL Datasheet
2.22 MB | 26. März 2026
Neues Produkt
3.5"-SBC-RPL
3.5" Single Board Computer with 13th Gen Intel® Core™ U-Series Processors
- Two DisplayPort connectors on rear I/O panel with 8K UHD video output support
- Time Coordinated Computing / Time Sensitive Networking for real-time control
- Additional Rear I/O expansion via board-to-board connector
- Industrial-grade operating temperature range for extreme environmental conditions
- Wide power input voltage range for more application scenarios
2x DP on rear for convenient multiple display setups
3.5"-SBC-RPL is a 3.5" single board computer powered by 13th Gen Intel® Core™ U-Series processors. Besides great performance improvement in graphics, it features 2.5 GbE with TSN (Time Sensitive Networking) capability and enhanced TPM 2.0 security / encryption support, ideal for a variety of IoT applications, such as industrial automation, retail, smart city and healthcare.
The board supports an extended board-to-board connector, providing additional I/O port expansion to fulfill possible application requirements.
3.5"-SBC-RPL is a twin product of 3.5"-SBC-RPH. The former has two DisplayPort connectors on the rear I/O panel for convenient multiple display setups; the latter has one HDMI connector and one DisplayPort connector on the rear I/O panel to apply to two mainstream video interfaces for maximum application possibilities.
Technische Daten
| Processor | Intel® Core™ i7-1365UE / Intel® Core™ i7-1365URE
(10C, 12M, 1.7 / 4.9 GHz, 12 W ← 15 W → 28 W TDP) Intel® Core™ i5-1345UE / Intel® Core™ i5-1345URE (10C, 12M, 1.4 / 4.6 GHz, 12 W ← 15 W → 28 W TDP) Intel® Core™ i3-1315UE / Intel® Core™ i3-1315URE (6C, 10M, 1.2 / 4.5 GHz, 12 W ← 15 W → 28 W TDP) Intel® U300E (5C, 8M, 1.1 / 4.3 GHz, 12 W ← 15 W → 28 W TDP) |
|---|---|
| Memory | 2x DDR5 5200 SO-DIMM up to 96 GByte |
| Graphics Controller | Intel® Iris® Xe Graphics |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 2x DP (7680 x 4320 @ 60 Hz, on rear) Quadruple Display Support (more display I/Os supported via board-to-board connector) |
| Audio CODEC | TSI 92HD91B |
Downloads
Technische Spezifikation
3.5" SBC Tech Spec Sheet
14.12 MB | 26. März 2026
Success Story
Beschleunigte Schadensregulierung nach Hagelschäden mit KI
Ähnliche Produkte & Lösungen
Neues Produkt
3.5"-SBC-RPL
3.5" Single Board Computer with 13th Gen Intel® Core™ U-Series Processors
Neues Produkt
3.5"-SBC-AML/ADN
3.5" Single Board Computer with Intel Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Varianten
Varianten hier auswählen
3.5"-SBC-RPL-0-i7-1365URE-XT
43020-XT-2006
- Intel® Core™ i7-1365URE
- Operating temperature: -40 °C ~ 85 °C
- DC In: 9 V ~ 36 V
3.5"-SBC-RPL-1-i5-1345URE-XT
43020-XT-2004
- Intel® Core™ i5-1345URE
- Operating temperature: -40 °C ~ 85 °C
- DC In: 9 V ~ 36 V
3.5"-SBC-RPL-2-i3-1315UE
43020-ST-2001
- Intel® Core™ i3-1315UE
- Operating temperature: 0 °C ~ 60 °C
- DC In: 9 V ~ 36 V
3.5"-SBC-RPL-3-U300E
43020-ST-2000
- Intel® Core™ U300E
- Operating temperature: 0 °C ~ 60 °C
- DC In: 9 V ~ 36 V
3.5"-SBC-RPL-4-i5-1345UE
43020-ST-2003
- Intel® Core™ i5-1345UE
- Operating temperature: 0 °C ~ 60 °C
- DC In: 9 V ~ 36 V
3.5"-SBC-RPL-5-i3-1315URE-XT
43020-XT-2002
- Intel® Core™ i3-1315URE
- Operating temperature: -40 °C ~ 85 °C
- DC In: 9 V ~ 36 V
3.5"-SBC-RPL-6-i7-1365UE
43020-ST-2005
- Intel® Core™ i7-1365UE
- Operating temperature: 0 °C ~ 60 °C
- DC In: 9 V ~ 36 V
Advantages of 3.5"-SBC-RPL
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
Zubehör
Zubehör hier auswählen
3.5" Extended I/O Board (3.5"-eIO-GPA-0)
1069-6159
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-1)
1069-6922
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT)
1073-9682
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C
DC In Cable, L = 230 mm
1075-3152
1x4P 3.0 pitch to EHDP-2P 5.08 pitch + JST 110 1x2P, L = 230 mm
SATA Cable with Lock
1064-2431
SATA Datenkabel mit Verriegelung 460mm
SATA Power Cable
1064-2430
SATA Spannungsversorgungskabel 460mm
COM_Port Cable
1064-2427
Serielle Schnittstellenkabel D-SUB 9P (männlich) zu SBC, 350mm
DIO Cable
1065-3137
Digital IO Kabel D-SUB-9P (Female) zu SBC, 200mm
2-Port USB 2.0 Cable
1069-7893
2x USB Type A Kabel zu SBC, mit Frontblende,270 mm
Audio Cable w/ 3x Phone Jack
1070-1245
Audio Kabel mit Line In, Line Out, Mikro, 3.5 mm Buchsen, 400 mm
Power Adapter - DC 24 V / 150 W
1074-9217
Input: AC 100 V ~ 240 V, output: DC 24 V @ 6.25 A Max. 150 W
Screw Copper Pillar Kit - 13 pcs
2x 39.6 mm Pillar, 6x 19 mm Pillar, 5x 5 mm Screw
Heatsink - Cooling Solution
1067-5535
Heatsink with Fan, 15W tdp
Heatsink for 3.5"-SBC-RPL
Al +Cu Heatsink w/ Pad, 4x M3x6L Screw
Starter Kit for 3.5"-SBC-RPL (Active)
1074-8826
1x DC In Cable, 1x SATA Data Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Cooler
Starter Kit for 3.5"-SBC-RPL (Passive)
1075-2197
1x DC In Cable, 1x SATA Data Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink
