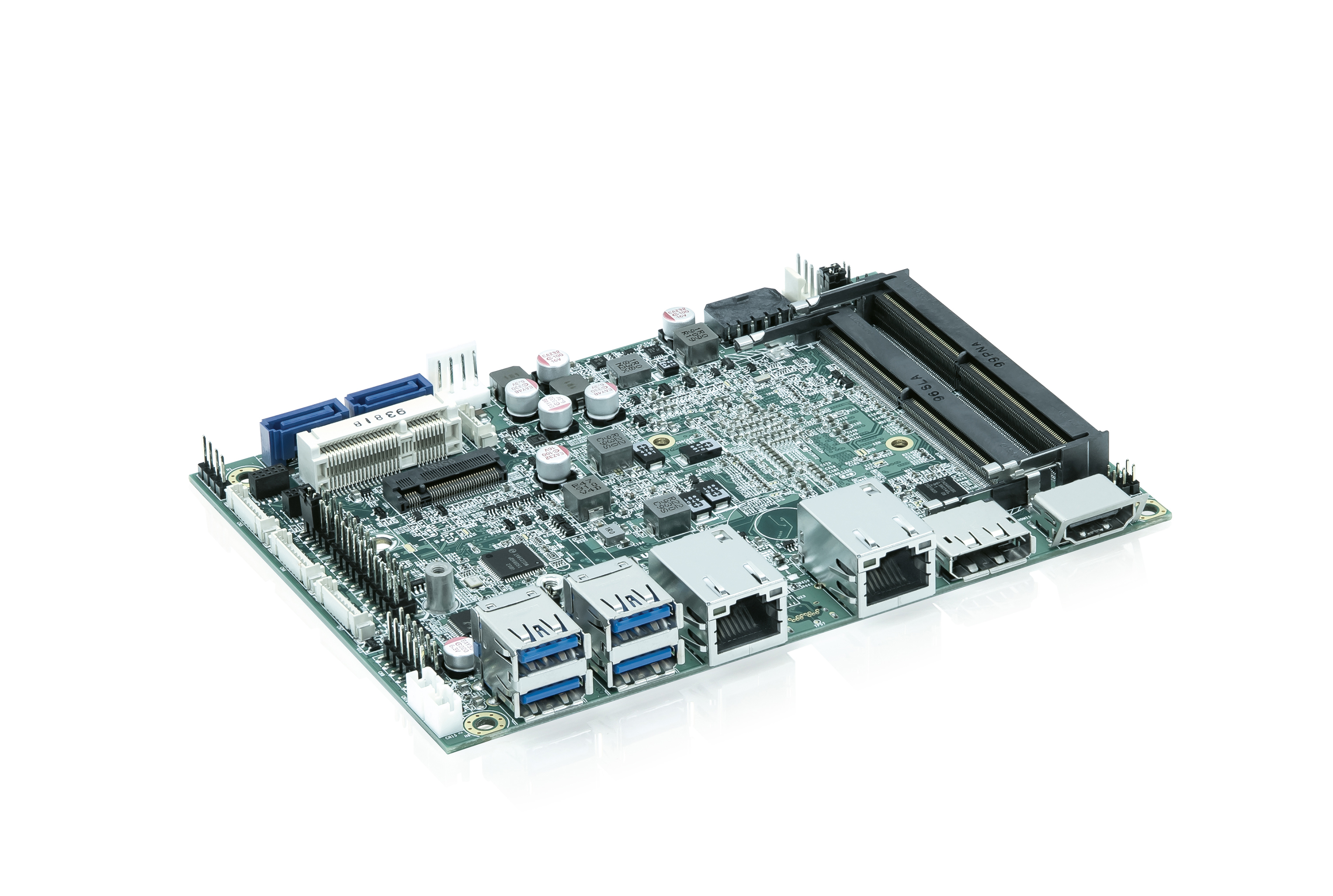

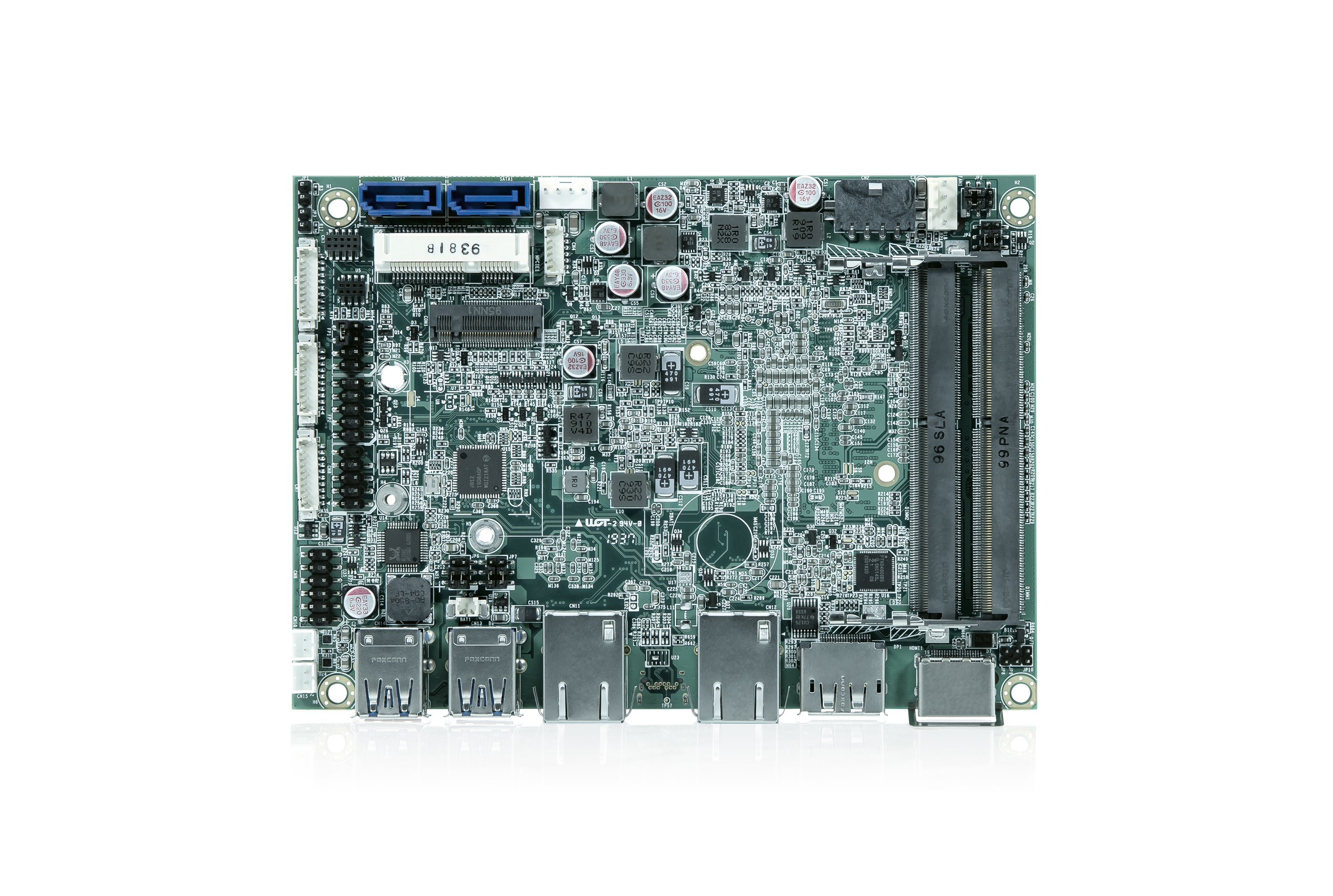

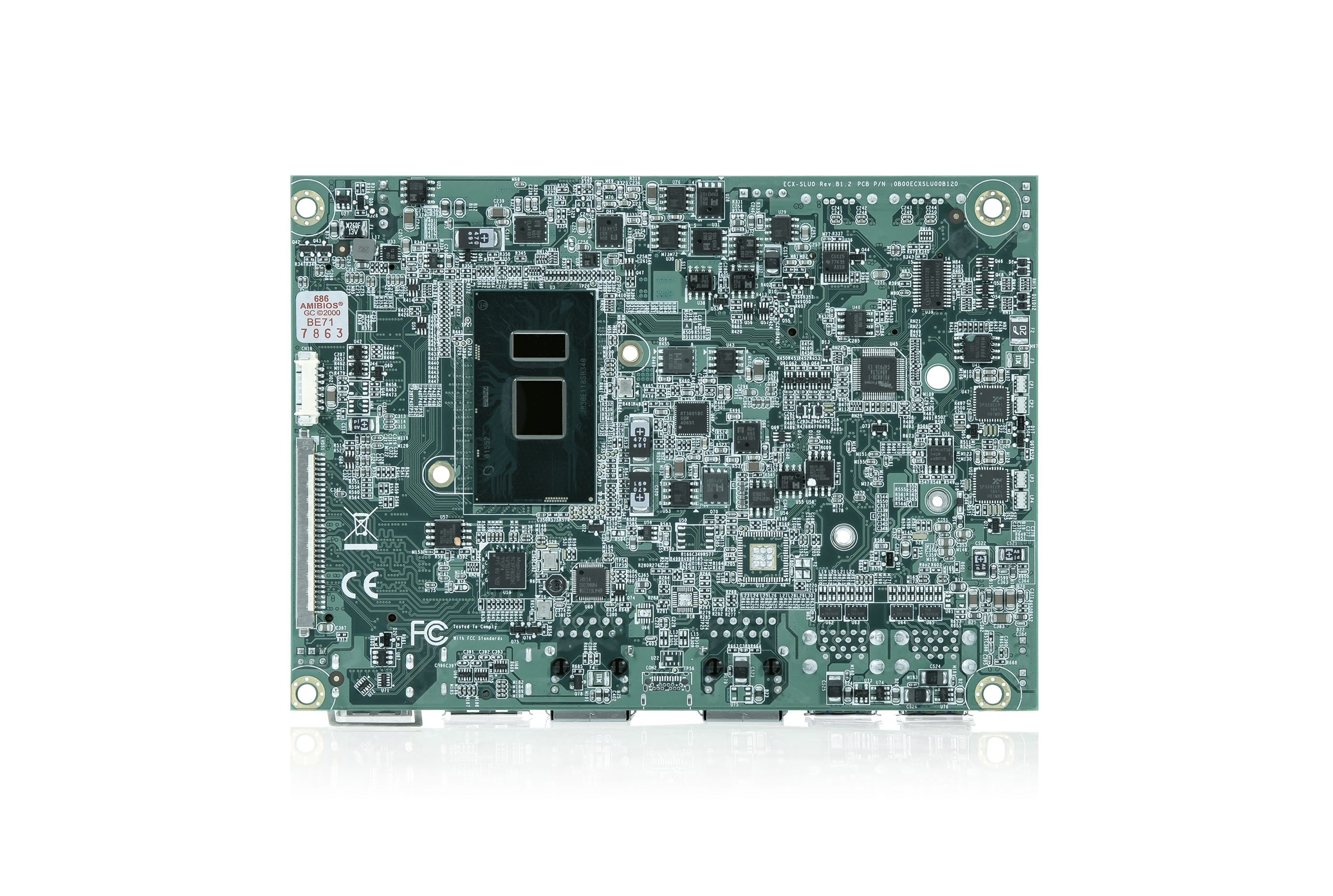

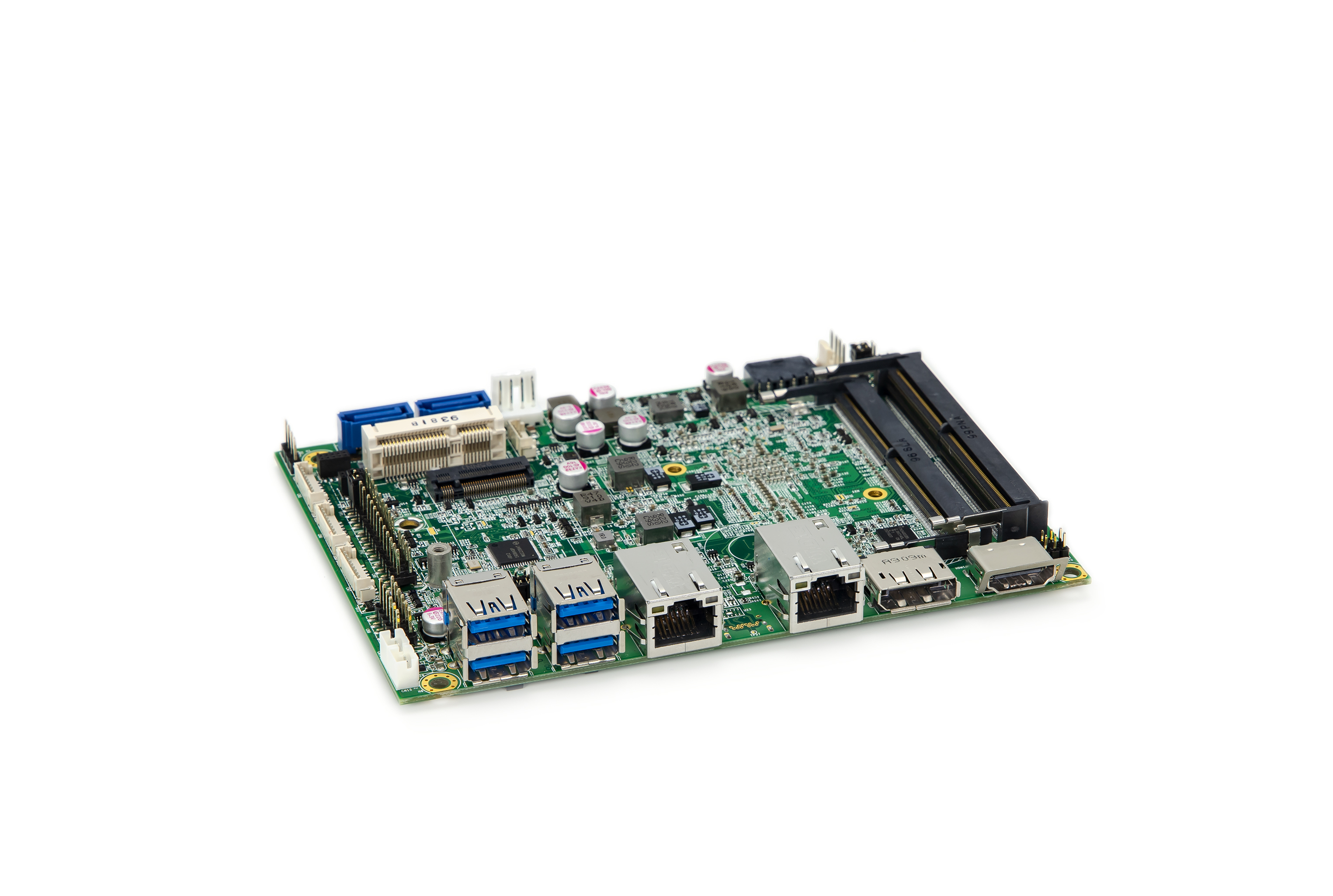

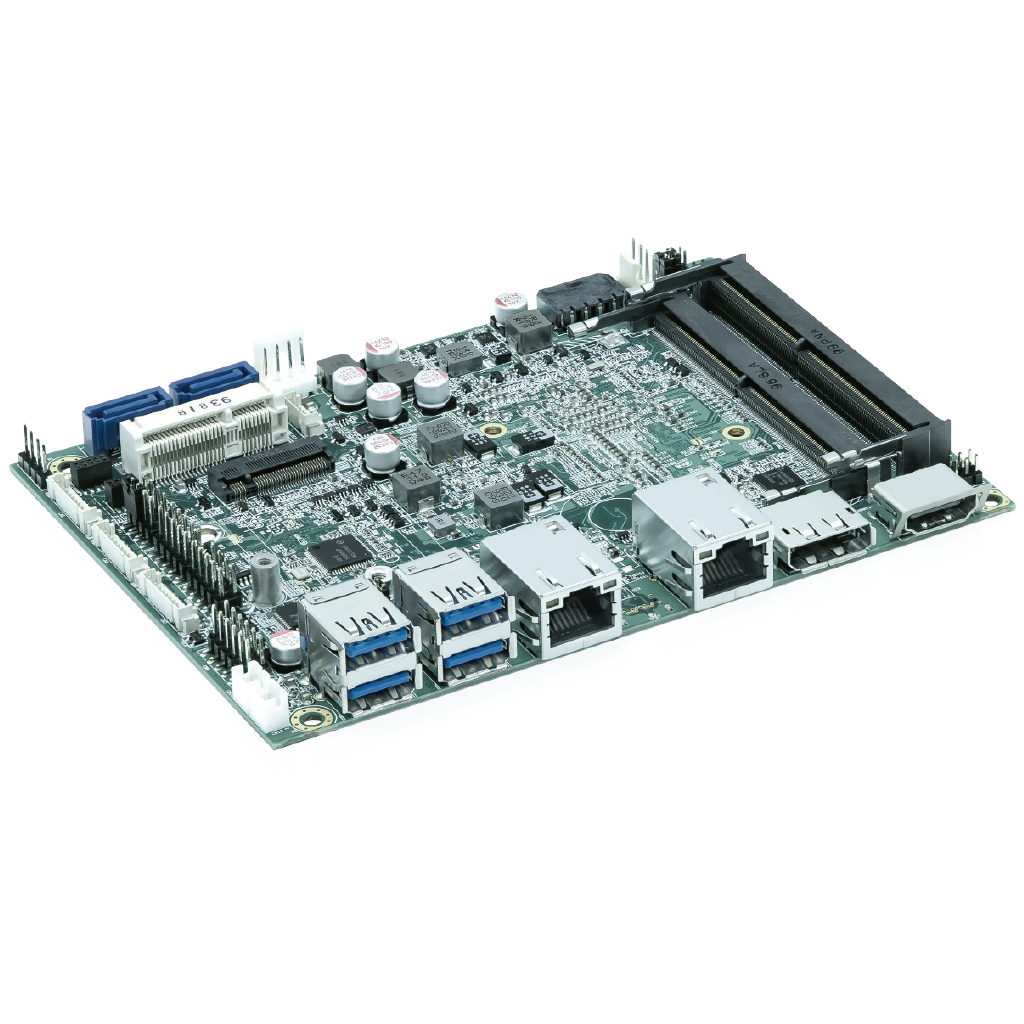

3.5"-SBC-KBL
3.5” Single Board Computer with 7th Gen Intel® Core™ / Celeron® U-Series Processors
- 1x LVDS, 1x DP, 1x HDMI 2.0 for display output
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 1, 2x USB 2.0, 2x RS232/422/485, 8x DIO for peripherals
- Up to 2x SATA 3.0 for storage
- 1x mPCIe, 1x M.2 Key B for expansion
4K Ultra HD Support
3.5''-SBC-KBL is a 3.5" single board computer based on 7th Generation Intel® Core™ / Celeron® U-Series Processors, allowing system integrators to quickly and conveniently develop a low-power 4K Ultra HD capable embedded system. With a lower power consumption of only 15 W, it can even be used to easily build a fanless system for harsh environmental conditions. Below summarizes its 3 shinning features.
Doubling read and write speeds: up to two SATA 3.0 memory sockets doubling read and write speeds.
Supporting 4K UHD resolutions: Intel® HD Graphics 620 integrated GPU along with one HDMI 2.0 supporting 4K Ultra HD resolutions.
Multi-functional integration: one M.2 Key B socket providing more expansion possibilities, such as USB, WWAN (3G, 4G …), satellite navigation (GPS …) and SSDs.
Technische Daten
| Processor | Intel® Core™ i7-7600U (Dual Core, 4M Cache, 2.80 / 3.90 GHz, FCBGA1356, 15 W TDP) Intel® Core™ i5-7300U (Dual Core, 3M Cache, 2.60 / 3.50 GHz, FCBGA1356, 15 W TDP) Intel® Core™ i3-7100U (Dual Core, 3M Cache, 2.40 GHz, FCBGA1356, 15 W TDP) Intel® Celeron® 3965U (Dual Core, 2M Cache, 2.20 GHz, FCBGA1356, 15 W TDP) |
|---|---|
| Main Memory | 2x DDR4 2133 SO-DIMM up to 32 GByte |
| Graphics Controller | Intel® HD Graphics 620 (Core™ i processor) Intel® HD Graphics 610 (Celeron® processor) |

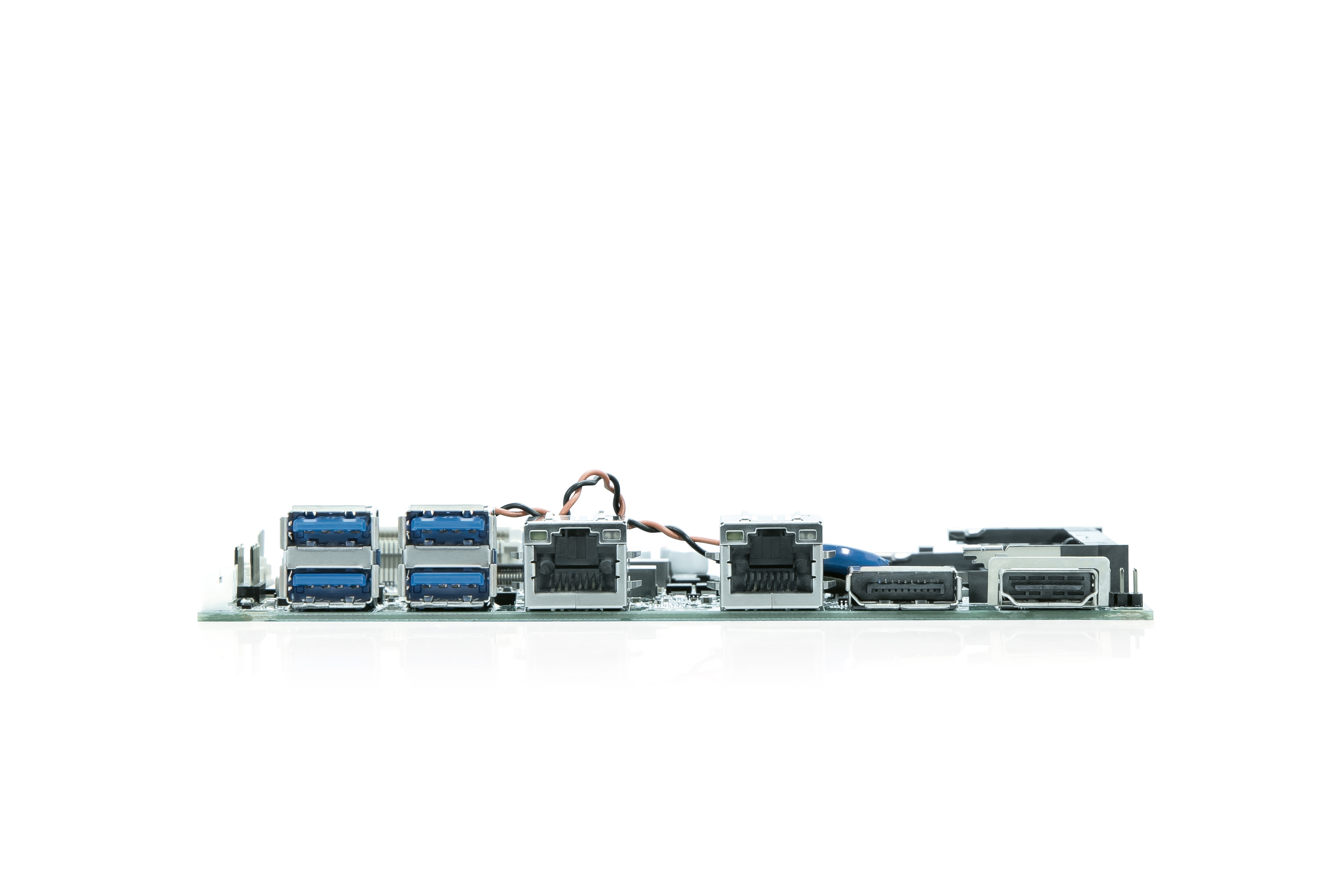

| Display | 1x LVDS (24-bit, 2-ch) 1x DP (on rear, 4096 x 2304 @ 60 Hz) 1x HDMI 2.0 (on rear, 3840 x 2160 @ 60 Hz) Triple display support |
| Audio Controller | Realtek ALC888S |
Downloads
Handbücher
General Safety Instruction
628.88 KB | 26. März 2026
3.5''-SBC-KBL Single Board Computer User Guide
1.87 MB | 26. März 2026
3.5''-SBC-KBL Single Board Quick Installation Guide
1.53 MB | 26. März 2026
3.5"-SBC Copper Pillar, Thermal Solution & eIO Installation Guide
594.85 KB | 26. März 2026
Technische Spezifikation
3.5" SBC Tech Spec Sheet
14.12 MB | 26. März 2026
Treiber
3.5''-SBC-KBL Chipset Driver (Windows)
2.72 MB | 26. März 2026
3.5''-SBC-KBL Graphics Driver (Windows)
0 B | 26. März 2026
3.5''-SBC-KBL ME Driver (Windows)
217.05 MB | 26. März 2026
3.5''-SBC-KBL HDA Driver (Windows)
242.39 MB | 26. März 2026
3.5''-SBC-KBL USB 3.0 Driver (Windows 7)
5.5 MB | 26. März 2026
3.5''-SBC-KBL Serial IO Driver (Windows)
3.53 MB | 26. März 2026
3.5''-SBC-KBL COM Patch File Driver
4.6 MB | 26. März 2026
3.5''-SBC-KBL LAN Driver (Windows)
354.82 MB | 26. März 2026
Success Story
Beschleunigte Schadensregulierung nach Hagelschäden mit KI
Use Case
3.5"-SBC-KBL/TGL Empowers a Hardness Tester to Eliminate Unwanted Measurement Tolerance
Hardness Testing Machine
Weitere Downloads
Alle weiteren Downloads (Treiber, Downloads etc.) finden Sie auf Kontrons Customer Section
Ähnliche Produkte & Lösungen
Neues Produkt
3.5"-SBC-RPL
3.5" Single Board Computer with 13th Gen Intel® Core™ U-Series Processors
Neues Produkt
3.5"-SBC-AML/ADN
3.5" Single Board Computer with Intel Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Varianten
Varianten hier auswählen
3.5"-SBC-KBL-1-i7-7600U
43014-0000-28-2
Intel® Core™ i7-7600U, 2x SATA 3.0, w/ TPM, Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-KBL-2-i5-7300U
43014-0000-26-2
Intel® Core™ i5-7300U, 2x SATA 3.0, w/ TPM, Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-KBL-3-3965U
Intel® Celeron® 3965U, 1x SATA 3.0, w/o TPM, Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-KBL-5-3965U
43014-0000-22-2
Intel® Celeron® 3965U, 2x SATA 3.0, w/ TPM, Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-KBL-E-i3-7100U
43014-0000-24-2
Intel® Core™ i3-7100U, 2x SATA 3.0, w/ TPM, Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-KBL-1-i7-7600U-ET
43014-0000-28-2EXT
Intel® Core™ i7-7600U, 2x SATA 3.0, w/ TPM, Operating Temperature: -20 °C ~ 70 °C
3.5"-SBC-KBL-2-i5-7300U-ET
43014-0000-26-2EXT
Intel® Core™ i5-7300U, 2x SATA 3.0, w/ TPM, Operating Temperature: -20 °C ~ 70 °C
Advantages of Kontron Single Board Computers
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
Zubehör
Zubehör hier auswählen
COM_Port Cable
1064-2427
Serielle Schnittstellenkabel D-SUB 9P (männlich) zu SBC, 350mm
DIO Cable
1065-3137
Digital IO Kabel D-SUB-9P (Female) zu SBC, 200mm

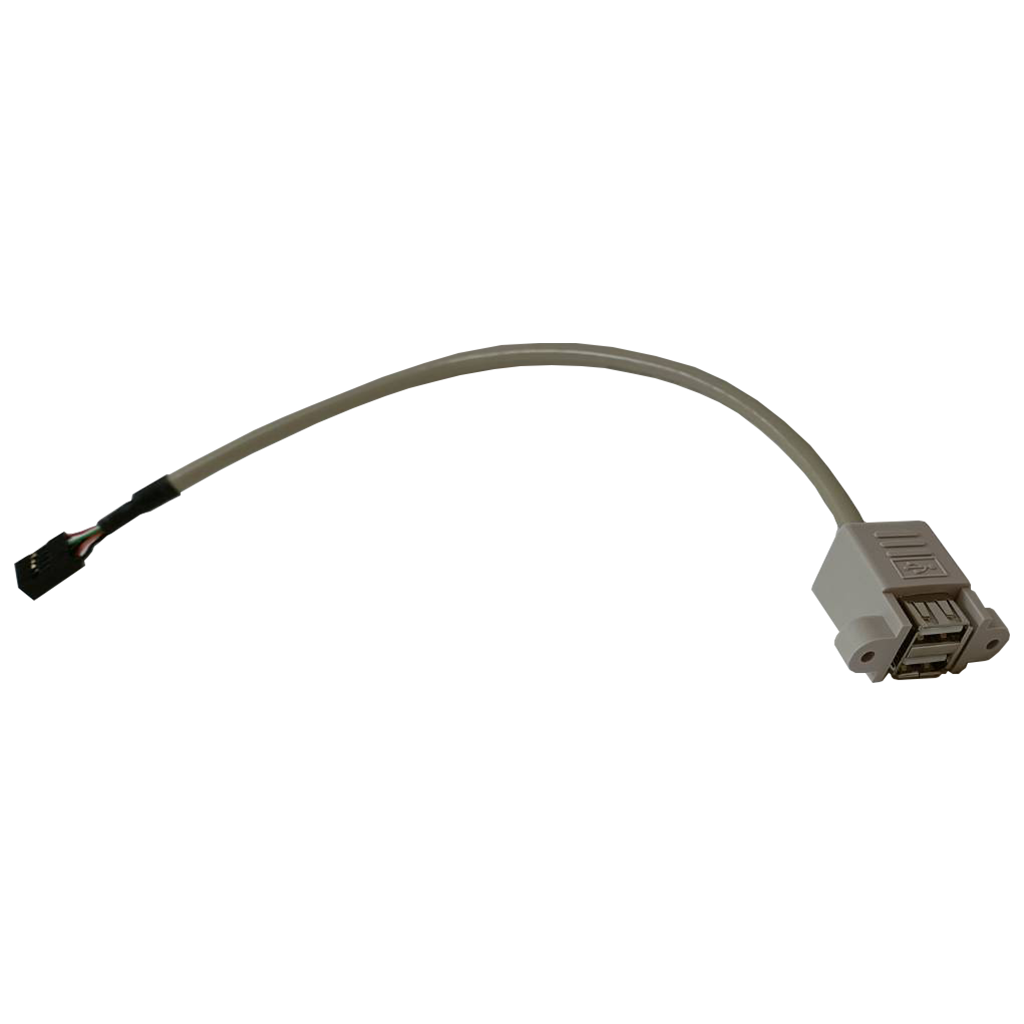

2 Ports USB 2.0 Cable
1064-2429
USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm
SATA Cable with Lock
1064-2431
SATA Datenkabel mit Verriegelung 460mm

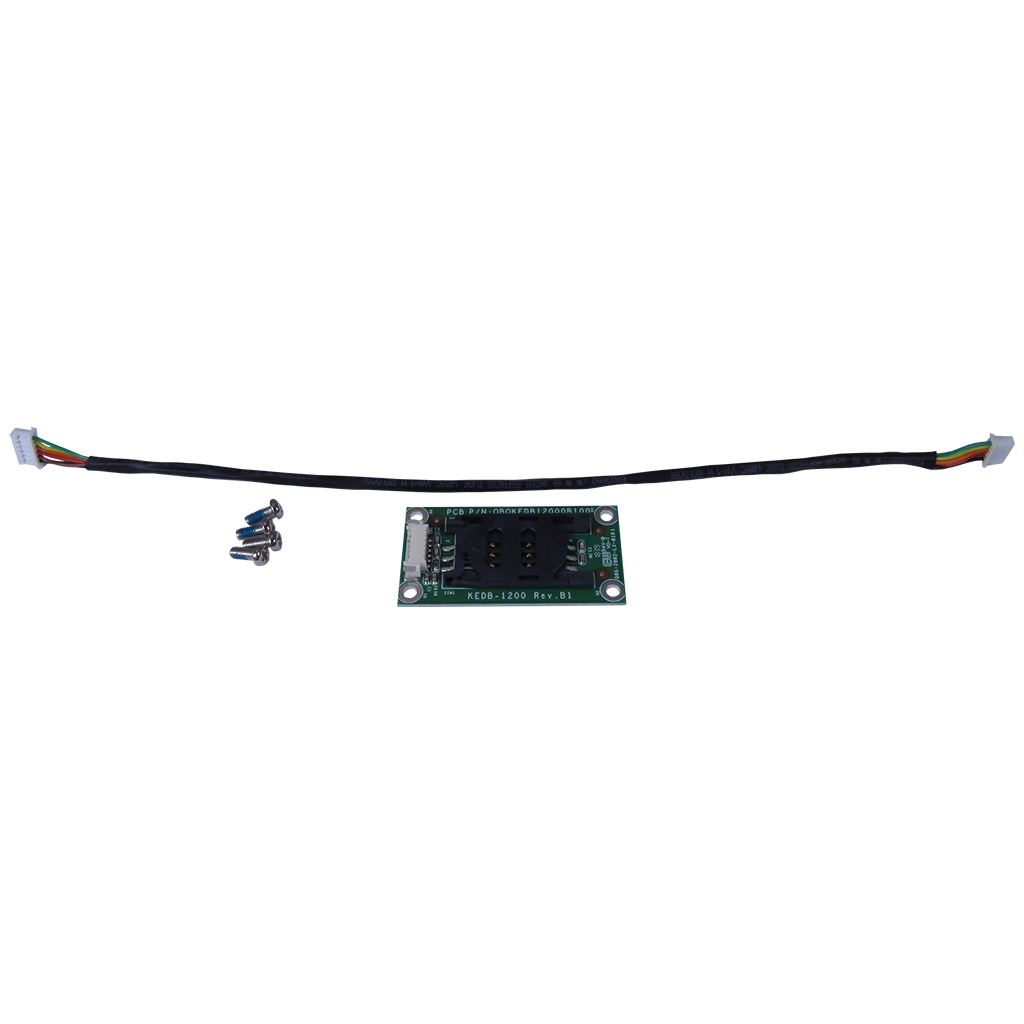

SIM Card Holder Kit
1064-2434
with SIM card holder x1, cable x1,and screws x4

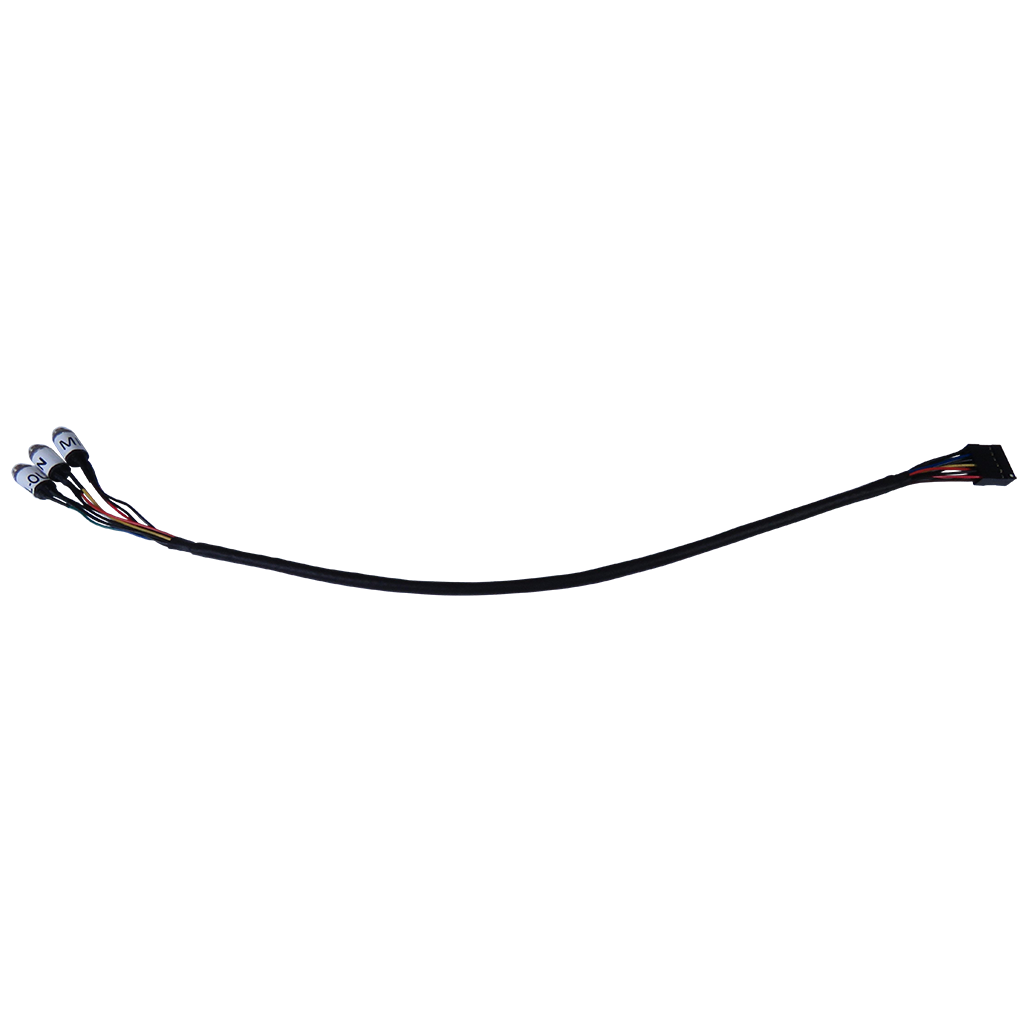

Audio Cable
1064-2432
Audio Kabel 3 Buchsen 3.5mm Line-In/Line-Out/Mikro, 350 mm
DC Jack Cable
1064-2433
Spannungseingang für 3.5" SBC in Verbindung mit AC/DC Konverter 1069-3055

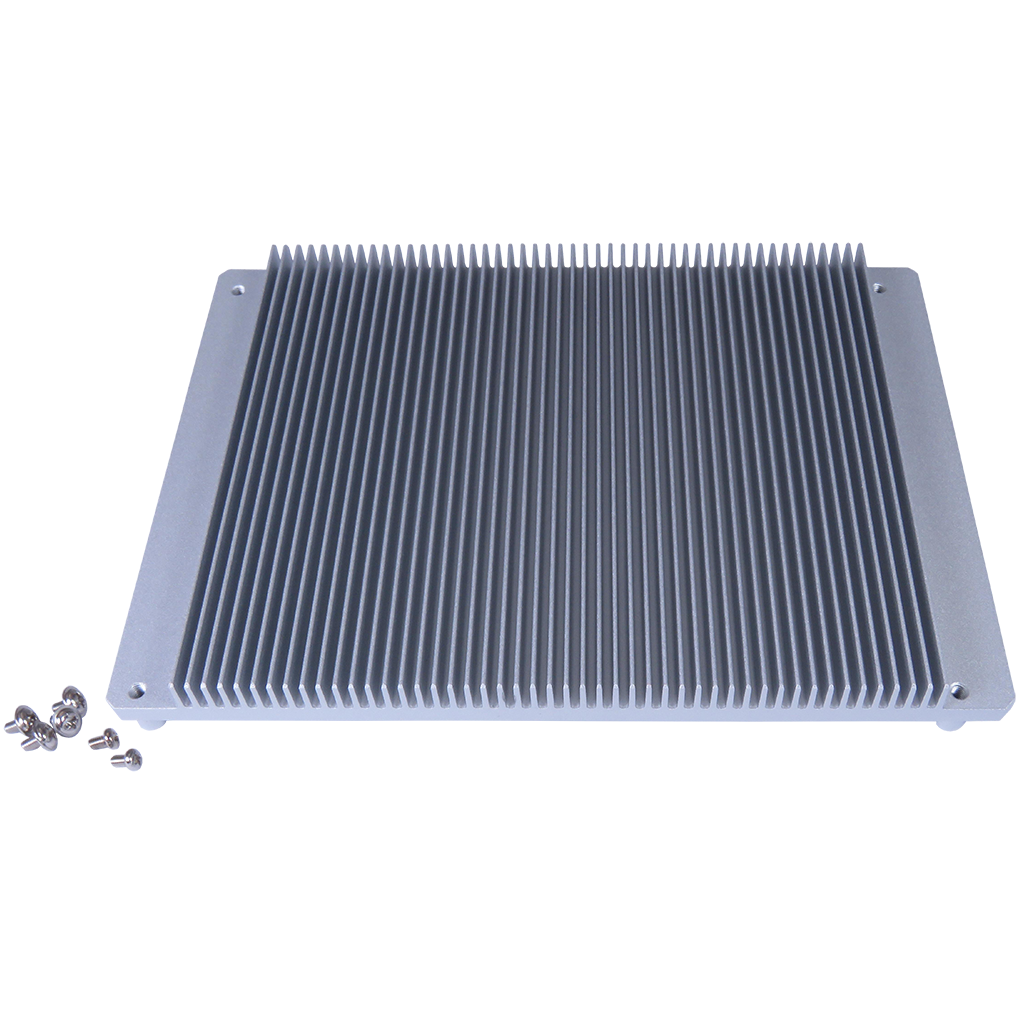

Heatsink
1065-3232
Heatsink 148×105×15.8mm mental AL6063 T5 RoHS, T725 Pad 35x15mm mit 4 Schrauben. Geeignet für 3.5"-SBC-KBL-U/ 3.5"-SBC-SKL-U Series, TDP 15W
