Neues Produkt

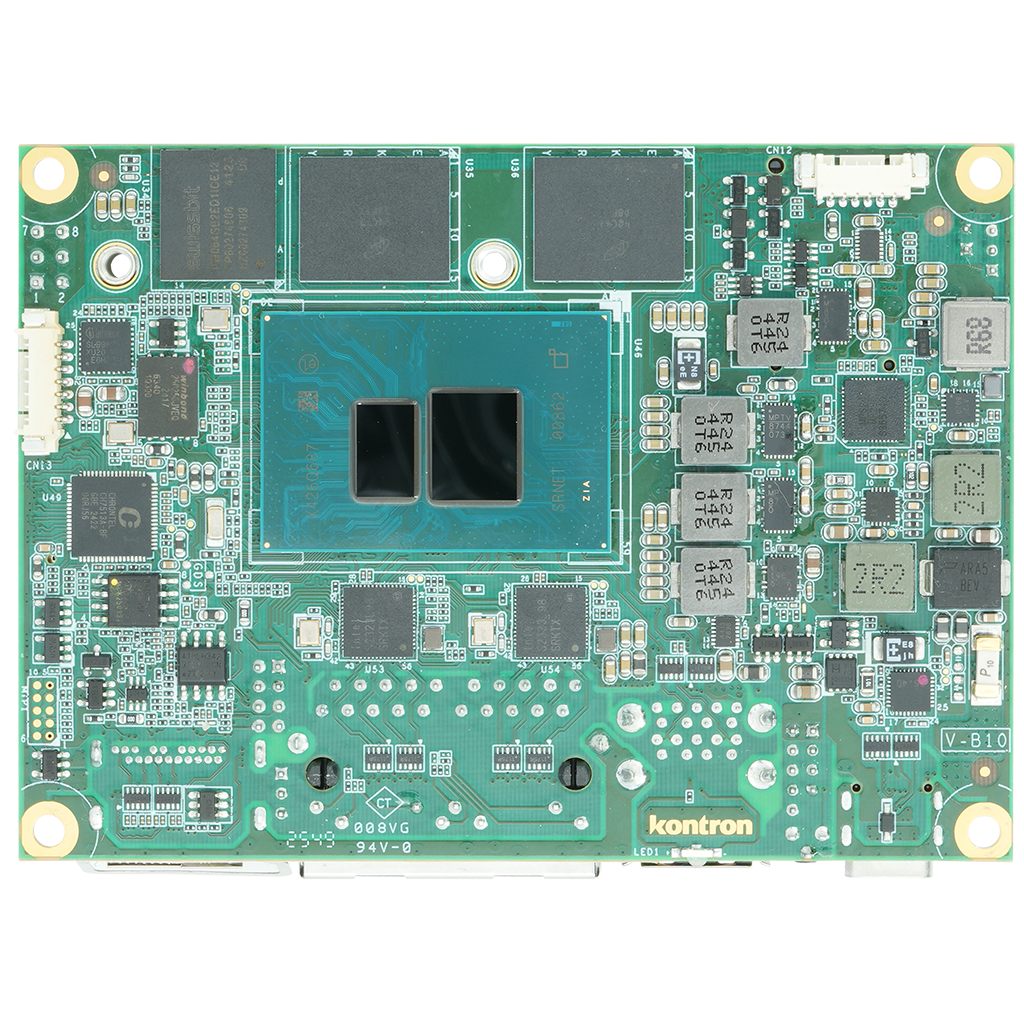

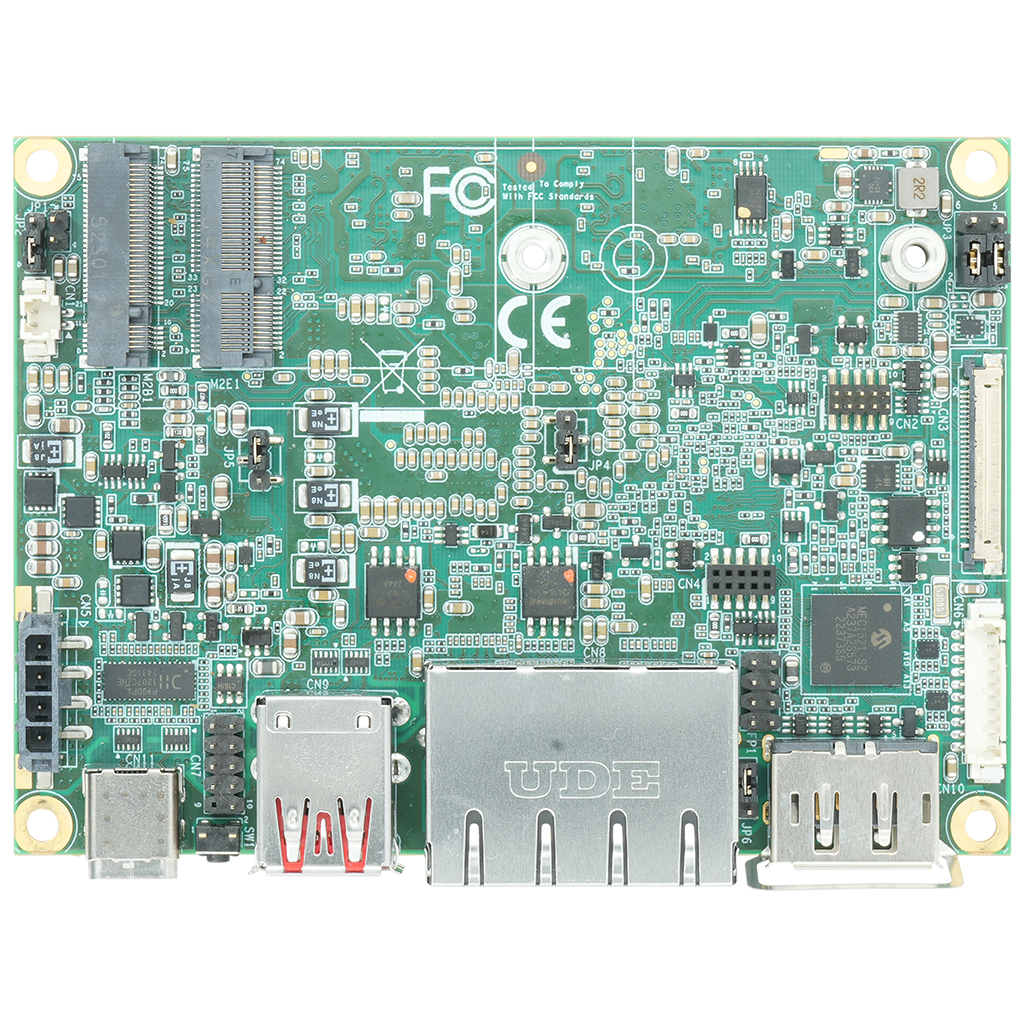

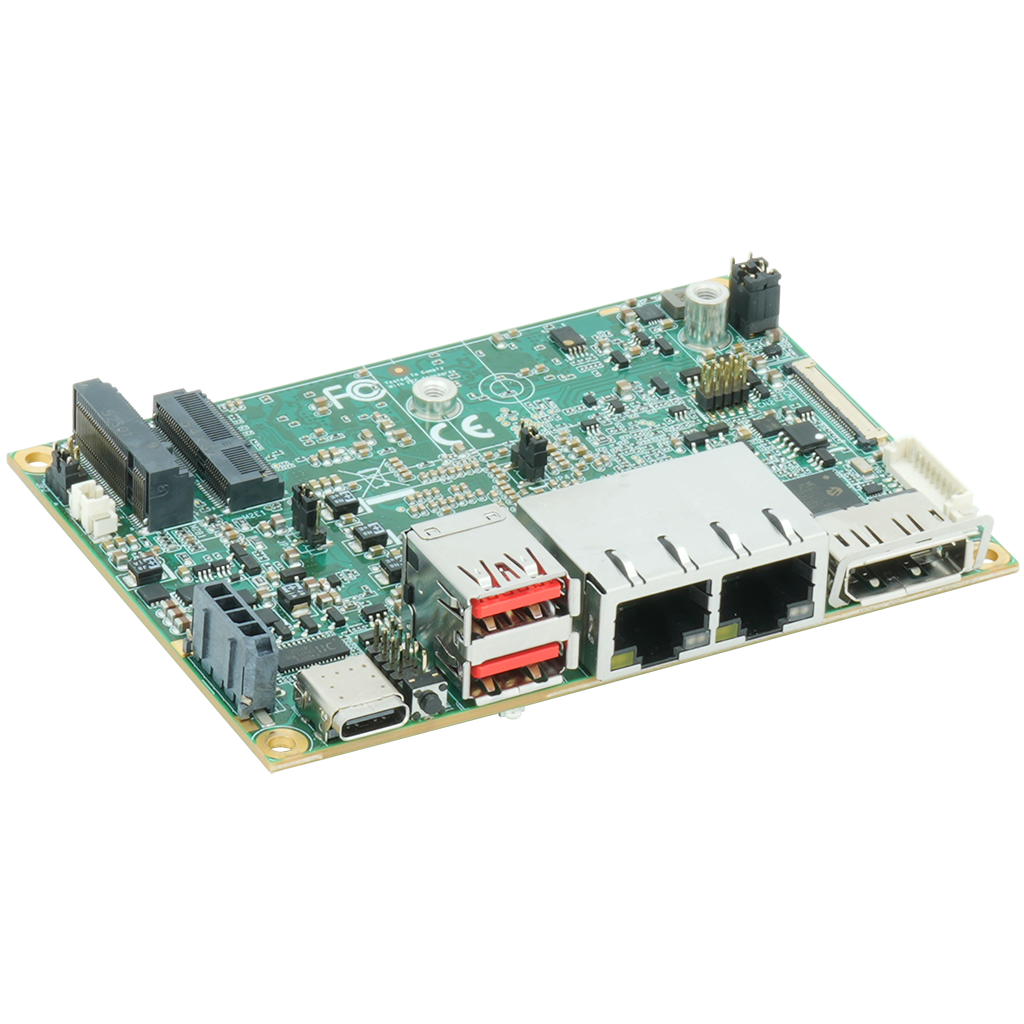

2.5"-SBC-AMV/ADV
2.5" (pITX) Single Board Computer with Intel® Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Ideal for industrial display systems & projects requiring LVDS panels
2.5"-SBC-AMV/ADV is a 2.5" single board computer in Pico-ITX form factor powered by Intel® Atom® x7000RE Series (codenamed Amston Lake), Intel® Atom® x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors integrated with Intel® UHD Graphics Gen12 as well as next-gen high-speed LPDDR5 memory. In addition, it features a LVDS and eDP combo connector. Thus, it can deliver upgraded performance, enhanced media transcoding and faster AI inference, making it an ideal baseboard to be integrated into an all-in-one solution for industrial display systems or projects requiring LVDS panels.
2.5"-SBC-AMV/ADV has two other similar products designed for other applications:

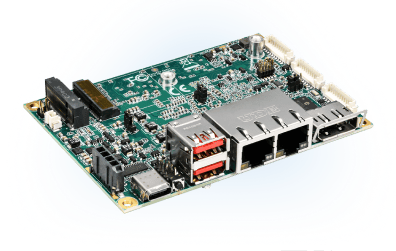

- 2.5"-SBC-AML/ADN ideal for industrial manufacturing and real-time control applications
- 2.5"-SBC-AMH/ADH ideal for retail, commercial and audio-enabled applications
Technische Daten
| Processor | [Standard] Intel® Atom® x7433RE (4C, 6M, 1.5/3.4GHz, 9W) Intel® Atom® x7835RE (8C, 6M, 1.3/3.6GHz, 12W) Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8GHz, 9←15W) [Project] Intel® Atom® x7211RE (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7213RE (2C, 6M, 2.0/3.4GHz, 9W) Intel® Atom® x7211E (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7213E (2C, 6M, 1.7/3.2GHz, 10W) Intel® Atom® x7425E (4C, 6M, 1.5/3.4GHz, 12W) Intel® N50 (2C 6M, 1.0/3.4GHz, 6W) Intel® N97 (4C, 6M, 2.0/3.6GHz, 12W) Intel® N200 (4C, 6M, 1.0/3.7GHz, 6W) |
|---|---|
| Main Memory | 4 GByte / 8 GByte / 16 GByte LPDDR5 4800 memory down |
| Graphics Controller | Intel® UHD Graphics Gen12 |

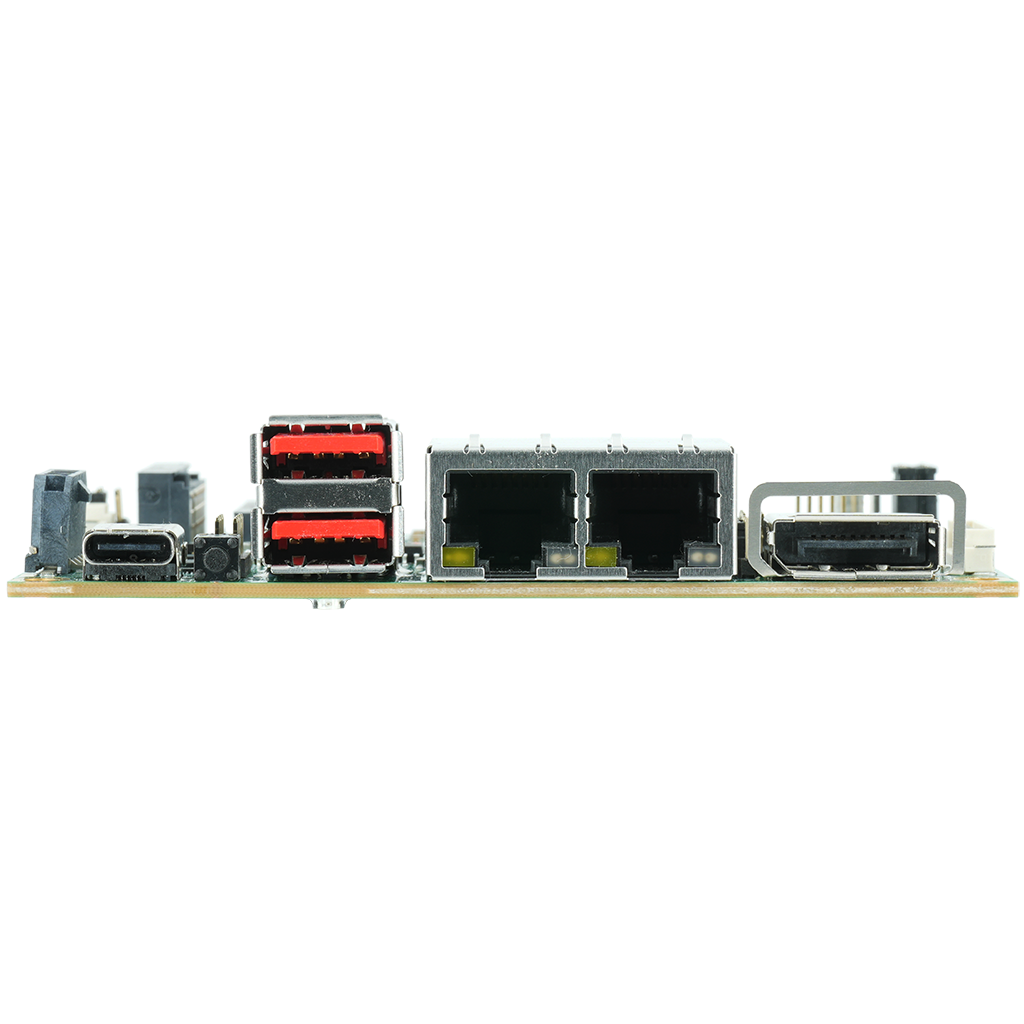

| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) / eDP (4096 x 2160 @ 60 Hz) 2x DP (4096 x 2160 @ 60 Hz, 1x Full-size DP on rear, 1x DP USB-C on rear) Triple Display |
| Ethernet Controller | Intel® I226-V/IT |
Ähnliche Produkte & Lösungen
Demnächst verfügbar

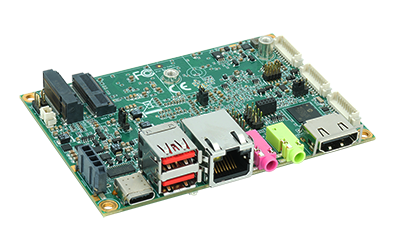

2.5"-SBC-AMH/ADH
2.5" (pITX) Single Board Computer with Intel® Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Varianten
Varianten hier auswählen
2.5"-SBC-AMV-0-x7835RE-XT
TBD
- Intel® Atom® x7835RE
- Intel® I226-IT LAN Chip
- 16 GByte LPDDR5
- 128 GByte eMMC
- Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-AMV-1-x7433RE-XT
TBD
- Intel® Atom® x7433RE
- Intel® I226-IT LAN Chip
- 8 GByte LPDDR5
- 128 GByte eMMC
- Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-ADV-0-i3-N305
TBD
- Intel® Core™ i3-N305
- Intel® I226-V LAN Chip
- 8 GByte LPDDR5
- 64 GByte eMMC
- Operating Temperature: 0 °C ~ 60 °C
Advantages of Kontron Single Board Computers
Better overall specifications then competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
