MTCA.4 1000W Power Supply
0400.TCA01
1000W low noise and ripple / high power density power supply in double height / double width form factor

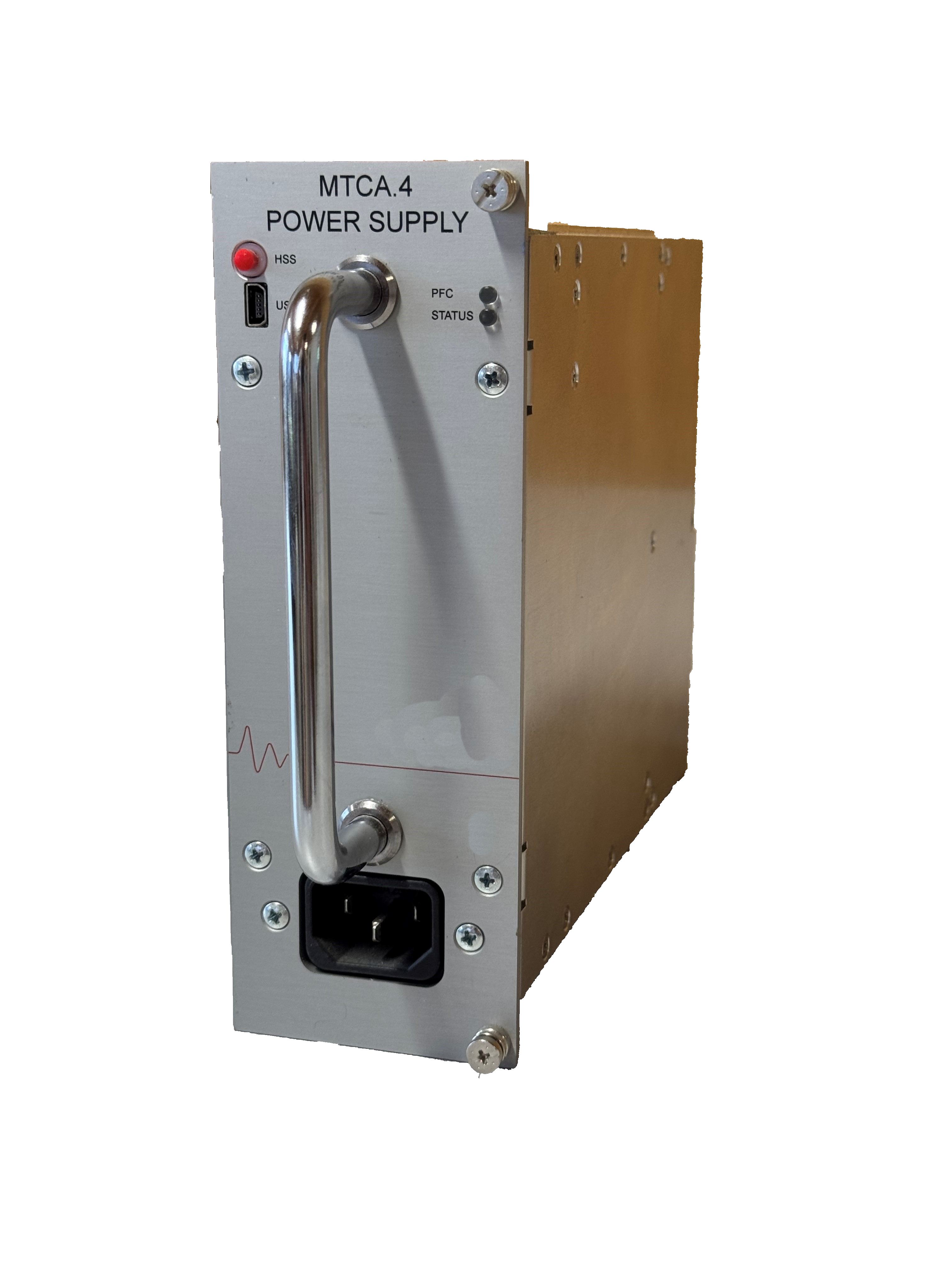

MTCA.4 1000W Power Supply
The MTCA.4 1000W Power Supply is a low-noise, digitally controlled MicroTCA.4 power module delivering 1000 W total output, designed for noise-sensitive scientific and industrial applications.
- 16x 12 V/8.4 A payload outputs (max. 1000 W total)
- 16x 3.3 V/0.2 A management outputs
- Output ripple (12 V): < 10 mVpp / < 5 mVpp / < 1 mVRMS
- Output ripple (3.3 V): < 12 mVpp / < 10 mVpp / < 5 mVRMS
- Line regulation (12 V): < 3 mV over 100–253 VAC
产品信息
The MTCA.4 1000W Power Supply is a high-performance power module designed for MicroTCA.4 systems in scientific and industrial applications. Featuring ultra-low ripple and noise, the unit delivers 1000 W total output power for 12 V payload and 3.3 V management voltages. The integrated digital power controller ensures precise monitoring and protection across up to 16 slots, making it ideal for noise-sensitive environments such as beamline control, data acquisition, and signal processing.
The MTCA.4 power supply offers 1000 W of total output with exceptionally low noise and ripple, specifically developed for MicroTCA.4 systems. It integrates a digital power controller, advanced switching technology, and a robust mechanical form factor (double height/double width), making it suitable for scientific and industrial applications with strict power integrity requirements.
技术数据
| Compliance | Compliant with PICMG MicroTCA.4 standard Meets EMC standards (EN 61000-x and EN 55022 Class B) |
|---|---|
| Power & Efficiency | Total output power: 1000 W Wide range input: 92–265 VAC, 47–63 Hz Ultra-low output ripple: < 10 mVpp (12 V), < 12 mVpp (3.3 V) Zero-switching low-noise-cavity technology No derating up to 40 °C |
| Protection | Integrated MTCA.4 Digital Power Controller with system-wide protection Thermal protection with 5 thermal switches Short/long-time current limit on 3.3 V output (8 A / 4 A) |
| Control & Monitoring | USB interface for system integration Full digital monitoring of AC input, PFC, DC/DC conversion, and output |
| Design & Components | Double height / double width power module Integrated AC mains filter and switching-mode AC/DC converter |
