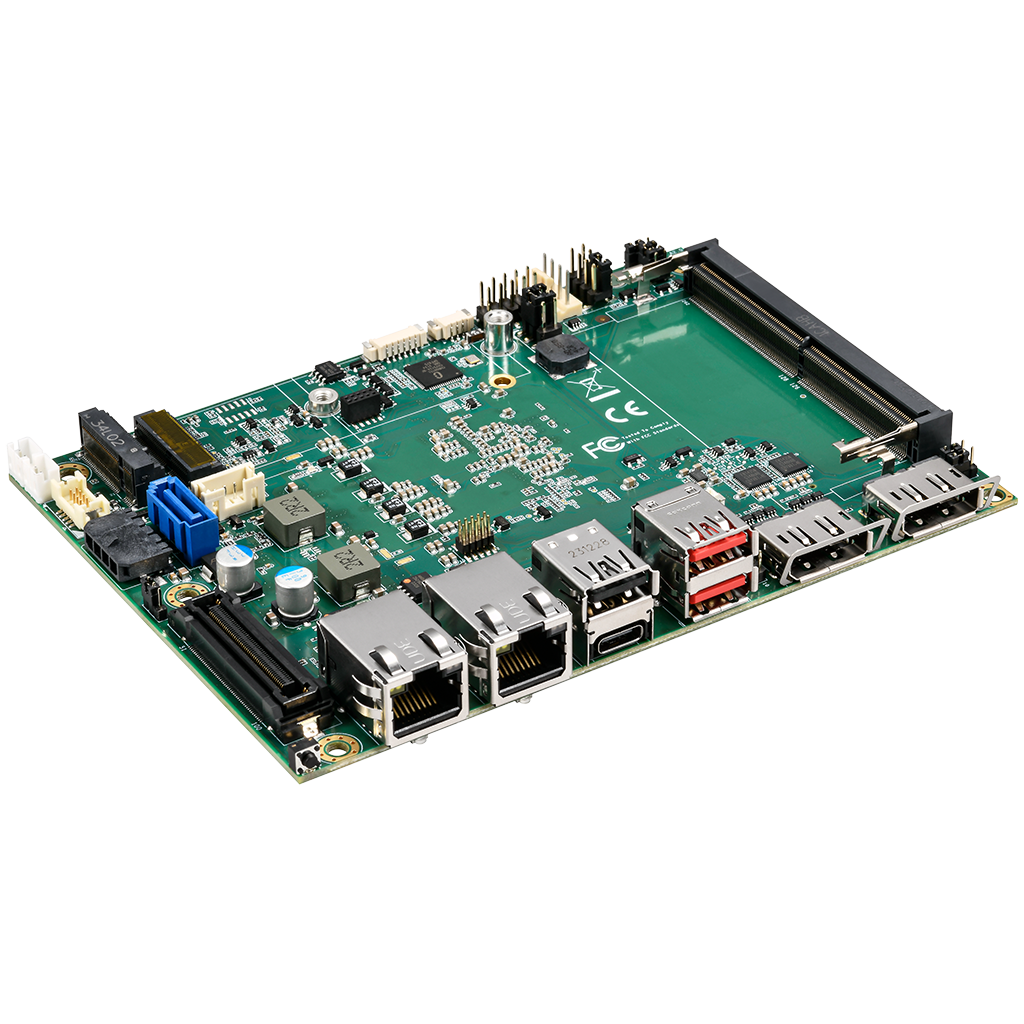

3.5"-SBC-AML/ADN
3.5" Single Board Computer with Intel Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
3.5"-SBC-AML/ADN Datasheet
2.04 MB | 2026年3月26日
新品
3.5"-SBC-AML/ADN
3.5" Single Board Computer with Intel Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
- Two DisplayPort connectors on rear I/O panel
- Upgraded processing and graphics performance + faster AI inference capability
- Additional Rear I/O expansion via board-to-board connector
- DP Alt Mode over USB-C support to carry video / audio, data & power over a single port
- Hardware-based security for data protection and reliable authentication
2x DP on rear for convenient multiple display setups
3.5"-SBC-AML/ADN is a 3.5" single board computer powered by Intel Atom® x7000(R)E Series (codenamed Amston Lake), Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors with integrated Intel® UHD Graphics Gen12 as well as support for a next-gen high-speed DDR5 memory. Thus, it can deliver upgraded performance, enhanced media transcoding and faster AI inference, making it an ideal baseboard to be integrated into a compact IoT edge system or an all-in-one solution for a variety of applications, such as smart retail, industrial automation, healthcare, video processing and offi ce automation.
3.5"-SBC-AML/ADN is a twin product of 3.5"-SBC-AMH/ADH. The former has two DisplayPort connectors on the rear I/O panel for convenient multiple display setups; the latter has one HDMI connector and one DisplayPort connector on the rear I/O panel to apply to two mainstream video interfaces for maximum application possibilities.
技术数据
| Processor | [Standard] Intel® Atom® x7211RE (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7433RE (4C, 6M, 1.5/3.4GHz, 9W) Intel® Atom® x7835RE (8C, 6M, 1.3/3.6GHz, 12W) Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8GHz, 9←15W) Intel® N97 (4C, 6M, 2.0/3.6GHz, 12W) [Project] Intel® Atom® x7213RE (2C, 6M, 2.0/3.4GHz, 9W) Intel® Atom® x7211E (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7213E (2C, 6M, 1.7/3.2GHz, 10W) Intel® Atom® x7425E (4C, 6M, 1.5/3.4GHz, 12W) Intel® N50 (2C 6M, 1.0/3.4GHz, 6W) Intel® N200 (4C, 6M, 1.0/3.7GHz, 6W) |
|---|---|
| Main Memory | 1x DDR5 4800 SO-DIMM up to 16 GByte |
| Graphics Controller | Intel® UHD Graphics Gen12 |
| Display | Intel® UHD Graphics Gen12 1x LVDS / eDP (24-bit, 2-ch, 1920 x 1200 @ 60 Hz / 4096 x 2160 @ 60 Hz) 3x DP (4096 x 2160 @ 60 Hz, 2x Full-size DP on rear, 1x DP USB-C on rear) Triple Display Support |
| Audio CODEC | TSI 92HD91B |
下载
相关产品与解决方案
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
型号
在此处选择型号
3.5"-SBC-ADN-0-N97
43019-ST-2000
- Intel® N97
- Intel® I226-V
- Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-ADN-3-i3-N305
43019-ST-2001
- Intel® Core™ i3-N305
- Intel® I226-V
- Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-AML-0-x7211RE-XT
43019-XT-2004
- Intel® Atom® x7211RE
- Intel® I226-IT
- Operating Temperature: -40 °C ~ 85 °C
3.5"-SBC-AML-1-x7433RE-XT
43019-XT-2003
- Intel® Atom® x7433RE
- Intel® I226-IT
- Operating Temperature: -40 °C ~ 85 °C
3.5"-SBC-AML-2-x7835RE-XT
43019-XT-2002
- Intel® Atom® x7835RE
- Intel® I226-IT
- Operating Temperature: -40 °C ~ 85 °C
Advantages of 3.5"-SBC-AML/ADN
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
配件
在此处选择配件
3.5" Extended I/O Board (3.5"-eIO-GPA-0)
1069-6159
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-1)
1069-6922
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT)
1073-9682
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C
DC Jack Cable
1064-2433
2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm <br>Part No.: 0C5020000004220L</br>
SATA Cable with Lock
1064-2431
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm
SATA Power Cable
1064-2430
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
COM_Port Cable
1064-2427
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable
1065-3137
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2-Port USB 2.0 Cable
1069-7893
2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm
Audio Cable w/ 3x Phone Jack
1070-1245
HRS DF13-10DS-1.25C 1.25 pitch to PJ-2509CTPC-5-L (3.5 mm phone jack) x3, L = 400 mm
AC to DC Power Adapter (12 V)
1069-3055
Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W
Screw Copper Pillar Kit - 12 pcs
4x 39.6 mm pillar, 3x 19 mm pillar, 4x 15 mm screw, 1x 5 mm screw
Heatsink - 3.5"-SBC-EKL(J/N)/AML/ADN
1070-1238
Heatsink w/ Thermal Pad, 2x M3x6 screw
3.5"-SBC-EKL(N/J Series)/AML/ADN Starter Kits
1070-4932
1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Heatsink, 1x Screw Copper Pillar Kit
