mITX-CFL-S
Industrial Motherboard supporting the 9th Gen Intel® Core™ i and Xeon® Processors
Mouseover Zoom loading...
Specifications
- 1x eDP, 2x DP, 1x HDMI for triple display support
- 3x GbE LAN for Ethernet
- 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 4x USB2.0, 4x RS232/422/485, 8x DIO for peripheral connection
- 2x SATA 3.0 for storage
- 1x PCIe x16, 1x M.2 Key A, 1x M.2 Key B, 1x M.2 Key M for SSD & expansion
Core™ & Xeon® Processors Support
Both Desktop- and Server-Grade Variants Available
mITX-CFL-S is a Mini-ITX industrial motherboard equipped with
9th Generation Intel® S-Series processors. It has two types of derived models based on Core™ i and Xeon® E processors respectively, making it suitable for enhanced embedded applications in infotainment, industrial automation, process control, small business / storage server, entry / mobile / cloud workstation, media transcode and edge computing / IoT segments.
A Variety of Expansion Interfaces
In addition to a variety of peripheral interfaces, mITX-CFL-S has two SATA 3.0 sockets, one PCIe x16 slot, one M.2 Key M socket, one M.2 Key A socket and one M.2 Key B socket for great storage and expansion possibilities.
Features
| Processor | Intel® Xeon® E-2200 Series (LGA1151 socket, max. 35 W TDP support for 8 Core CPU) Intel® Xeon® E-2100 Series (LGA1151 socket) 9th Generation Intel® Core™ S-Series (LGA1151 socket, max. 35 W TDP support for 8 Core CPU) 8th Generation Intel® Core™ S-Series (LGA1151 socket) 8th Generation Intel® Celeron® S-Series (LGA1151 socket) |
| Chipset | Intel® C246 (Xeon®, Core™ & Celeron® CPU) Intel® Q370 (Core™ & Celeron® CPU) |
| Main Memory | 2x DDR4 2400/2666 U-DIMM up to 64 GByte |
| Graphics Controller | Intel® UHD Graphics P630 (Xeon® CPU) Intel® UHD Graphics 630 (Core™ CPU) Intel® UHD Graphics 610 (Celeron® CPU) |
| Display | 1x eDP 1.4 (4096 x 2304 @ 60 Hz) 2x DP (on rear, 4096 x 2304 @ 60 Hz) 1x HDMI 1.4 (on rear, 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz) Triple display support |
| Audio Controller | Realtek ALC888S |
| Audio | 1x Line-out (by header) 1x Mic-in (by header) 1x S/PDIF (by header) |
| Ethernet | 3x GbE LAN (RJ45 on rear, 1x Intel® I219-LM, 1x Intel® I210-AT,1x Intel® I211-AT ) |
| USB | 2x USB 3.2 Gen 2 (Type A on rear) 4x USB 3.2 Gen 1 (Type A on rear) 4x USB 2.0 (by header) |
| Serial | 4x RS232/422/485 (2x DB9 on rear with 5 V / 12 V power output support, 2x by header) |
| Available I/Os | 8x DIO (by wafer) |
| SATA | 2x SATA 3.0 (RAID 0/1 support) |
| Expansion | 1x PCIe x16 1x M.2 Key A (Type 2230, w/ PCIe x1 / USB 2.0) 1x M.2 Key B (Type 2242, w/ PCIe x1 / SATA 3.0 / USB 3.2 / UIM) 1x M.2 Key M (Type 2280, w/ PCIe x4) 1x SIM Card Cage (Micro type) |
| Input Voltage | DC 12 V |
| Power connector | 1x 2x4-pin ATX connector |
| BIOS | AMI uEFI BIOS w/ 128 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| Real Time Clock | Chipset integrated RTC |
| Cooling | 1x Wafer for CPU Smart Fan 1x Wafer for System Smart Fan |
| Operating System | Windows 10 (Core™ / Celeron® CPU) Windows Server (Xeon® CPU) |
| Mechanical Dimensions | Mini-ITX (170 mm x 170 mm / 6.70” x 6.70”) |
| Operation Temperature | 0 °C ~ 60 °C / 32 °F ~ 140 °F (Standard) -20 °C ~70 °C / -4 °F ~ 158°F (Extended) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class A, FCC Class A, UL |
Downloads
Datasheets
mITX-CFL-S Datasheet
(Release Candidate)
Revision 20230816, August 16, 2023
[ kontron-mitx-cfl-s-datasheet-20230816.pdf, 3.2 MB, Aug.16.2023 ]
Manuals
mITX-CFL-S User Guide
Revision 3.0, February 2, 2023
[ kontron-mitx-cfl-s-user-guide-rev-3d0-2023-02-02.pdf, 2.15 MB, Feb.02.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
White Papers
Modules and Motherboards WP [restrictions apply]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 14.4 MB, Mar.24.2026 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Variants
|
mITX-CFL-S-0-C246 46015-0000-00-0 |
|
Intel® C246 Chipset, Operation Temperature: 0 °C ~ 60 °C | |
|
mITX-CFL-S-3-Q370 46016-0000-00-0 |
|
Intel® Q370 Chipset, Operation Temperature: 0 °C ~ 60 °C | |
|
mITX-CFL-S-0-C246-ET 46017-0000-00-0 |
|
Intel® C246 Chipset, Operation Temperature: -20 °C ~ 70° °C |
Accessories
|
COM_Port Cable 1064-2427 |
|
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm | |
|
DIO Cable 1065-3137 |
|
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm | |
|
2 Ports USB 2.0 Cable 1064-2429 |
|
USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm | |
|
SATA Cable with Lock 1064-2431 |
|
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm | |
|

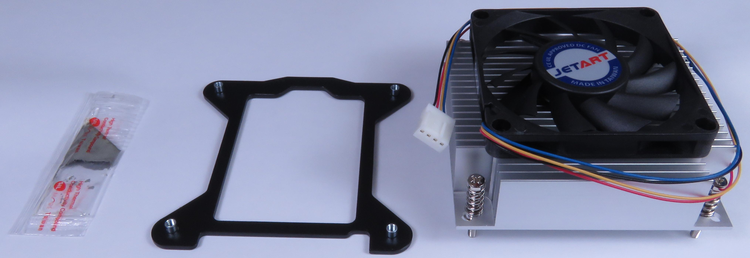

Active Cooler for LGA1156 Socket 1065-3175 |
|
AL Heat Sink + FAN, 12V DC-In, Support to 85Watt | |
|

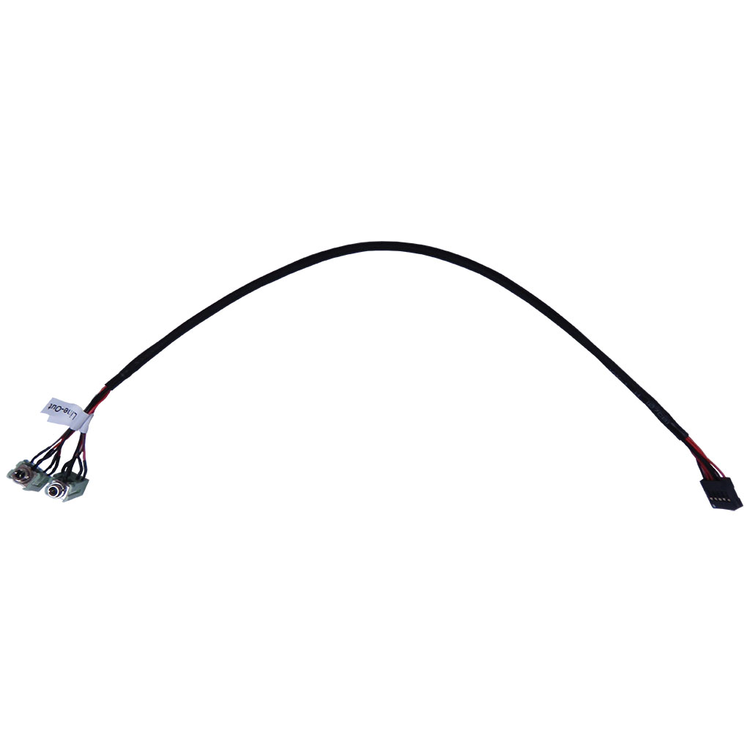

Audio Cable L=400 mm 1065-3141 |
|
2X6P(2.54 pitch) to 2 audio jack, L=400 mm | |
|

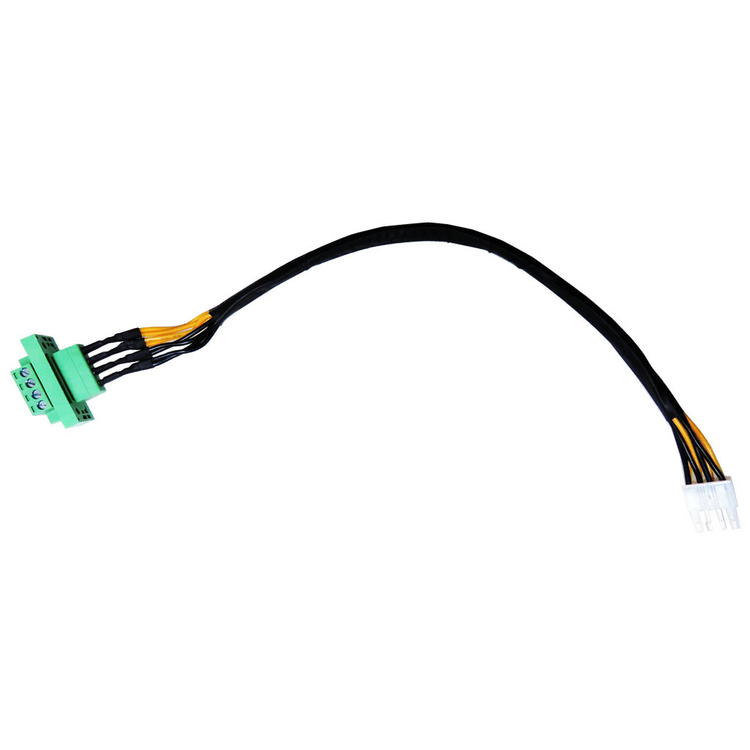

Phoenix 4-pin DC In Cable 1065-3176 |
|
C4255HF-2*4P 5557 Housing 4.2 mm Pitch to 2EHDP-4P 1*4P 5.08 mm Pitch + JST 110 Terminal 0.8T, UL1007 18#, L = 300 mm | |
|
Intel i3-8100 1062-7169 |
|
8th Generation Intel® Core™ i3 Processors 4Core; 3.6GHz; 6MB Cache; TDP 65W | |
|
Intel i3-8100T 1062-7167 |
|
8th Generation Intel® Core™ i3 Processors 4Core; 3.1GHz; 6MB Cache; TDP 35W | |
|
Intel i5-8500 1062-7177 |
|
8th Generation Intel® Core™ i5 Processors 6Core; 3.0GHz; 9MB Cache; TDP 65W | |
|
Intel i5-8500T 1062-7173 |
|
8th Generation Intel® Core™ i5 Processors 6Core; 2.1GHz; 9MB Cache; TDP 35W | |
|
Intel i7-8700 1062-7179 |
|
8th Generation Intel® Core™ i7 Processors 6Core; 3.2GHz; 12MB Cache; TDP 65W | |
|
Intel i7-8700T 1062-7178 |
|
8th Generation Intel® Core™ i7 Processors 6Core; 2.4GHz; 12MB Cache; TDP 35W | |
|
Intel G4900 1065-0487 |
|
Intel® Celeron® Processor G Series 2Core; 3.1GHz; 2MB Cache; TDP 54W | |
|
Intel G4900T 1065-0476 |
|
Intel® Celeron® Processor G Series i5 Processors 6Core; 2.9GHz; 2MB Cache; TDP 25W | |
|
Intel G5400 1065-0494 |
|
Intel® Pentium® Gold Processor Series 2Core; 3.7GHz; 4MB Cache; TDP 58W | |
|
Intel G5400T 1065-0492 |
|
Intel® Pentium® Gold Processor Series 2Core; 3.1GHz; 4MB Cache; TDP 35W | |
|
Intel Xeon E-2176G 1064-2483 |
|
8th Generation Intel® Xeon® E Series Processors 6Core; 3.7GHz up to 4.7GHz; 12MB Cache; TDP 80W | |
|
Intel Xeon E-2124G 1064-8746 |
|
8th Generation Intel® Xeon® E Series Processors 4Core; 3.4GHz up to 4.5GHz; 8MB Cache; TDP 71W |
