PMC/XMC Gigabit Ethernet Mezzanine Card
This product is not recommended for new designs.
Replacement Product:
Mouseover Zoom loading...
  • x4 PCI Express™ XMC and PCI PMC interface to Host
  • Standard Air Cooled version (0 to 55°C)
  • Rugged Conduction Cooled version (-40 to 85°C)

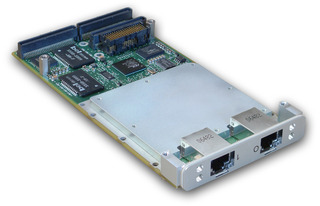

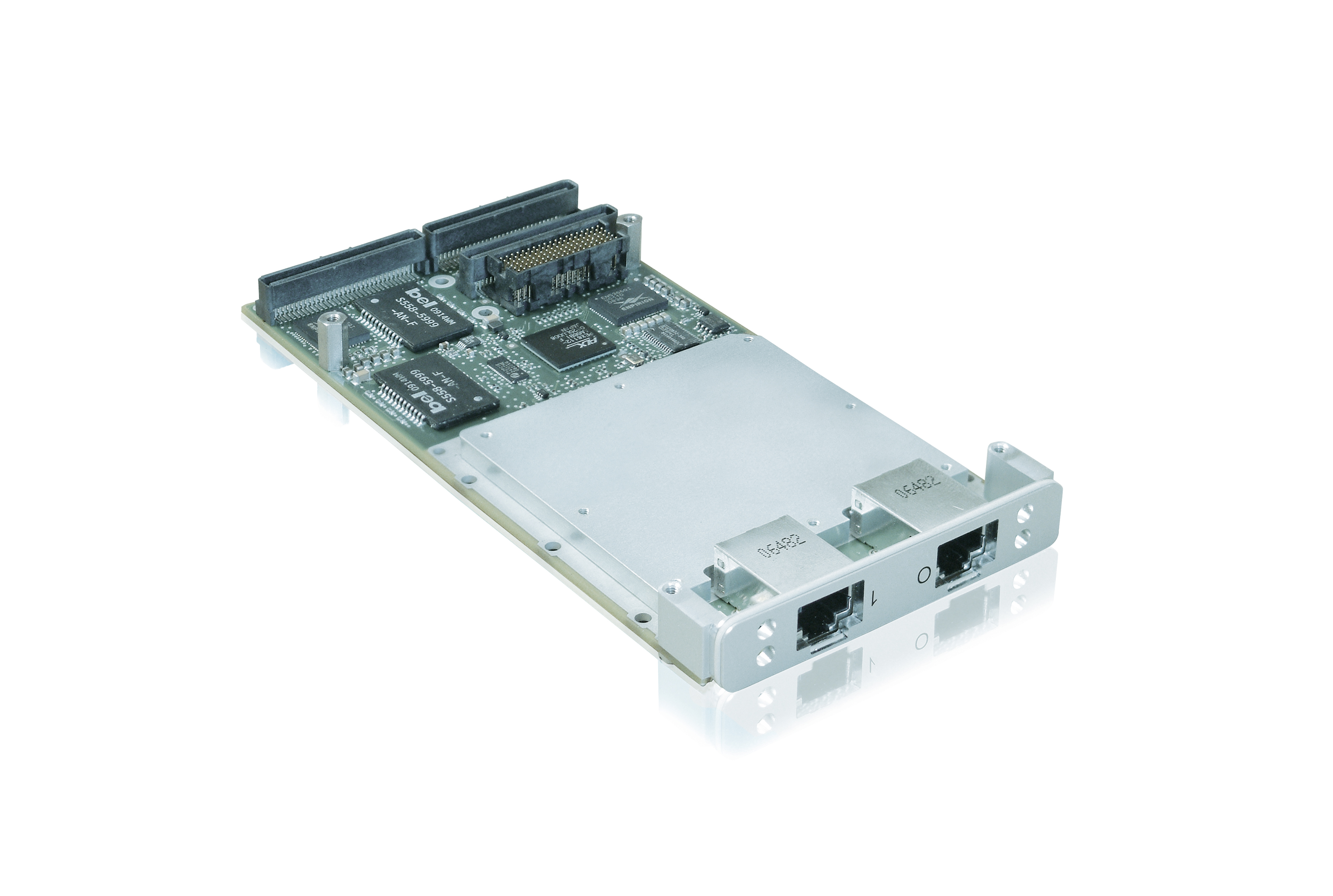

General Purpose Long Life Ethernet XMC and PMC Mezzanine

XMC-ETH2 Ethernet Mezzanine is designed to fit any VME,
VPX or CompactPCI Single-Board Computer in the market.

XMC-ETH2 provides two gigabit copper links selectable in
front or rear. When power on the P5 connector is detected,
the bus interface is selected to be a PCI Express interface
with four lines. Otherwise, it switches to PCI 33 MHz or 66
MHz, 32 bit on PMC connectors. The PMC PCI interface is
compatible with 5V and 3.3V V(I/O) voltages


Controller Intel® 82571
Data Rate 10 Base-T, 100Base-Tx, 1000Base-T
Function 1 or 2 independent Gigabit, Ethernet channels
Frontpanel 2x RJ45
Bus type 32 bit/33MHz or 66MHz PCI on P1/P2, x4 PCIe on P5
Rear I/O 1 or 2 channels can be routed to the back, via P4
PMC Compatible with 5V and 3.3V I/O voltages



XMC-ETH2 Data Sheet
[ datasheet_xmc-eth2.pdf, 730.12 KB, Aug.31.2017 ]

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
