VXI-C size 6025

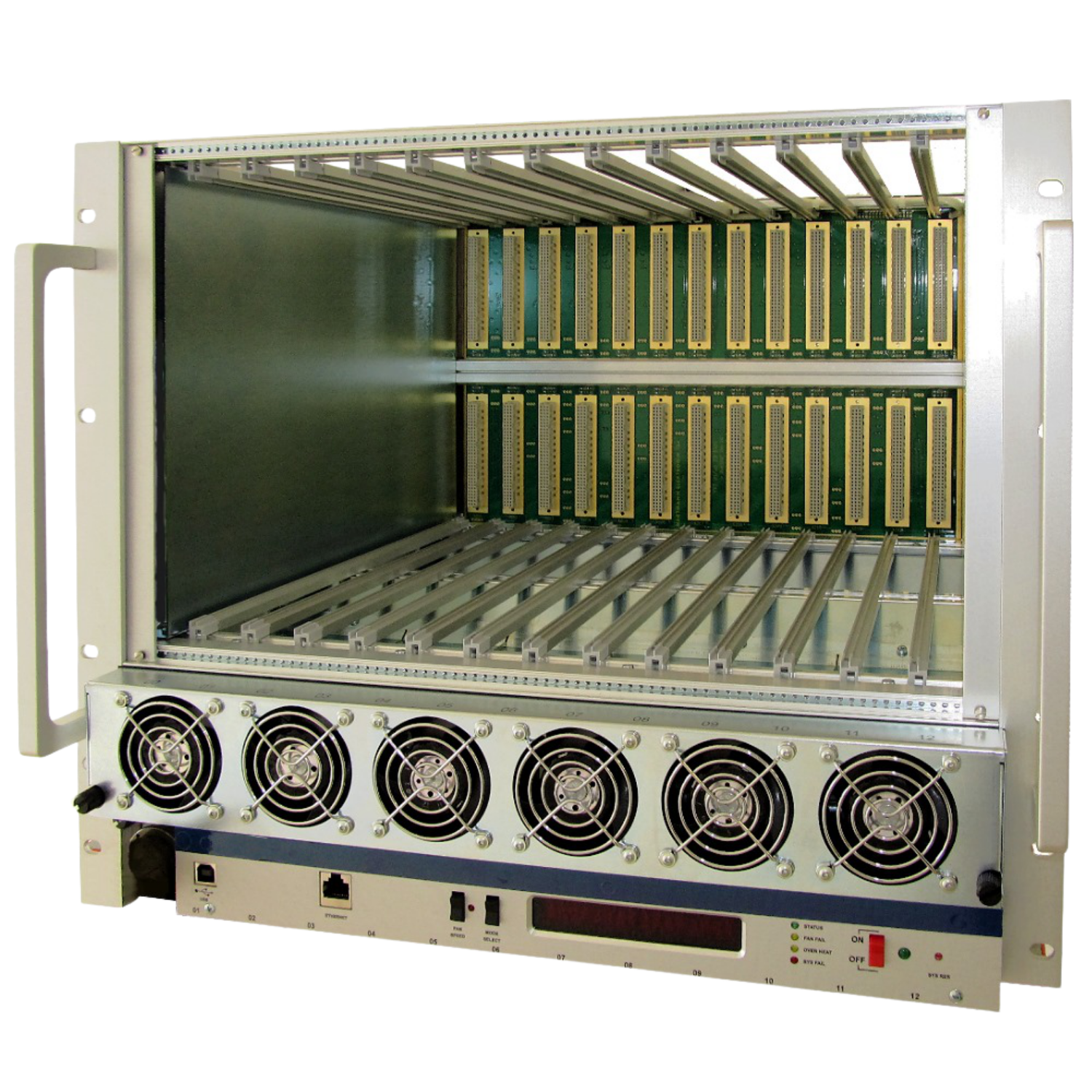

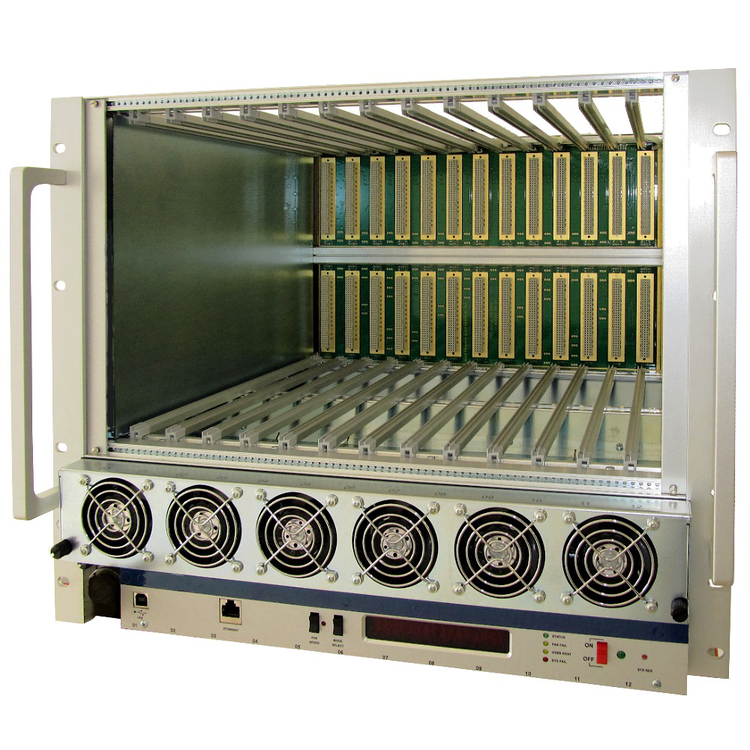

The VXI-C size 6025 Crate is a compact, front-access 13-slot VXI chassis available in two height versions—8.5 U for medium power (up to 2 kW) and 10 U for high power (up to 4 kW).
Specifications
- Mechanics: 13U × 23″ × 28″, IEEE 1155 VXI C-size compliant, EMC/ESD-protected
- Slots: 13 VXI C-size user slots (plus system slots)
- Power Supply: Up to 6 kW DC output, flexible PSU module configuration
- Interfaces: Ethernet, RS232, CAN-bus for remote monitoring & control
- Cooling: High-performance fan tray with 6 adjustable DC fans, filtered airflow (bottom-to-top)
- Protection: Built-in overvoltage/overcurrent protection via microprocessor-controlled PSU (UEP 6021)
It features a rugged steel-aluminum design with modular, front-loading fan tray and power supply for easy servicing.
The VXI-C size 6025 Crate is based on a proven 6000-series architecture and features a monolithic 13-slot C-size backplane with full front-side accessibility. Both the power supply and the cooling fan tray can be removed from the front for easy maintenance. The system is available in two configurations: a compact 8.5 U version delivering up to 2 kW, or a high-power 10 U version providing up to 4 kW. It includes microprocessor-controlled diagnostics with LED indicators and Ethernet connectivity for remote monitoring. Designed for demanding test environments, it offers high power density combined with excellent serviceability.
Features
| Mechanics & Slots | 19″ enclosure for 13 VXI modules (C-size, 6U × 340 mm) Rugged steel–aluminum construction with 5 mm side plates and precise rail alignment Monolithic 13-slot multilayer VXI backplane with active termination and automatic daisy-chain (VXI-4 optional) Front-removable fan tray and front-loading modular power supply Two height versions: 8.5 U (medium power, up to 2 kW) or 10 U (high power, up to 4 kW) Optional support for up to 8 temperature sensors above the module cage |
| Cooling & Fans | Front-removable fan tray with six independently controlled long-life DC fans (MTBF > 60,000 h) Bottom-to-top airflow design with efficient cooling channels Adjustable fan speed (1,200–3,600 RPM) with integrated thermal and fan monitoring Microprocessor-controlled with alphanumeric LED display and Ethernet interface for remote diagnostics Fan tray Version A: approx. 430 × 110 × 55 mm; ~2 kg Fan tray Version B: approx. 430 × 44 × 490 mm; ~9 kg |
| Power Supply | Front-loading “Cavity-VHF” modular switching power supply with excellent RF shielding Ultra-low noise outputs (<3 mVpp for <12 V rails; <10 mVpp on other rails) Modular, expandable design with self-ventilated universal power blocks and floating DC outputs Programmable voltages and current limits, over-/under-voltage and temperature protection, Power Protect Memory (PPM) Worldwide auto-range input (94–260 V AC) with Power Factor Correction (PFC) Power capability: up to 2 kW (Version A) or up to 4 kW (Version B) PSU Version A: approx. 430 × 66 × 523 mm; 12–20 kg (depending on modules) PSU Version B: approx. 430 × 58 × 552 mm; 15–30 kg (depending on modules) |
| Control & Monitoring | Microprocessor-controlled system with alphanumeric LED display for fan, power, and system status Ethernet interface for remote monitoring and control Supports up to 8 temperature sensors positioned above the VXI modules |
| Dimensions (W x H x D) | 19″ × 8.5 U or 10 U × 600 mm (W × H × D) |
| Weight | approx. 12–17 kg (without PSU) PSU weight depending on configuration: 12–30 kg |
