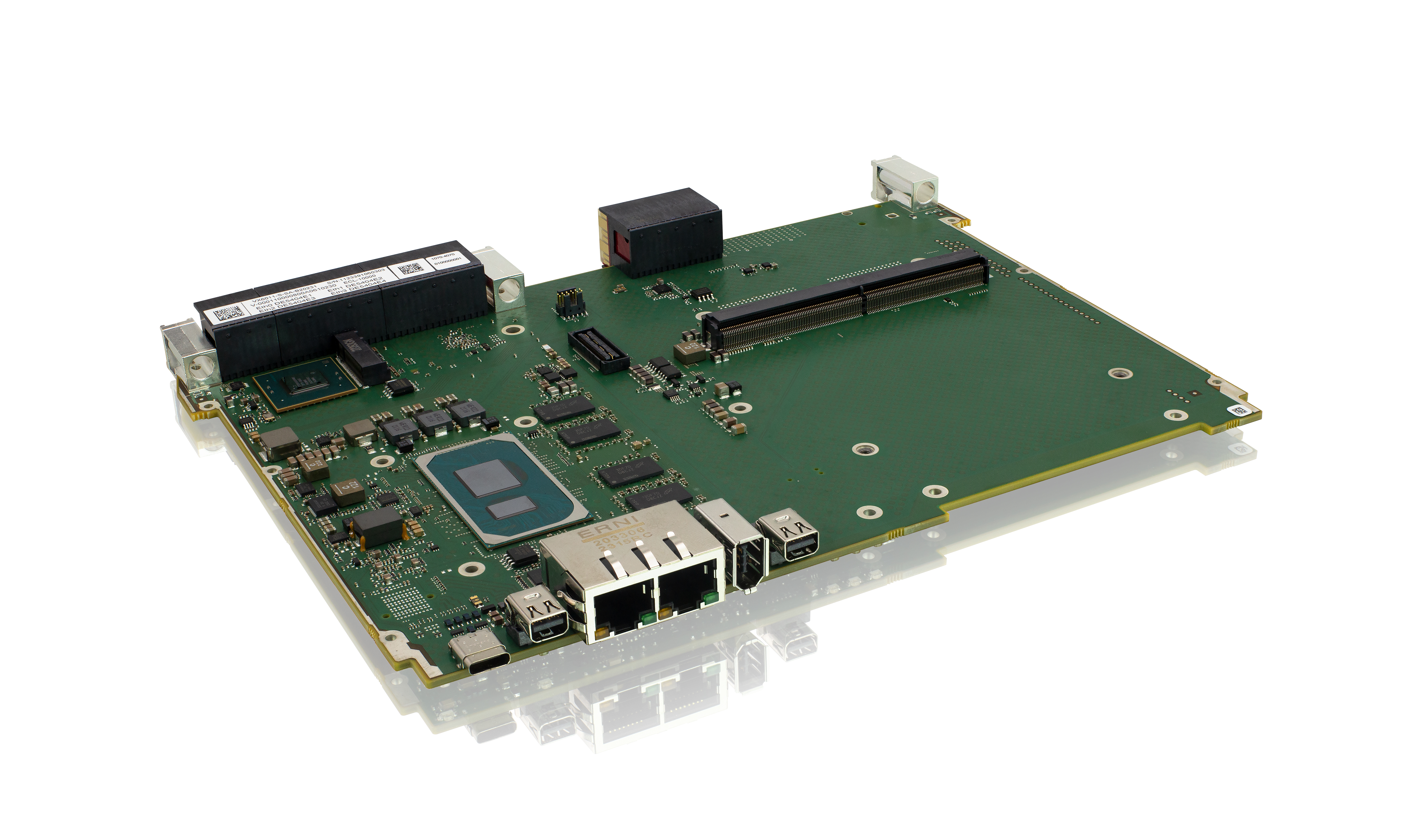

VX6011-S New

SOSA-aligned 11th Generation Intel Core Processor 6U VPX SBC

Specifications

11th Gen Intel® Core™ processor for AI (Artificial Intelligence), CVGIP (Computer Vision, Graphics, and Image Processing), DSP (Digital Signal Processing) workloads
12-28 W Quad Core™ processor, Enhanced AI, AVX-512, 32 GByte w ECC
8k Multi-Head display from Gen12 / 96 EUs high End GPU
Versatile I/O: USB-C, M.2 sockets, XMC option
1G/10G Ethernet Multi-port with 2.5G, 25G and TSN capability
15-year availability, PBIT, CBIT, SEC-Line support

Download Datasheet

Developed in alignment with the SOSA™ Technical Standard.

The 10nm gen Intel® System On Chip (SOC) SKUs delivers an unmatched feature set in a low power envelope enabling a solid foundation for almost all rugged computing use cases.

The VX6011-S has selected CPU SKU guaranteed for 10 years operations with 100 per cent active usage profiles. Quad core units with specialized instructions for Artificial Intelligence (VNNI) and Doubled Signal Processing performance (AVX512) will be available.

The integrated Intel Xe graphics engine also adds 96 EU execution units (EU) computing power accessible to software written for GPGPUs (via OpenCL) and offers all the features expected from a modern PC platform by demanding applications.

The VX6011-S pin assignment is compatible with VITA65 OpenVPX Profiles SLT6-PAY-
4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0 and can be considered for system architectures developed in alignment with the SOSA™ Technical Standard.

View SOSA-aligned products

Features

Processor

Intel® Core™ i7-1185GRE, 4-core/8 threads, configurable TDP from 12W to 28W

Cache

12Mbyte

DRAM DDR4

16-32 Gbyte dual channel DDR4 SDRAM with IECC

Expansion Slots

XMC or MXM

Backplanes

SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0
MOD6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-12.6.3-2

I/O Features

Control planes: Dual 10GBASE-KR + dual 1000BASE-T ports
x2 PCIe Gen3 / SATAIII for storage
DP++ 1.2 Graphic port
Dual USB2.0 ports
USB3.0 port
Dual serial lines
5 GPIOs
XMCIOs
Dual SMB/IPMB, JTAG, Power Supplies

Cooling

VITA 47 Standard air-cooled (0/+55°C)

Storage

320GB NVMe 1.4 SSD boot storage (M.2 slot)

Frontpanel

2x 10/100/1000Base-T(X) on RJ-45 connectors
1x RS-232 UART interfaces on iX connector
1x USB-C port
1x DP++ port on mDP connector
One Reset button
Bicolor LEDS
