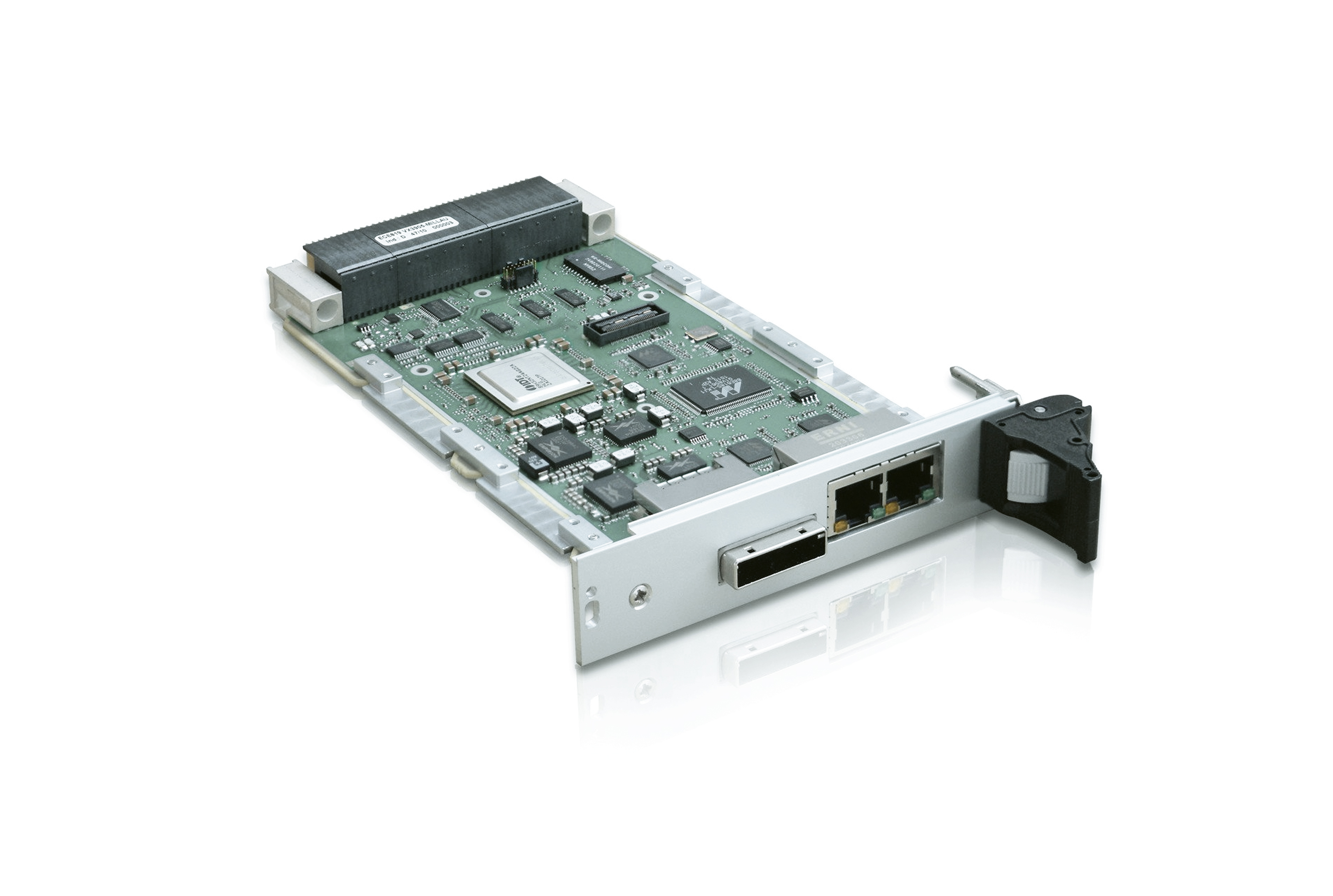

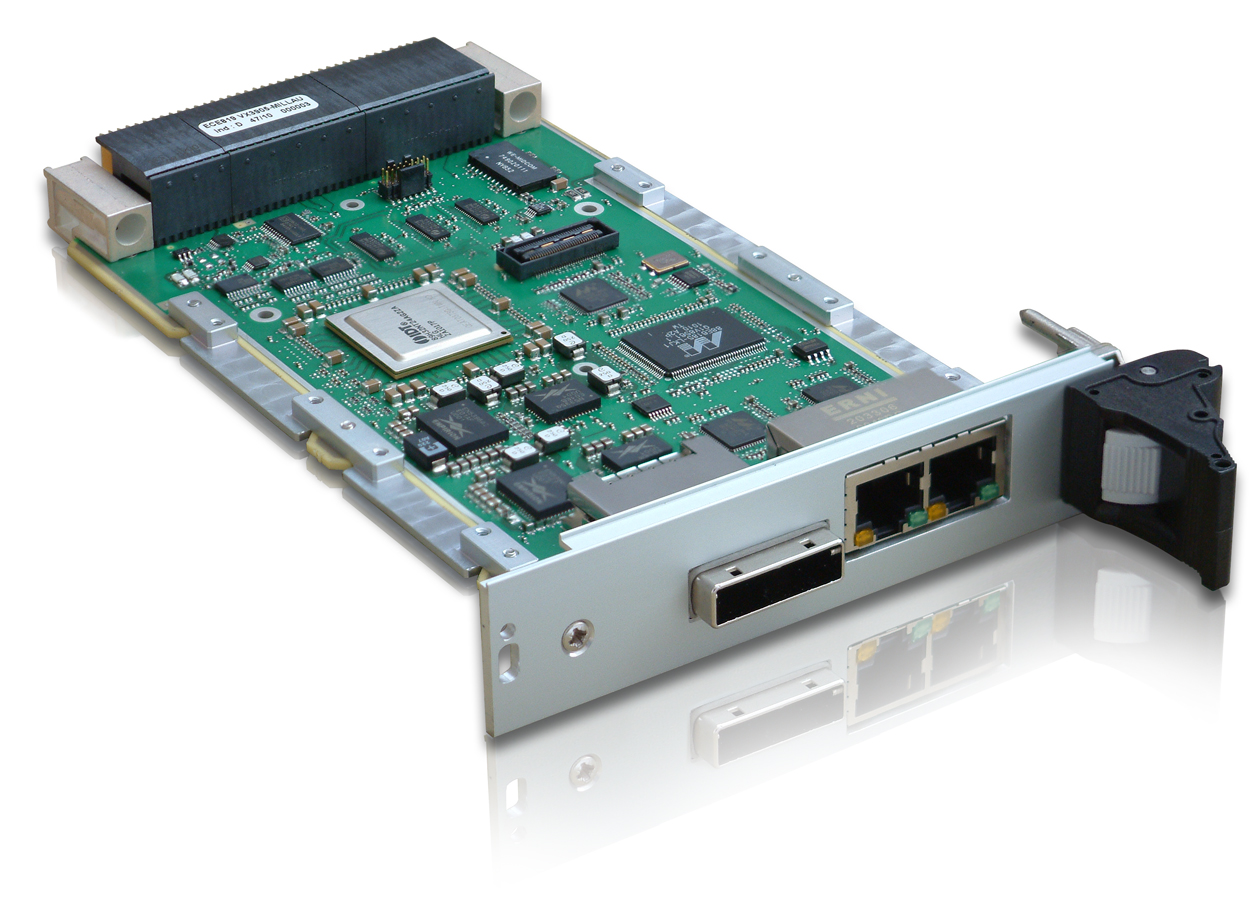

VX3905
3U VPX PCI Express and Ethernet Hybrid Switch
- Compliant with OpenVPX VITA65 profile SLT3-SWH-6F6U-14.4.1
- Up to 24 Ports/32 Lanes PCIe Switch
- 9 Port Giga Ethernet Switch
- Air-cooled and Conduction-cooled Builds
3U VPX PCI Express and Ethernet Hybrid switch
The Kontron 3U VPX PCI Express and Ethernet hybrid switch VX3905 is the ideal partner for the centralized backplane to efficiently handle a high bandwidth. It provides up to 24 Ports with 32 lane PCI Express Gen 1 / Gen 2 switching and additional 9 port gigabit Ethernet switching capabilities for the control plane. By this it offers a tenfold increase in I/O bandwidth between computing boards in High Performance Embedded Computing applications compared to VME, unleashing a new kind of applications for data processing platforms used for Radar, Sonar and general image processing.
VX3905 is available in an air-cooled version (0°C to +55°C) and in rugged conduction-cooled version (-40°C to + 85°C).
VX3905 is available in an air-cooled version (0°C to +55°C) and in rugged conduction-cooled version (-40°C to + 85°C).
Technical data
| GbE Switch Features | Marvell MVL88E6185, 9 Giga ethernet ports, 3 on board 1000BaseT PHY, 2 front RJ45 1000BaseT (SA build only), 1 rear 1000BaseT, 6 1000BaseBX rear links |
|---|---|
| PCI Express / PCI support | IDT 89H32NT24AG2, 32 Lanes, up to 24 Ports, User configurable ports as x8, x4, x2 (and x1 for 16 lanes), PCI Express gen2 and gen1, Front x4 PCI Express cable connector (SA build only) |
| SATA | Optional Sata disk carrier compliant with OpenVPX VITA65 SLT3-STO-2U-14.5.1 |
| Power Supply | Single +5V power supply |
| Power Consumption | 25W max (without Sata drive) |
Downloads
Manuals
General Safety Instruction
628.88 KB | March 26, 2026
VX3905 Ethernet Switch - Firmware User Manual
330.02 KB | March 26, 2026
This download is gated and requires special permissions. Please contact your Kontron representative for access.
Vx3905 Hardware Release Note
377.08 KB | April 21, 2026
This download is gated and requires special permissions. Please contact your Kontron representative for access.
VX3905 User's Guide
717.17 KB | March 26, 2026
This download is gated and requires special permissions. Please contact your Kontron representative for access.
Related products & solutions
VX3030
3U VPX Intel® Core™ i7 Single Board Computer

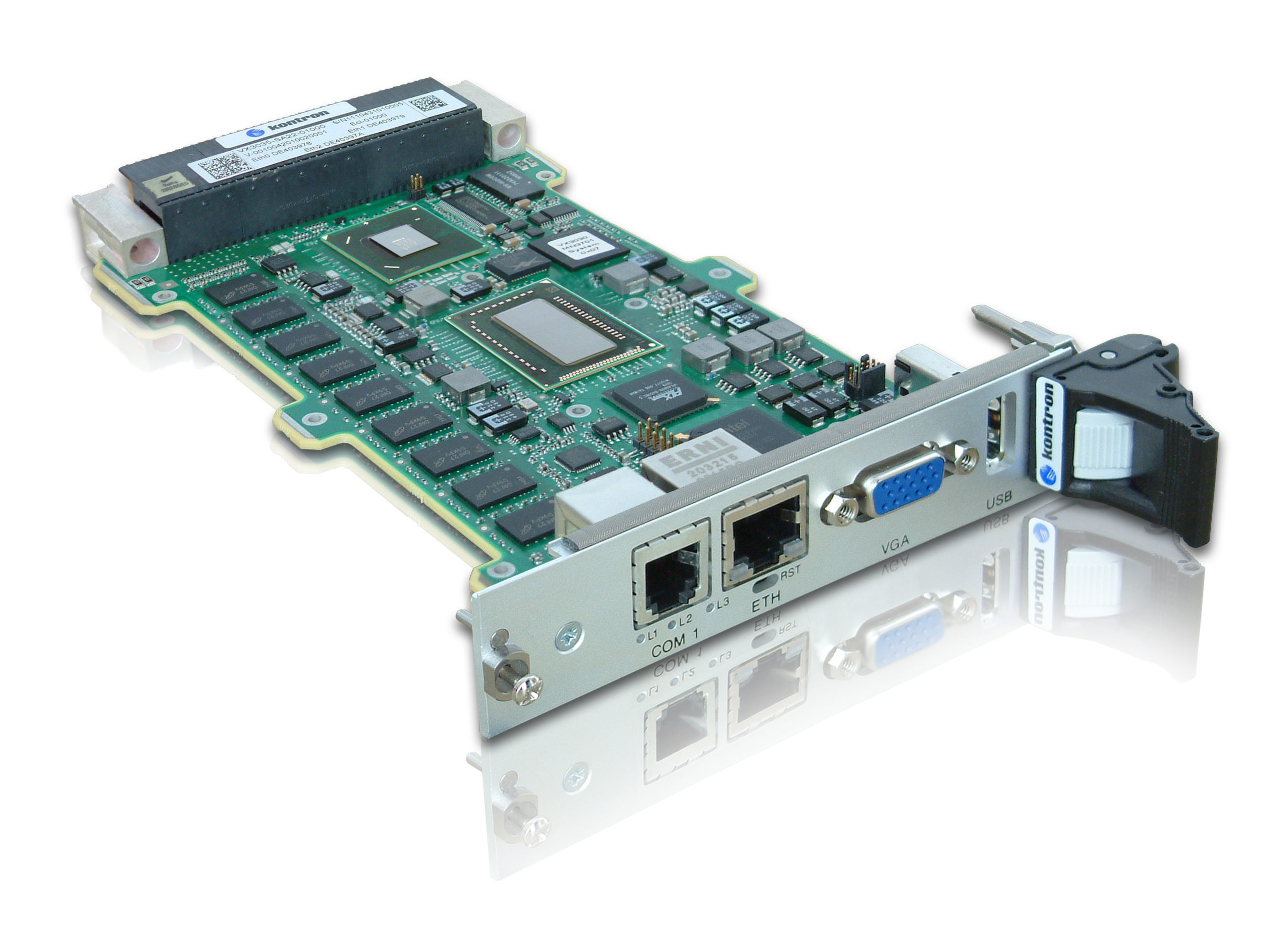

VX3035
3U VPX Intel® Core™ i7 Single Board Computer
Not recommended for new designs

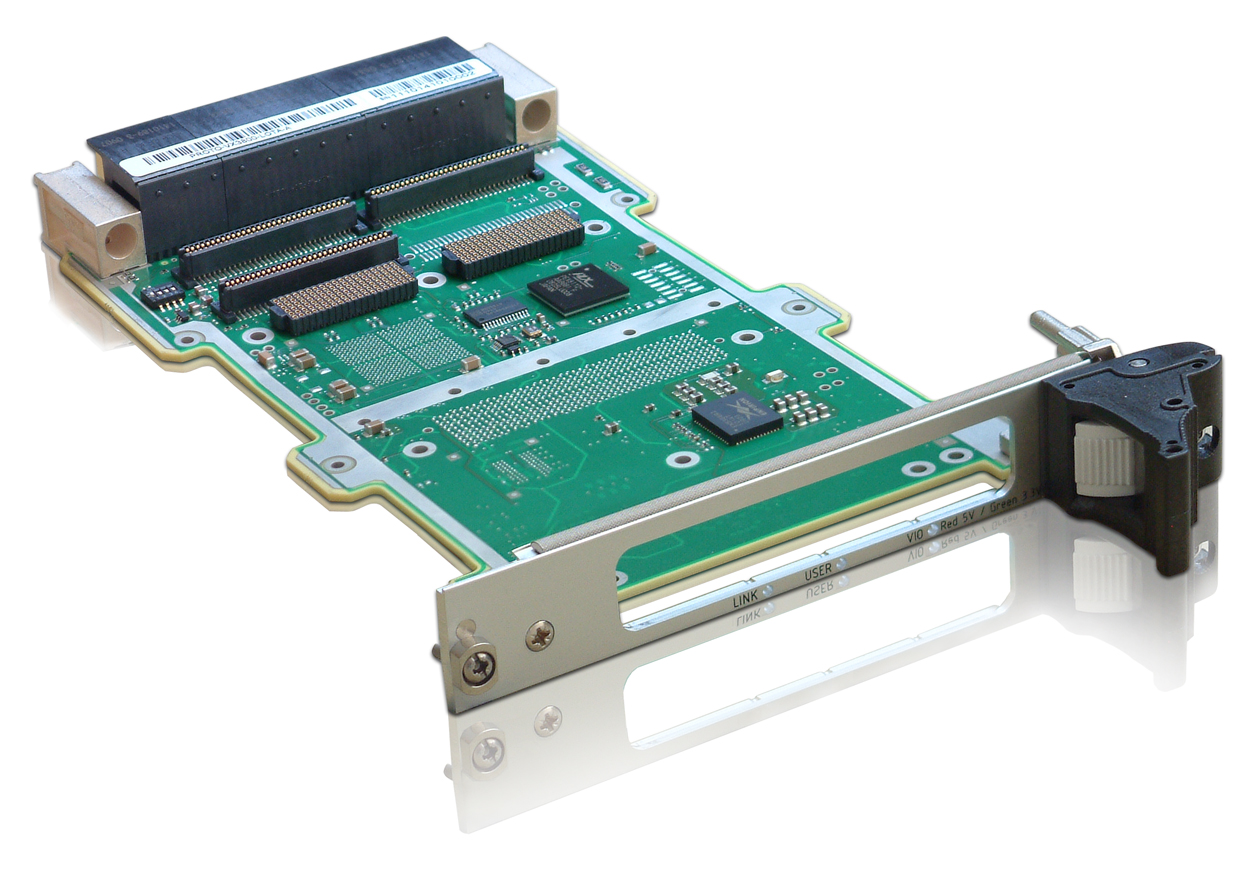

VX3800
3U VPX/VPX-REDI PMC/XMC Carrier Card
Not recommended for new designs

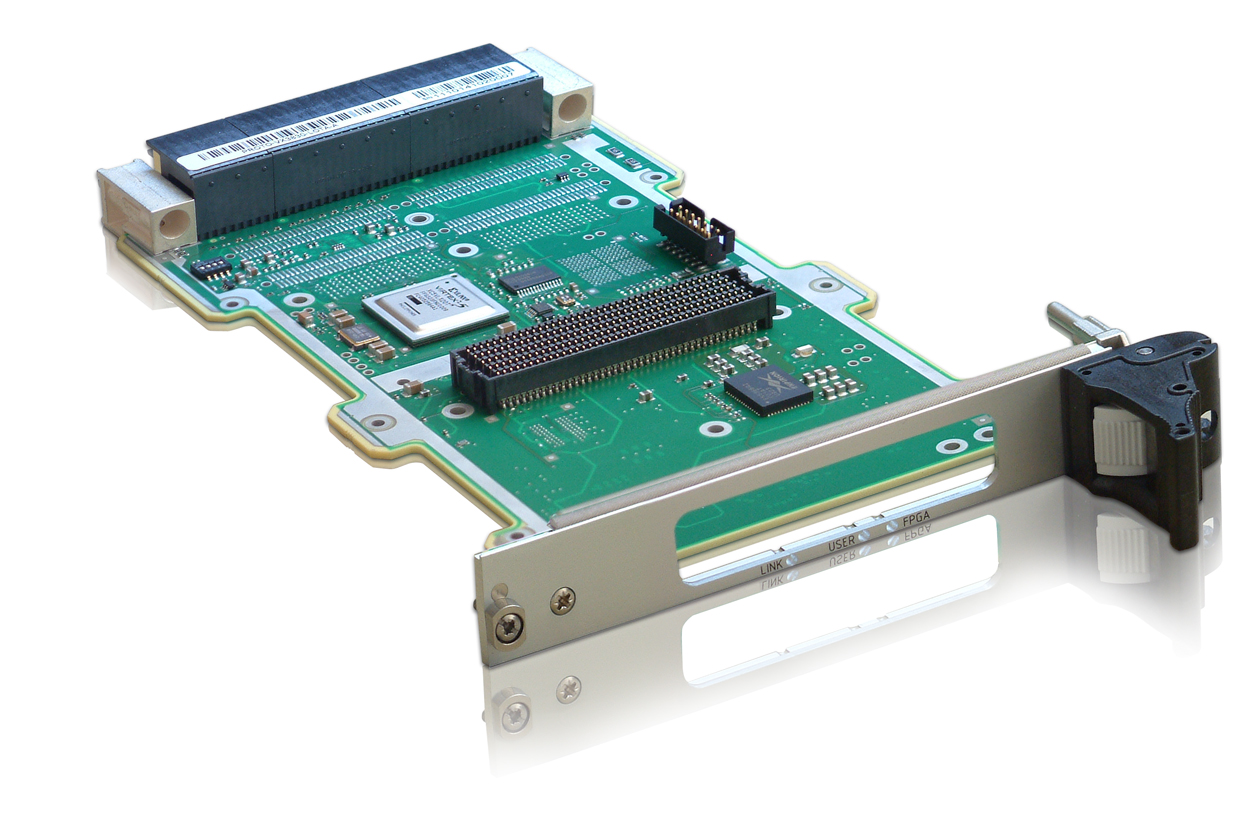

VX3830
3U VPX Xilinx® Virtex®-5 FPGA Processor Board with FMC Site

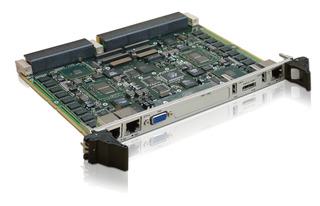

VX6060
