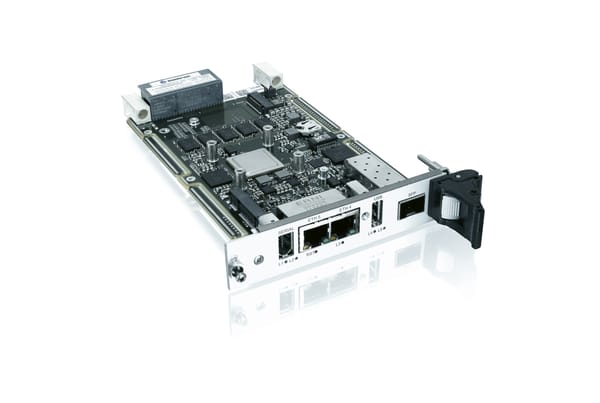

VX3106

3U VPX Low Power Network Blade SBC

Mouseover Zoom loading...

Specifications

Quad-core 1.2GHz 64bit ARM® A72 "Layerscape" Processor
High Performance Neon SIMD Co-processor and Double Precision FPU
6 1Gb ETHERNET Ports, option for 2 10Gb (Base KR) Ports
High Capacity Storage: 32GB eMMC and M.2 SATA III Sockets
Low Power <20W operating on single +12VDC , fit for Natural Convection
10 year Long Term Supply and Support

Download Datasheet

General Purpose ARM Computer for Networking and Safety Applications

Featuring the NXP Layerscape LS1046, a high performance 30K DMIPS quad core processor based on an ARM A72 architecture clocked at 1.2GHz, the VX3106 is the ideal building bloc for specific embedded applications such as firewalling, or more general purpose computing in a low power enveloppe.

Compatible with the complete Kontron 3U VPX ecosystem, this ARM architecture SBC is the natural companion of X86 3U VPX SBCs to build heterogeneous and redundant computer architecture required by safety critical applications.

Long term programs: high reliability and low Total-Cost-of-Ownership

Kontron provides a Long Term Supply program service (LTS) for over 15 years. A comprehensive Health Management is optionally available to support easy field maintenance. All this makes the VX3106 an ideal candidate for long term programs such as Transportation or Energy infrastructures or Defense applications

Features

Form Factor

3U VPX, 1’’ (5HP) 4 HP build version as option
Slot profiles: SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4, SLT3-PAY-1F1U-14.2.10

Processor

One NXP QorIQ Layerscape LS1046A Quad-Core 64-bit ARM® Cortex®-v8 A72
1.2 GHz upgradable to 1.8 GHz, 2 MB L2 cache, Neon SIMD Co-processor and DP FPU

Main Memory

8 GB 72-bit DDR4 SDRAM at 1600 MT/s with ECC

Security

Dual secure elements, TPM and Wibu, which can be enhanced with Kontron SEC-LINE product

USB

USB 2.0

Serial

EIA-232 Tx, Rx, RTS, CTS serial line on IEEE1394 connector

PCI Express / PCI support

x1 Gen. 3, second x1 lane as option

Downloads

Datasheets

VX3106 Datasheet
[ vx3106-datasheet-06-2018.pdf, 1.04 MB, Sep.19.2018 ]

Manuals

VX3106 User Guide [restrictions apply]
[ d218433-1-0-vx3106_ug.pdf, 3.02 MB, Oct.26.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Services

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
