Designed to the Compute Intensive SBC OpenVPX profile

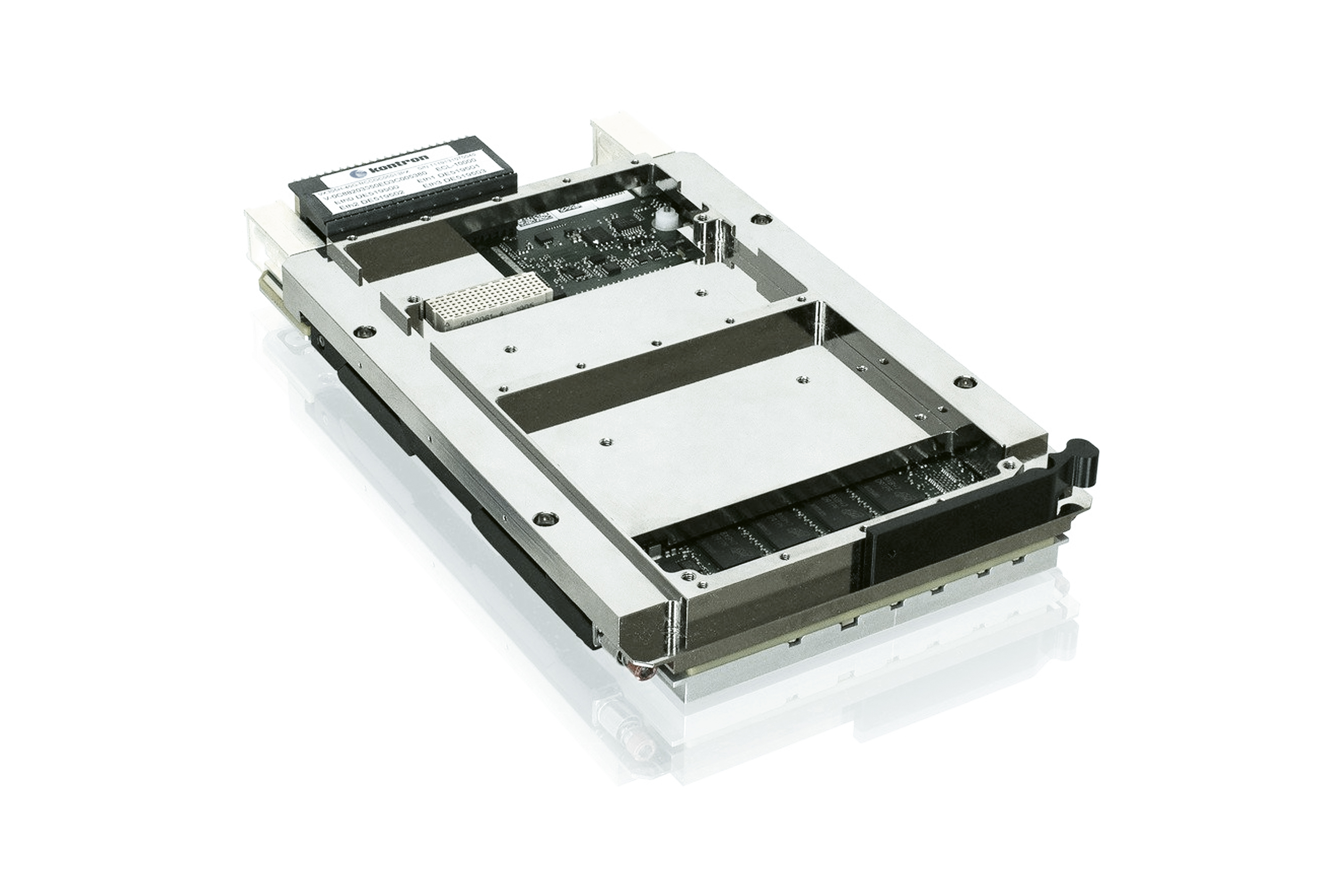

Building on Kontron's successful VX305x and VX305C-40G SBCs, and designed in alignment with the SOSA™ Technical Standard,the VX305H-40G 3U OpenVPX Single Board Computer leverages the VITA 65 (OpenVPX) SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11 Payload, or Compute Intensive slot profile adopted by both SOSA™ and the US Army CMOSS Modular Open Systems Architecture programs to bring processing and network performance to 3U systems. Using the highly integrated 12-core Intel® Xeon® D processor, the VX305H-40G complements the 40 Gigabit Ethernet Data Plane (40GBASE-KR4) with a second 10 Gigabit Ethernet Data Plane (10GBASE-KR), a 10 Gigabit Control lane (also 10GBASE-KR), and a wide 8-lane PCI Express 3.0 expansion plane. It also provides an XMC site with an 8-lane PCIe Gen3 interface for adding capabilities such as front-panel I/O or large block storage. As a result, it is a SWaP-C optimized computing platform suitable for a wide range of applications. The ITAR-free VX305H-40G is an ideal choice when designing a high-performance sensor system using modular open systems architecture principals.
VX305H-40G brings server class applications into the battlefield
Typical programs are :
Rugged By Design

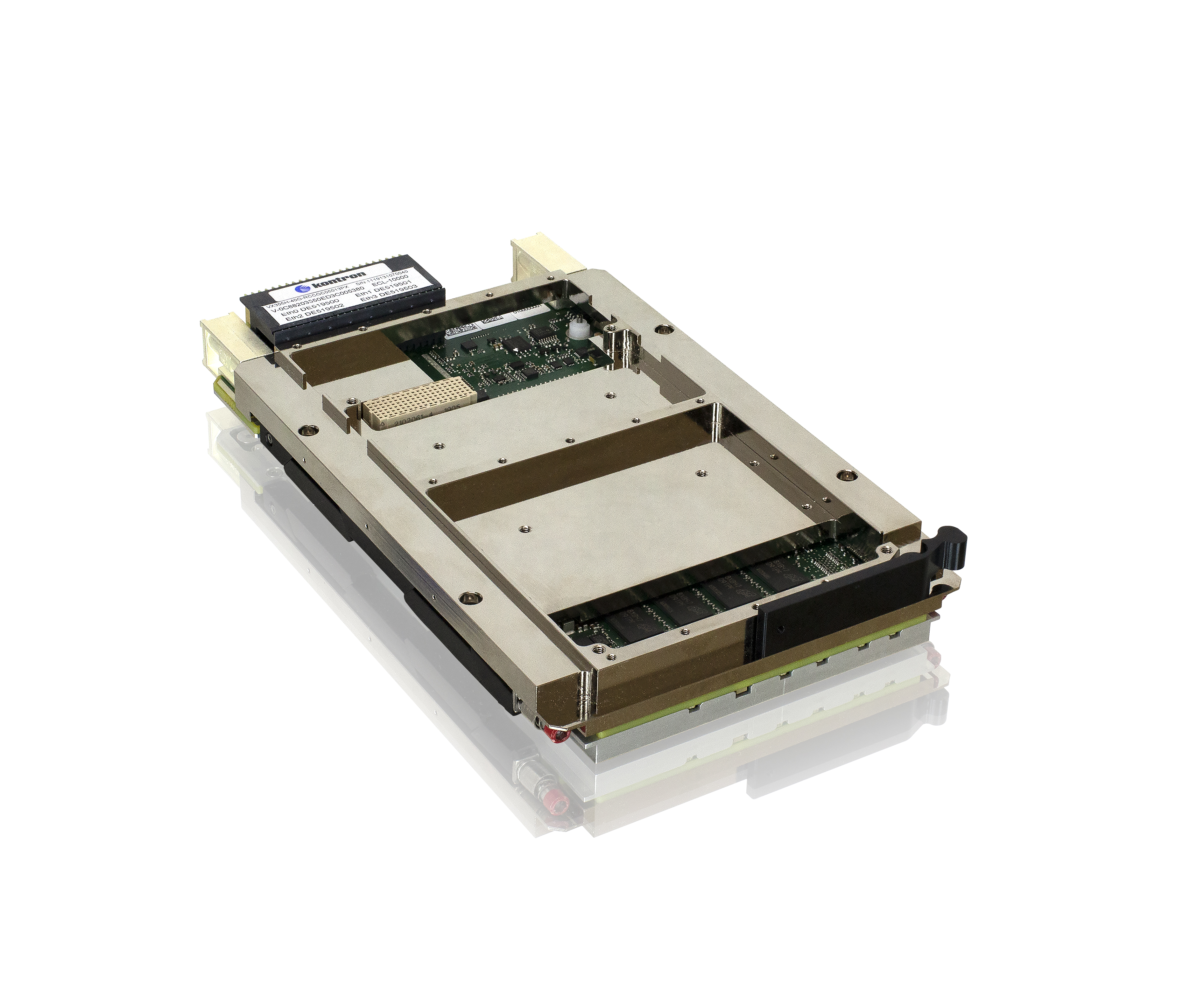

The high-performance VX305H-40G is available in both air-cooled (for lab or other benign deployed environments) and conduction-cooled Plug-in units as per VITA 48.2 Type 2, Secondary Side Retainer. This enables the VX305H-40G to sustain 70°C card edge temperature according to VITA 47 XMC support. The VX305H-40G is also available with a VITA 48 Ruggedized Enhanced Design Implementation (REDI) Two-Level Maintenance bottom cover option.
Additional Features and Advantages
System health and maintenance is a key differentiator of the VX305H-40G. Provided by the combination of a Kontron-designed VITA 46.11 compatible Intelligent Platform Management Controller (IPMC) for centralized system health and management, and Kontron's Power-On Built-In Test (PBIT) package with its innovative “Reference Learn” approach, the VX305H-40G brings a new level of system health and management capabilities to rugged deployed systems. These built-in features can be augmented by Kontron's CMON Linux Health Monitoring Engine, which creates a continuous flow of health data from customizable test points
for either remote or local monitoring.
Long term programs: high reliability and low Total-Cost-of-Ownership
Kontron provides a Long Term Supply program service (LTS) for over 15 years. Intel communicates silicon reliability is 10 years. A comprehensive Health Management is optionally available to support easy field maintenance. All this makes the VX305H-40G an ideal candidate for long term programs.
|Form Factor||3U VPX, 1’’ (5HP)
Slot profile: SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11 (SOSA Aligned)
|Processor||Intel® Xeon® D-1559 Twelve Core, TDP 35W, 1.5 GHz/2.1 GHz TURBO
(12 execution cores, 24 threads, 18 MByte Cache)
PCIe gen3 x8 ports to VPX and XMC, up to 8 GT/s
|Main Memory||32 GB dual channel DDR4 SDRAM running at 2133 MT/s, with ECC, soldered|
|Available I/Os||Front panel: None
Utility Plane: Dual Maintenance Ports, SMB
Data Plane 1; 40GBASE-KR4
Data Plane 2: 10GBASE-KR
Expansion Plane: x8 PCIe 3.0
Control Plane: 10GBASE-KR (or 1000BASE-KX)
Utility Plane: GPIO1, Maskable reset, GDISCRETE1, VBAT, SYSCON
|Security||Dual secure elements, TPM and Wibu, which can be enhanced with Kontron SEC-LINE product|
|Watchdog||PLD-based, timeout ranging from 2 µs to 510s, IRQ, Reset, dual-stage|
|Flash||2x16 MB FLASH, with recovery image and uEFI BIOS settings|
|Power Supply||On P0: VS1=12V and 3.3V_AUX; VS2 not used; VS3=5V not used; -12V_AUX for XMC slot option|
|Drives||60 GB SSD M.2 Option|
|Cooling||Air and Conduction-cooled options|
Datasheet for the VX305H-40G 3U VPX SOSA-aligned SBC
[ vx305h-40g_3u-vpx-sosa_datasheet.pdf, 1.49 MB, Dec.12.2019 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
