New product

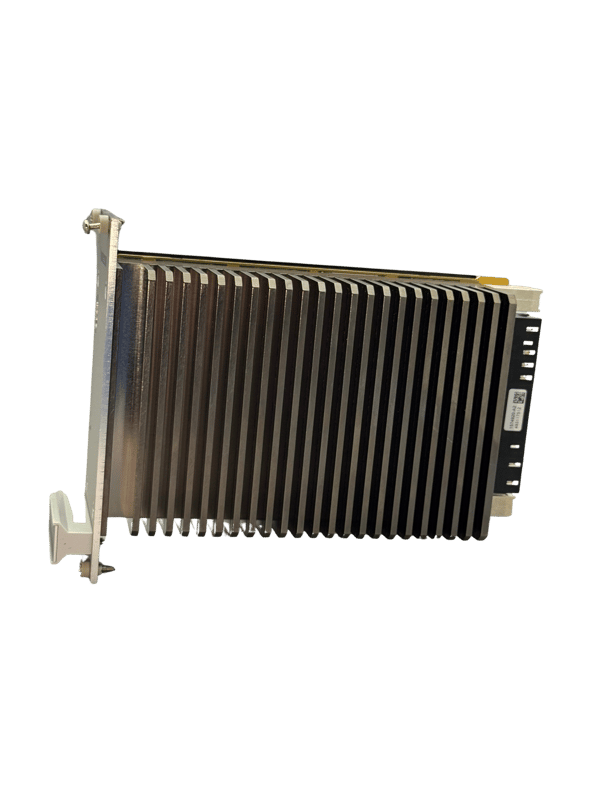

VPX360 Air-cooled
600 W 3U VPX Power Supply for 28 V DC and 48 V DC Applications
- Up to 600 W output power
- Compact 3U, 10 HP VPX form factor
- 28 V DC or 48 V DC input
- I²C, USB-C and optional IPMI
- VITA 62 and MIL-standard design
Product Information
The Kontron VPX360 Air Cooled is a rugged, commercial off-the-shelf power supply designed in accordance with ANSI/VITA 62.0 for integration into standard VITA 46.0 VPX systems. Its next-generation power conversion technology delivers up to 600 W of output power with high efficiency in a compact 3U form factor.
Separate versions support nominal 28 V DC or 48 V DC input systems, with a wide operating input range from 12 V DC to 68 V DC. The VPX360 provides multiple main and auxiliary output voltages, comprehensive protection functions, programmable power sequencing, and onboard monitoring through I²C, USB-C, and optional IPMI.
Designed for demanding environments, the power supply features conformal-coated electronics and is engineered to meet MIL-STD-461, MIL-STD-704, MIL-STD-1275, and MIL-STD-810 requirements. Compliance testing is still pending where indicated in the preliminary datasheet.
Technical data
| Mechanical | Form factor: 3U VPX CC, air-cooled; pitch: 10 HP / 2.0 inches; dimensions: 122.40 × 171.04 × 50.46 mm; weight: 1.2 kg / 2.6 lbs |
|---|---|
| Input Voltage | Nominal input voltage: 28 V DC or 48 V DC, depending on version and mechanical keying; input voltage range: 12–68 V DC; minimum turn-on voltage: 12 V DC; minimum turn-off voltage: 8 V DC; maximum continuous input voltage: 68 V DC; maximum peak input voltage: ±250 V for less than 1 ms |
| Power & Efficiency | Nominal input voltage: 28 V DC or 48 V DC, depending on version and mechanical keying; input voltage range: 12 V DC to 68 V DC; minimum turn-on voltage: 12 V DC; minimum turn-off voltage: 8 V DC; maximum continuous input voltage: 68 V DC; maximum peak input voltage: ±250 V for less than 1 ms; reverse-polarity and input-overvoltage protection; outputs are disabled when the input voltage exceeds 68 V DC for more than 600 ms, with automatic restart after 10 seconds |
| Protection Features | Overvoltage, undervoltage, overcurrent, overtemperature, reverse-polarity and input-overvoltage protection; hardware current limiting; outputs disabled when input voltage exceeds 68 V DC for more than 600 ms, with automatic restart after 10 seconds; internal PCB temperature protection threshold: 125 °C, with outputs disabled when exceeded; maximum internal working temperature: 125 °C; input-to-output isolation: 500 V; input-to-case-ground isolation: 500 V; output-to-case-ground isolation: 500 V; case-ground-to-safety-ground resistance: <10 mΩ, to be confirmed |
| Management & Control | Microprocessor-controlled monitoring of input status, six output voltages and currents, and temperatures; I²C bus communication with optional control functions; USB-C for communication and firmware management; optional IPMI support according to VITA 46.11; control and status signals include ENABLE, INHIBIT, FAIL, SYSRESET, voltage sense, current sharing, geographic addressing and system management |
