VPX Chassis 10U84HP 10 Slots

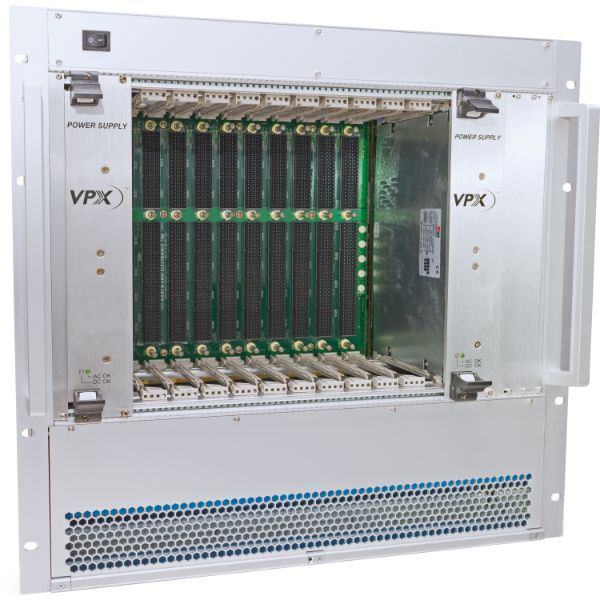

The Kontron Hartmann Wiener 10-slot 6U VPX chassis (BKP6-CEN10-11.2.4-4) is a 10U, 84HP rack-mount system with dual 1000 W VPX power supplies and a 3U fan tray, offering rugged performance for demanding applications.
Specifications
- Mechanics: 10U × 84 HP, IEEE 1101.1 / 1101.10/11 compliant
- Slots: 10 × 6U OpenVPX, profile BKP6-CEN10-11.2.4-4 (9 payloads + 1 integrated switch) for PCIe Gen3 & 10GbE with rear I/O
- Power Supply: 2 × plug-in VPX 1000 W, input 90–264 VAC, 47–63 Hz
- Output Voltages: 12 V/63 A, 3.3 V/20 A, 5 V/30 A, ±12 V/1.5 A
- Cooling: Fixed fan tray (3U) with 3 × 120 mm (12 V DC) fans, airflow bottom front → top rear
- Compliance: IEC 60297-3-101/-102/-103; MIL-STD-810F (vibration & shock); EN 50155 railway standard
The Kontron Hartmann Wiener 10-slot 6U VPX chassis (BKP6-CEN10-11.2.4-4) is a 10U, 84HP rack-mount system with dual 1000 W VPX power supplies and a 3U fan tray, offering rugged performance for demanding applications.
This 10-slot 10U VPX chassis from Kontron Hartmann Wiener is engineered for scalability, high bandwidth and rugged applications. Supporting 6U modules and high-speed fabrics (PCIe Gen3 & 10GbE), it offers a full OpenVPX backplane in profile BKP6-CEN10-11.2.4-4 with rear I/O integration. Dual 1000 W plug-in power supplies and a 3U bottom fan tray support heavy loads and demanding thermal environments. Enhanced EMC shielding and compliance with military (MIL-STD-810F) and railway (EN 50155) standards make this chassis suited for defence, transportation and industrial markets.
Features
| Compliance | IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 MIL-STD-810F (shock & vibration) EN 50155 railway standard |
| Power & Efficiency | Dual 1000 W plug-in VPX power supplies (90–264 VAC, 47–63 Hz) Output voltages: 12 V/63 A, 3.3 V/20 A, 5 V/30 A, ±12 V/1.5 A |
| Protection | Enhanced EMC shielding Rugged mechanical design for vibration & shock resistance |
| Control & Monitoring | Integrated power switch, fuse and filter Ready-to-use assembly for quick deployment |
| Design & Components | 10-slot 6U OpenVPX backplane (profile BKP6-CEN10-11.2.4-4) with rear I/O Bottom-front to top-rear airflow via 3 × 120 mm fans |
| Mechanical | 10U × 84 HP × 283.1 mm depth Rack-mountable enclosure Service-friendly fan tray and power supply modules |
Downloads
Datasheets
VPX Chassis 10U84HP 10 Slots Datasheet
[ lmh0000950-10u-84hp-vpx-10-sl-2x-1000w.pdf, 1.44 MB, Oct.28.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
