VPX600 Datasheet
324.91 KB | March 26, 2026

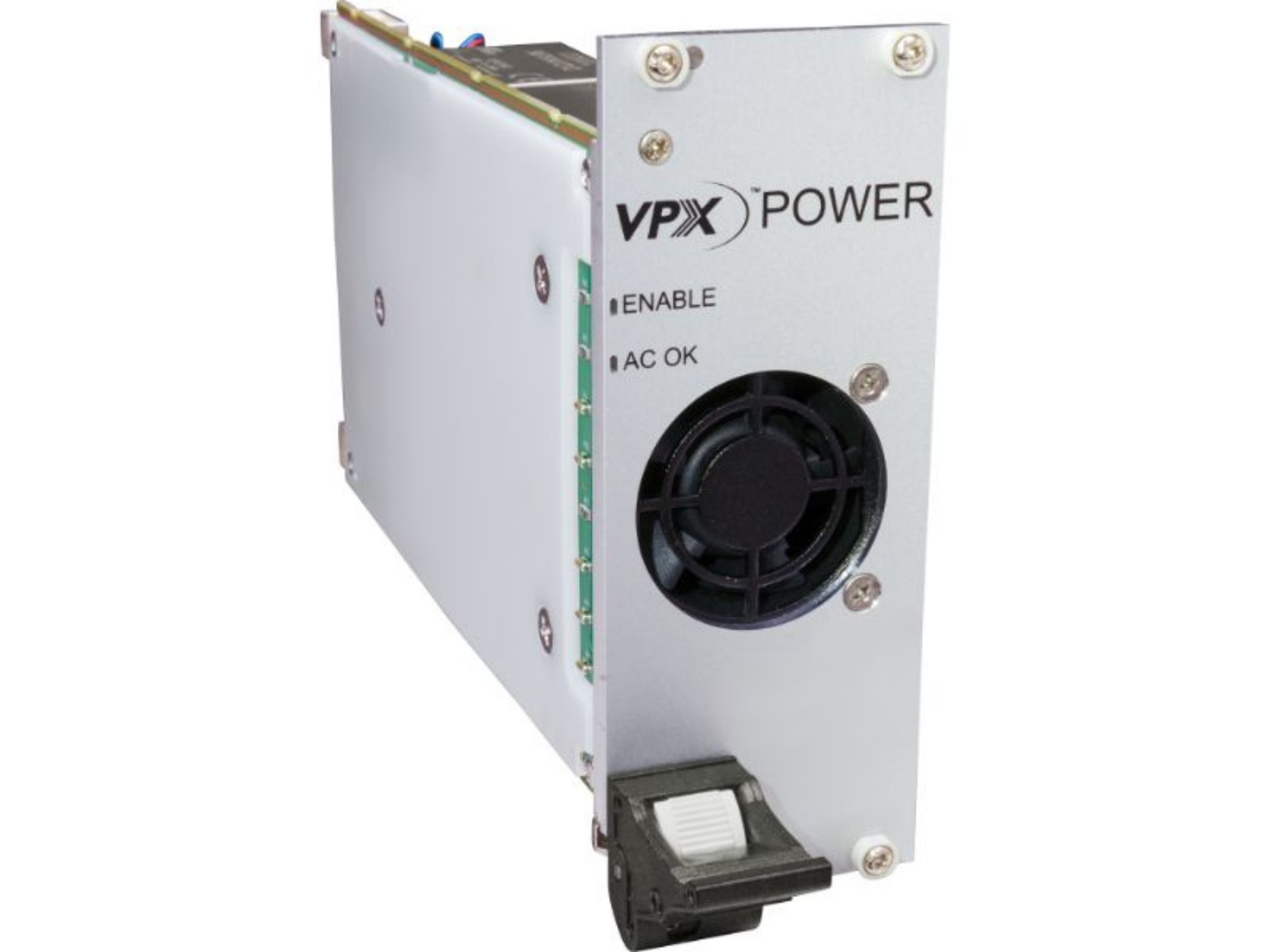

VPX 6U/AC Power Supply 600W
Power Supply 600W
- Delivers up to 600 W output power with 6 regulated DC channels
- Wide input range of 85–264 V AC (47–63 Hz), supports global standards
- Air-cooled design with internal low-noise fan for stable thermal performance
- 3U / 10HP VPX form factor, fully ruggedized for harsh environments
- High efficiency up to 89%, parallel operation supported for redundancy
Product Information
The Kontron Hartmann Wiener VPX 3U AC Power Supply D575.00646 is engineered for mission-critical and rugged applications. With 600 W of reliable output, six DC channels, and a wide AC input range, it offers flexibility and resilience in a 3U VPX form factor. Featuring air cooling, high isolation ratings, and up to 89% efficiency, it’s an optimal choice for defense, industrial, and embedded systems.
Technical data
| Compliance | Compliant to VITA 62 specification Designed for MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliance (testing as per VITA 62, par. 3.2.1) Ruggedized to MIL-STD-810 with standard conformal coating |
|---|---|
| Power & Efficiency | Output power up to 600 W total High efficiency up to 88% (typical) Input voltage range: 85–264 V AC, 47–63 Hz Inrush current: 6 A (typical), 20 A (max at 265 Vrms) |
| Protection Features | Voltage sense controlled Over Voltage, Under Voltage, Over Current, Over Temperature protection Reverse polarity protection Input overvoltage protection |
| Management & Control | Microprocessor controlled I²C interface for monitoring input/output voltages, currents, temperature, and status Micro-USB connector for firmware updates |
| Design & Components | No liquid / wet / aluminum electrolytic capacitors Rugged construction with front-panel extraction handle and mechanical keying Supports parallel operation with compatible Hartmann PSUs and backplanes |
