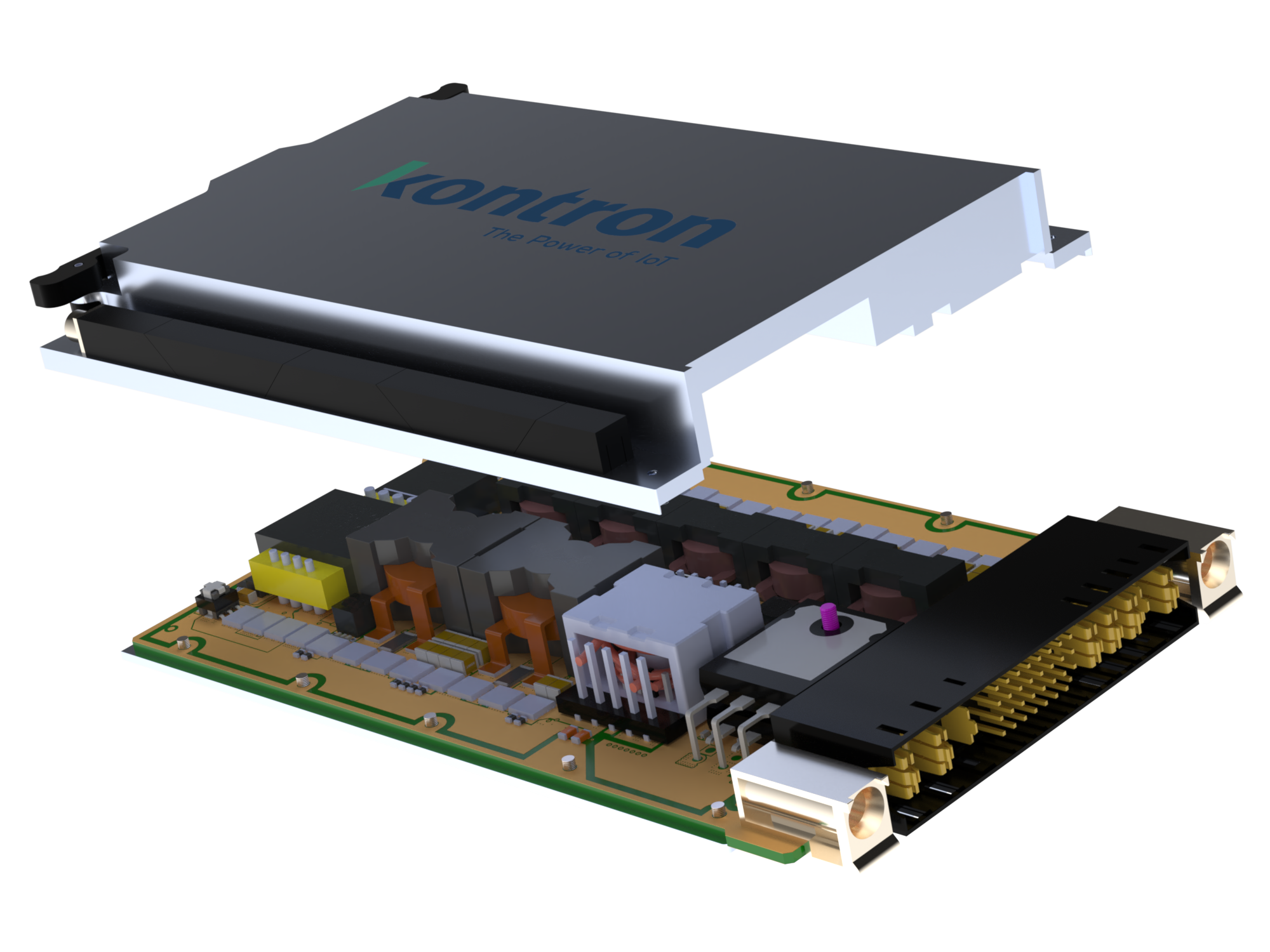

VPX 3U/DC Power Supply 600 W – VPX360
High Power VITA 62 VPX Power Supply
- OTS VPX power supply with conduction cooling (VITA 62.0 compliant)
- Compact 3U x 5HP form factor, fits standard VITA 46.0 envelope
- Supports both 28V DC and 48V DC input platforms
- High output power and efficiency through next-gen switching technology
- I²C (IPMI) and USB monitoring; MIL-STD 461, 704, 1275 compliant
Product Information
Kontron VPX360 power supplies are conduction-cooled, commercial off-the-shelf (COTS) converters designed according to ANSI/VITA 62.0 and compatible with standard VPX chassis per VITA 46.0. Thanks to our next-generation switching power technology, the series delivers increased output power and current in a compact 3U x 5HP footprint, while maintaining high efficiency. A newly developed input filter, combined with a booster and isolation stage, enables operation with both 28V DC and 48V DC input systems. Built to meet MIL-STD-461, 704, and 1275 requirements, the VPX360 also features onboard monitoring and control via I²C (IPMI) and USB. All mechanical and electrical interfaces follow the VITA 62 standard.
Technical data
| Compliance | Compliant to VITA 62 specification MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliance (to be tested as per VITA 62, par. 3.2.1) Ruggedized to MIL-STD-810, with standard conformal coating (other on request) |
|---|---|
| Power & Efficiency | Next generation power conversion technology Output power up to 600W with high efficiency Dual / wide input voltage range: 12 V DC … 70 V DC (nominal 28V and 48V) Reverse polarity and input overvoltage protection |
| Protection Features | Voltage sense controlled Over Voltage, Under Voltage, Over Current, Over Temperature protection |
| Management & Control | Microprocessor controlled I²C bus communication for monitoring (status, input and 6 output voltages and currents, temperatures) Micro-USB connector for communication and firmware updates IPMI support as per VITA 46.11 |
| Design & Components | No liquid / wet / aluminum electrolytic capacitors |
Variants
Select variants here
VX3060DMA
600W 3U VITA 62 VPX power supply Standard Version, 28V key, MIL-STD-461, -704, -1275 compliant, with standard acrylic conformal coating [Input] 28V DC VS1 [+12V] 40A VS2 [+3.3V] 20A VS3 [+5V] 40A Vaux1 [+12V] 1A Vaux2 [-12V] 1A Vaux3 [+3.3V] 6A
WIENER VPX360 power supplies are conduction-cooled, commercial off-the-shelf (COTS) converters designed according to ANSI/VITA 62.0 and compatible with standard VPX chassis per VITA 46.0. Thanks to W-IE-NE-R's next-generation switching power technology, the series delivers increased output power and current in a compact 3U x 5HP footprint, while maintaining high efficiency.
A newly developed input filter, combined with a booster and isolation stage, enables operation with both 28V DC and 48V DC input systems. Built to meet MIL-STD-461, 704, and 1275 requirements, the VPX360 also features onboard monitoring and control via I²C (IPMI) and USB. All mechanical and electrical interfaces follow the VITA 62 standard.
VPX360EMA
600W 3U VITA 62 VPX power supply Standard Version, 48V key, MIL-STD-461, -704, -1275 compliant, with standard acrylic conformal coating [Input] 48V DC VS1 [+12V] 40A VS2 [+3.3V] 20A VS3 [+5V] 40A Vaux1 [+12V] 1A Vaux2 [-12V] 1A Vaux3 [+3.3V] 6A
