VME64x 7U 84HP 17 Slots Datasheet
1.68 MB | March 26, 2026

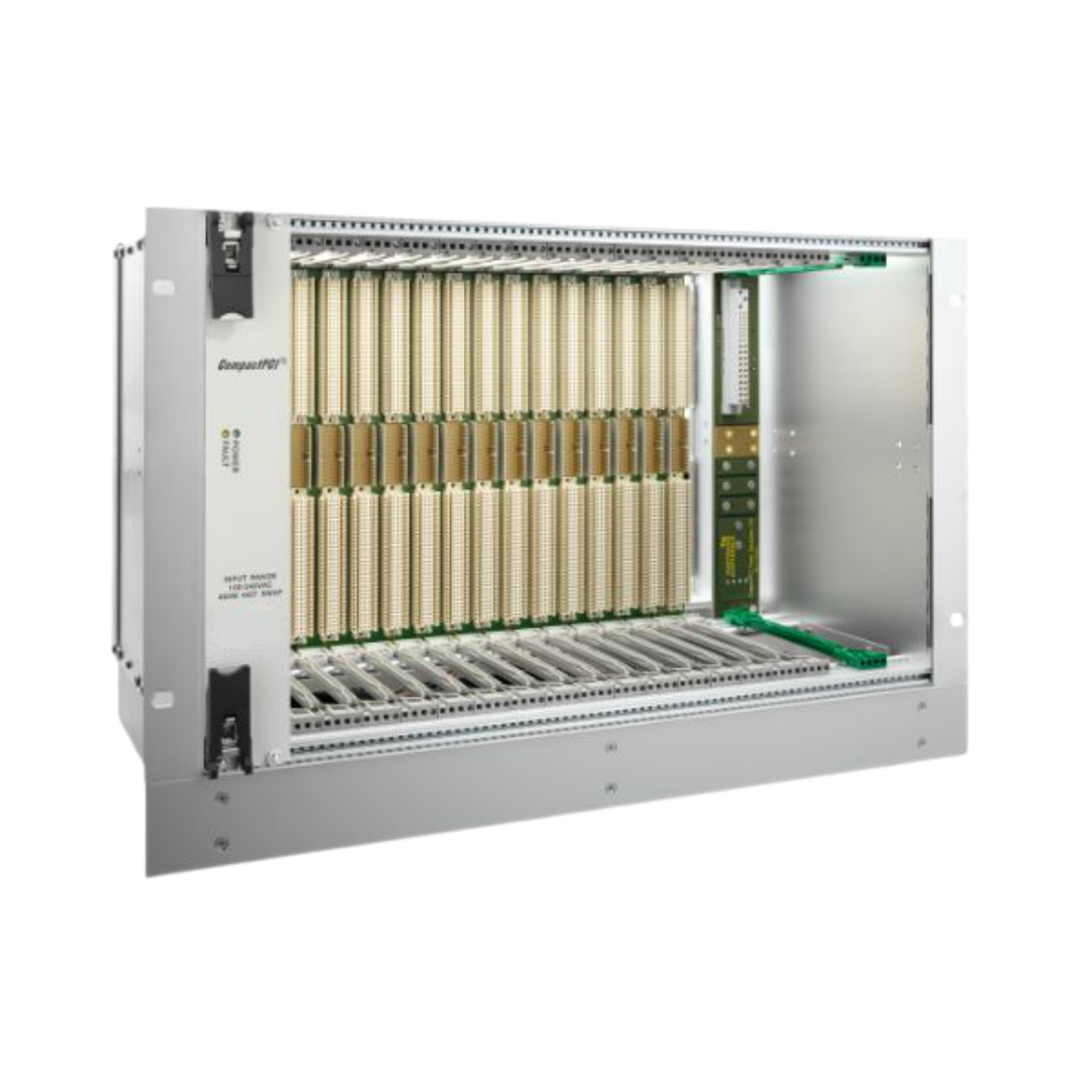

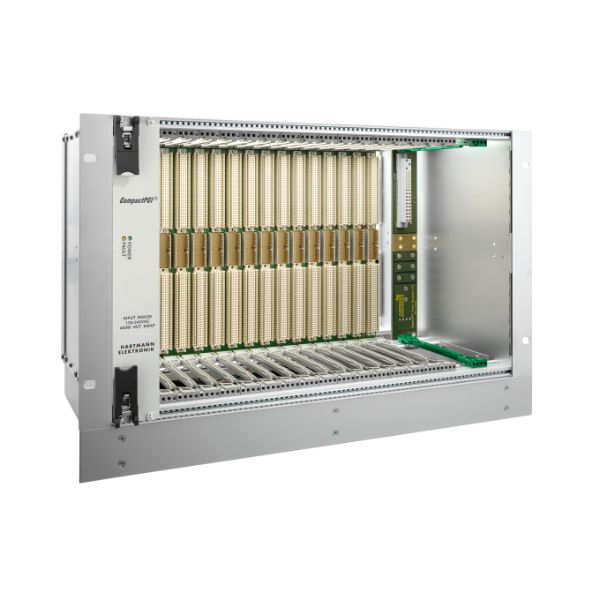

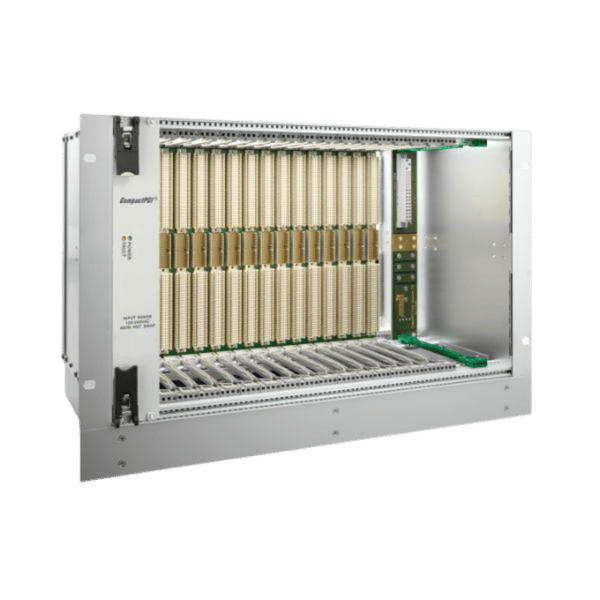

VME64x 7U 84HP 17 Slots
The VME64x 7U/84HP 17 Slots chassis by Hartmann Electronic is a high-capacity, 19" rack-mountable solution designed for industrial applications.

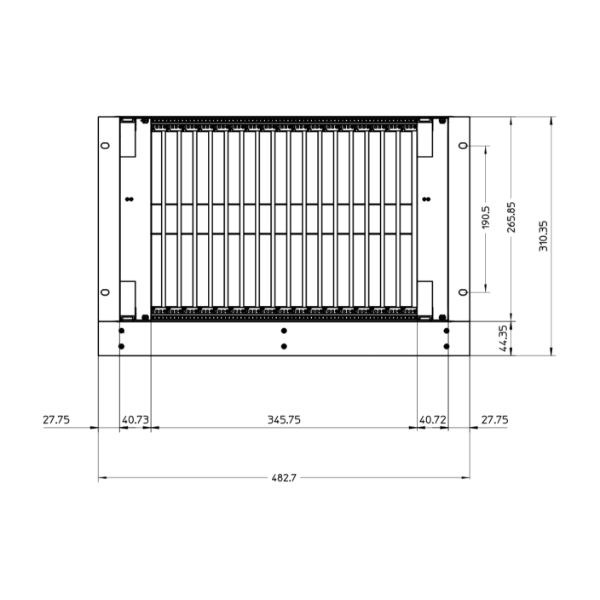

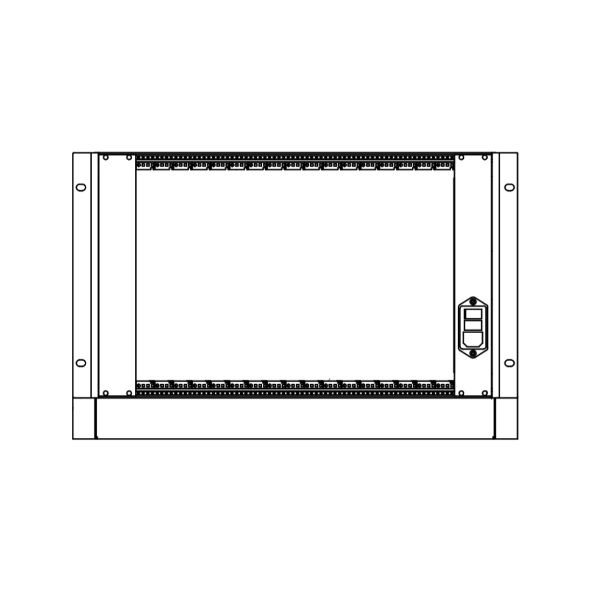

- Form Factor & Mechanics: 7U chassis, 84HP width, 19" rack-mountable; dimensions 31.04 × 48.26 × 28.31 cm

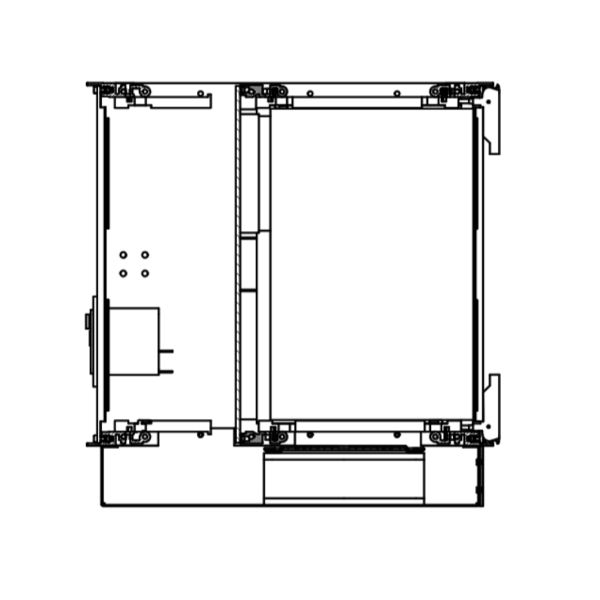

- Slots & Backplane: 17 slots (16× 6U VME64x + 1× 3U power); monolithic backplane with J0 connectors, automatic daisy-chain/bus grant, active termination, 2× P47 connectors

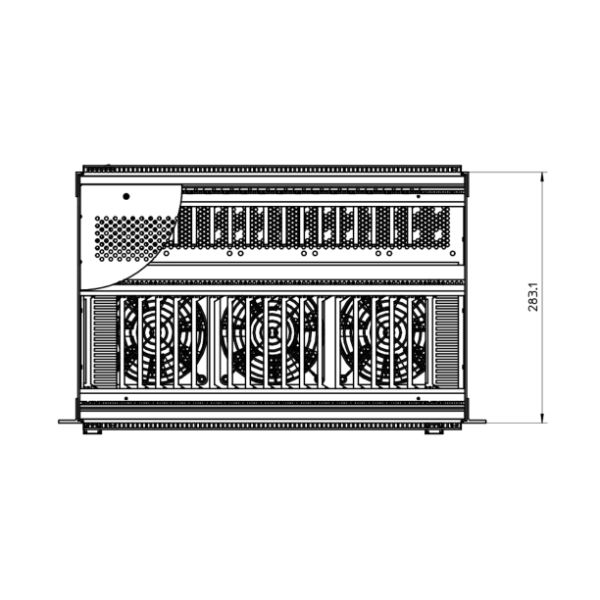

- Cooling & Airflow: Fixed fan tray with 3 axial fans (120 mm, 120 CFM each, 48 dB(A)); bottom-to-top airflow
- Power Supply: 2× 400 W cPCI hot-swap power supplies; input 90–264 V AC, 47–63 Hz
- Output & Compliance: Outputs +3.3 V / 55 A, +5 V / 55 A, +12 V / 14 A, −12 V / 4 A; compliant with VITA 1.1-1997, IEEE 1101.1 & 1101.10/11, IEC 60297-3-101/-102/-103
Product Information
The VME64x 7U/84HP 17 Slots chassis offers a high-capacity solution for industrial applications requiring a 19" rack-mounted platform. Its monolithic backplane design and dual hot-swap power supplies ensure reliable performance, while the fixed fan tray provides effective cooling. This chassis is ideal for applications where high performance and scalability are essential.
Technical data
| Capacity | High-capacity 7U height for extensive module configurations |
|---|---|
| Backplane | 17-slot monolithic backplane supporting 6U VME64x modules |
| Hot Swap | Dual hot-swap 400W cPCI power supplies |
| Fan | Fixed fan tray with 3 axial fans for efficient cooling |
| Standard | Conforms to international standards |
