VME64x 2U/84HP 4 Slots Datasheet
1.21 MB | March 26, 2026
VME64x 2U/84HP 4 Slots

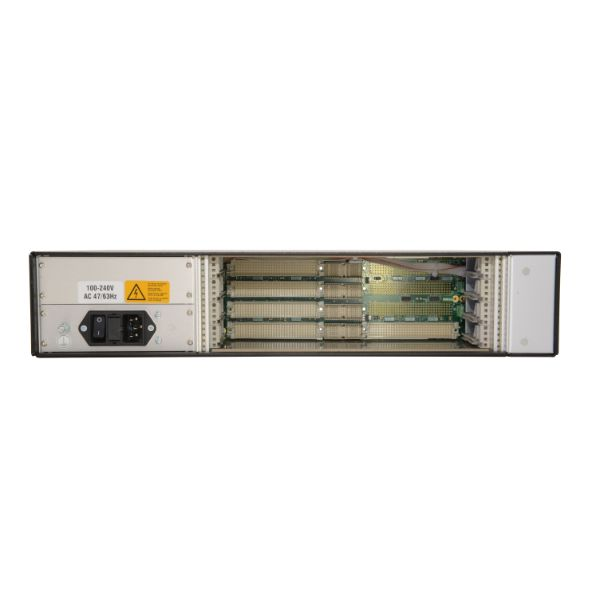

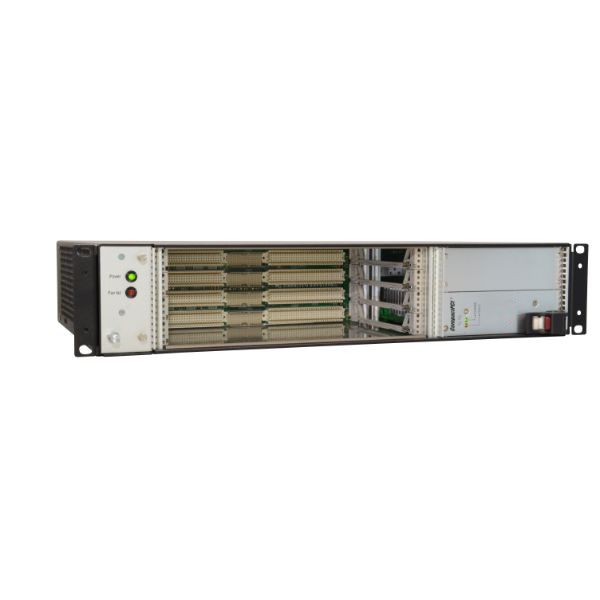

The VME64x 2U/84HP 4 Slots chassis by Hartmann Electronic is a compact and efficient solution designed for industrial applications requiring a 19" rack-mounted platform.

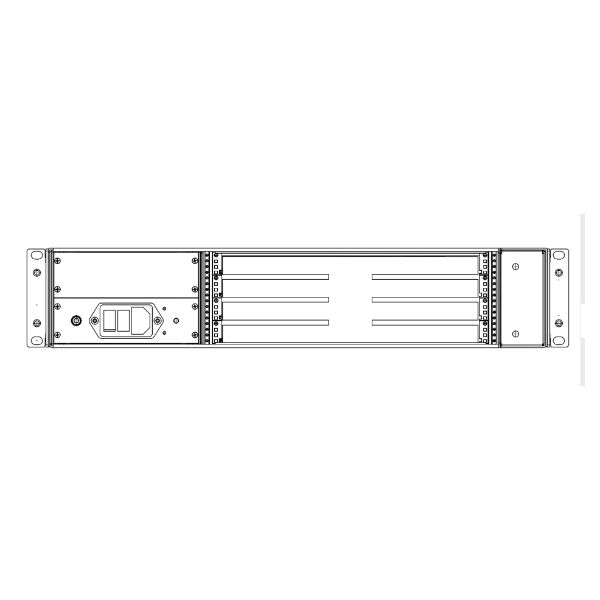

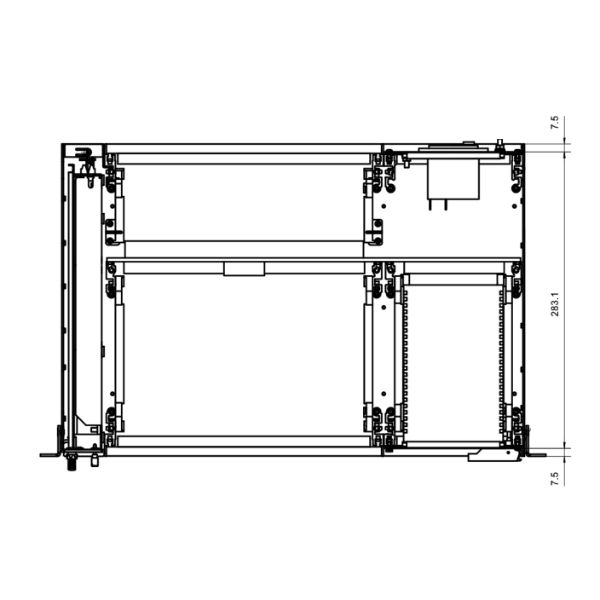

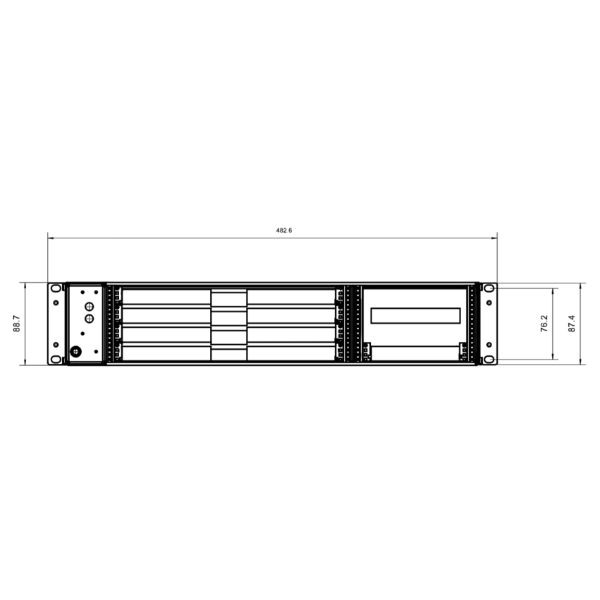

- Form Factor & Mechanics: 2U chassis, 84HP width; dimensions 88.9 mm (H) × approx. 420 mm (W) × 283.1 mm (D)
- Slots & Backplane: 4 slots (3× 6U VME64x + 1× 3U power); monolithic backplane with J0 connectors, automatic daisy-chain/bus grant, active termination, 1× P47 connector
- Cooling & Airflow: Removable fan tray with replaceable dust filter and LED indicators for power/fan failure; left-to-right airflow
- Fans: 3 fans, 51.5 CFM each, 37 dB(A)
- Power Supply & Output: 300 W cPCI hot-swap power supply; input 90–264 V AC, 47–63 Hz; outputs +3.3 V / 40 A, +5 V / 40 A, +12 V / 10 A, −12 V / 2 A
Product Information
The VME64x 2U/84HP 4 Slots chassis offers a compact and efficient solution for industrial applications requiring a 19" rack-mounted platform. Its monolithic backplane design and hot-swap power supply ensure reliable performance, while the removable fan tray provides effective cooling. This chassis is ideal for applications where space is limited, and high performance is essential.
Technical data
| Mounting | 19" rack-mountable |
|---|---|
| Compliance | IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 |
| Military Shipboard | MIL-STD-810F: 514.5C-15 (vibration) |
| Military Highway | MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock) |
| Railway | EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)Compact 2U height for space-constrained environments |
