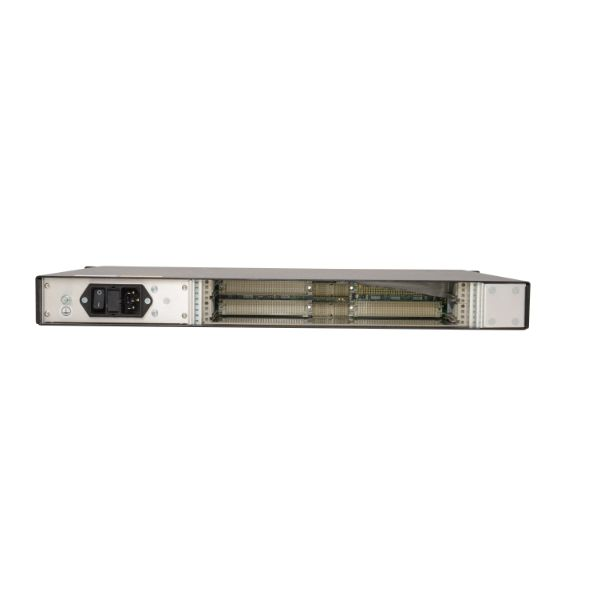

VME64x 1U/84HP 2 Slots
The VME64x 1U/84HP 2 Slots chassis by Hartmann Electronic is a compact and efficient solution designed for industrial applications requiring a 19" rack-mounted platform.
- Form Factor: 1U height, 84HP width

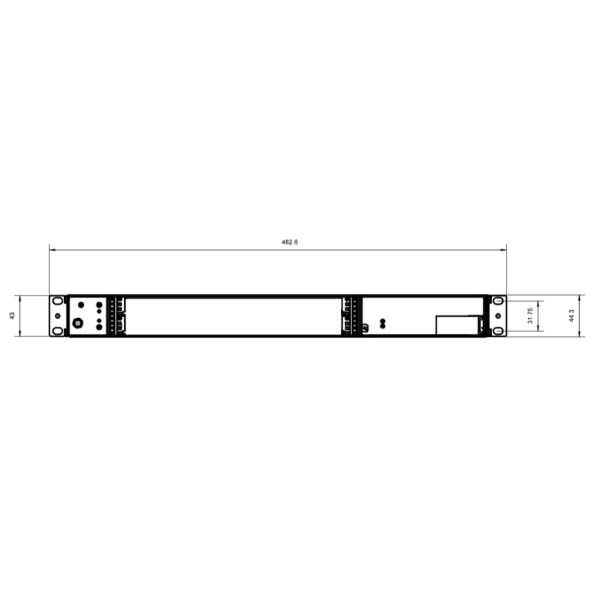

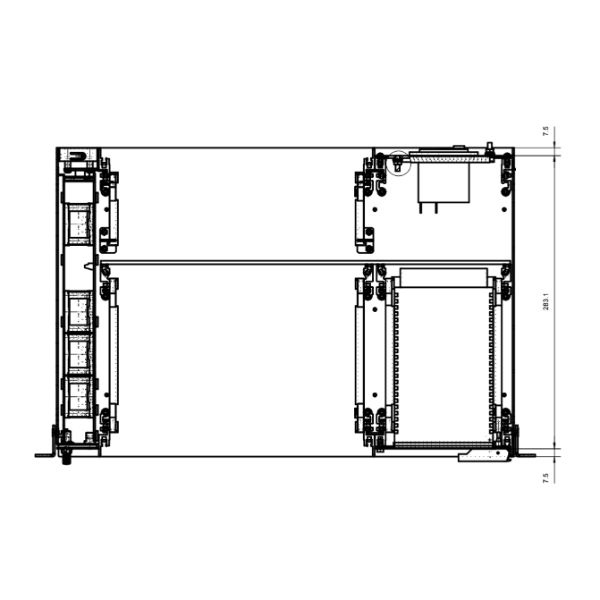

- Dimensions: Height: 44.45 mm, Width: 84HP (approx. 420 mm), Depth: 305 mm
- Slots: 2 slots (1x 6U VME64x, 1x 3U power)
- Backplane: Monolithic design with J0 connectors, automatic daisy chain/bus grant, active termination, and 1x P47 connector
- Cooling: Removable fan tray with 4 fans (13.1 CFM each, 42.5 dB(A))
Product Information
The VME64x 1U/84HP 2 Slots chassis offers a compact and efficient solution for industrial applications requiring a 19" rack-mounted platform. Its monolithic backplane design and hot-swap power supply ensure reliable performance, while the removable fan tray provides effective cooling. This chassis is ideal for applications where space is limited, and high performance is essential.
