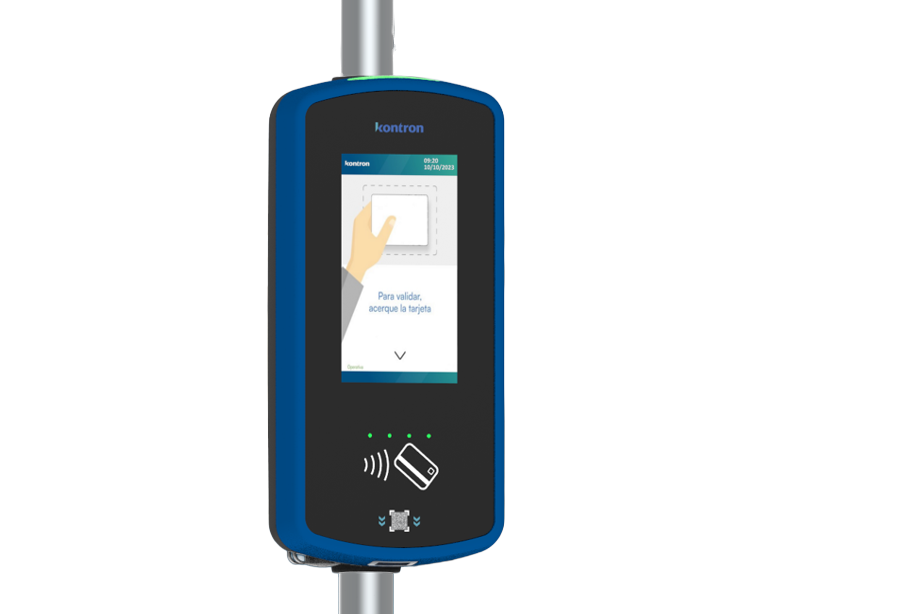

Validation and Selling Terminal TVV-100

Modular and compact device suitable for installation in the limited space of a bus and able to withstand the vibrations associated with onboard equipment.

• Easy maintenance and simple component replacement.

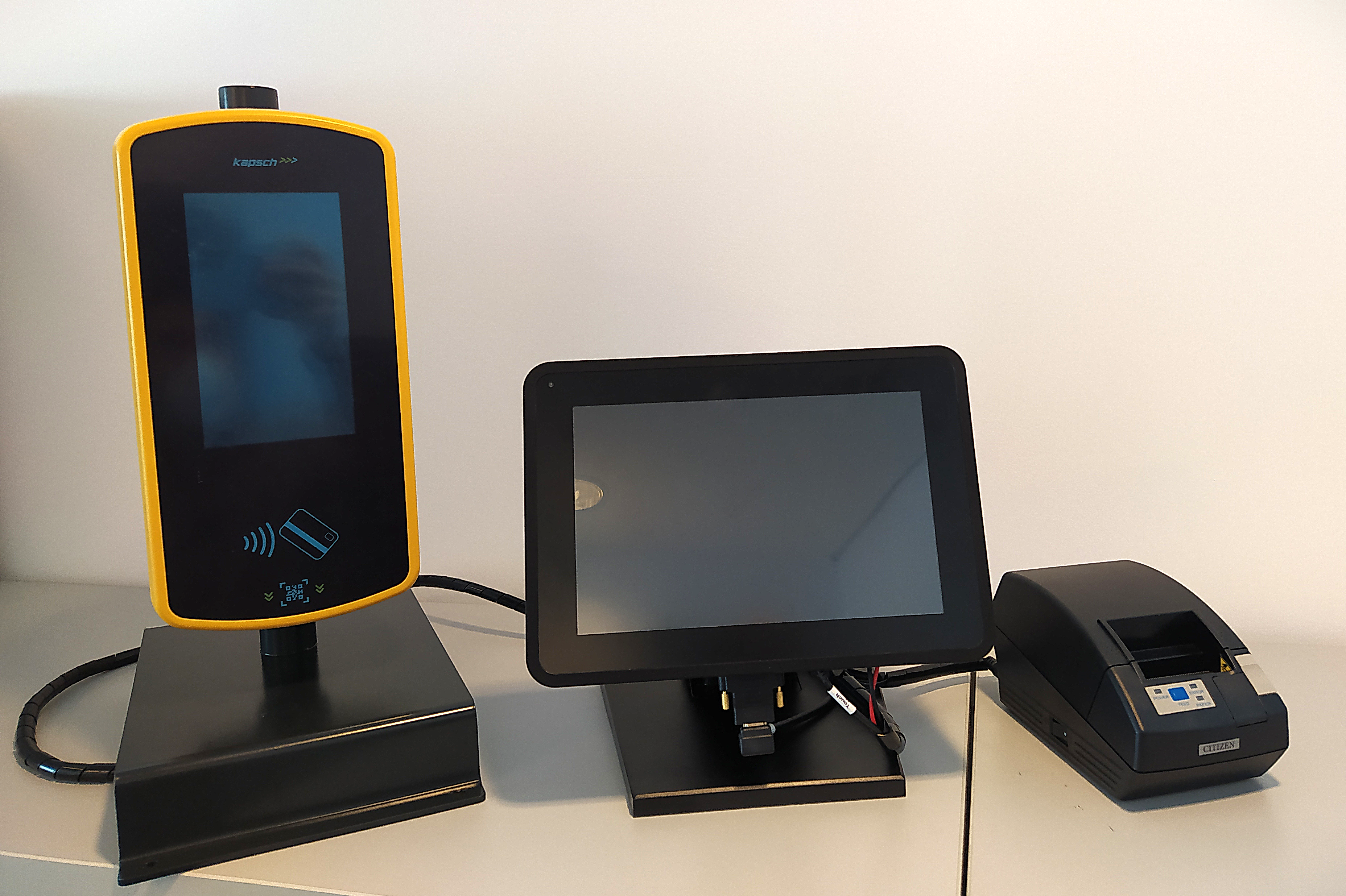

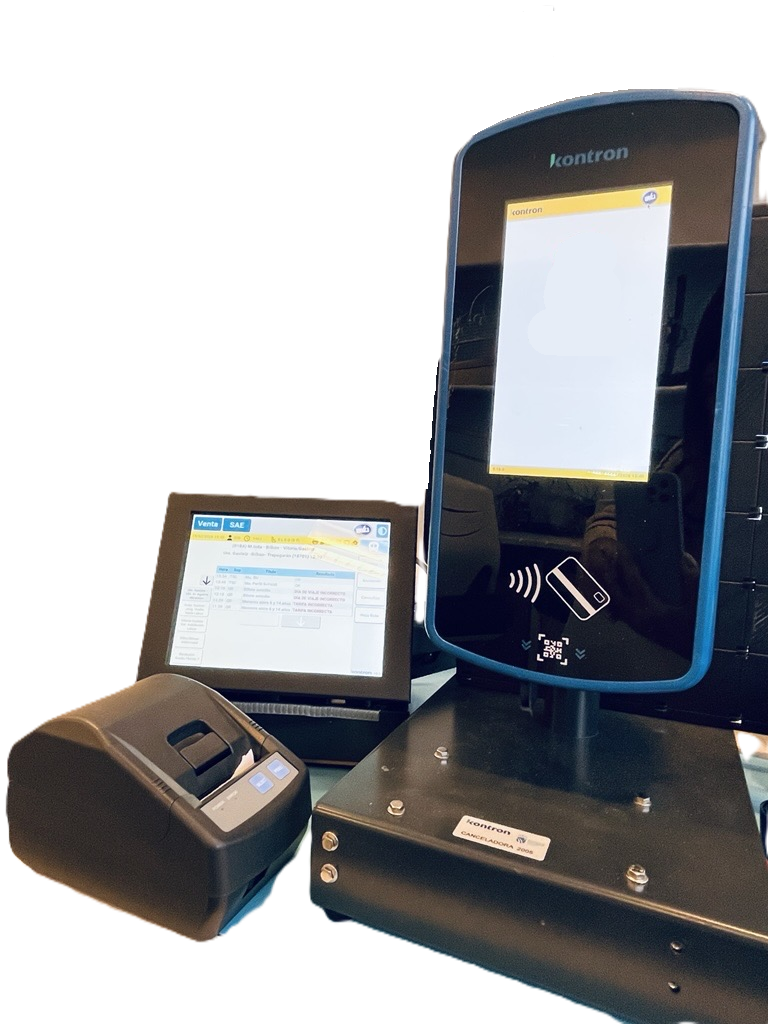

• Formed by a validator and and external TFT touch screen display and an external printer.
• Powerful processing engine that provides fast transaction times.
• Includes a processor: NXP i.MX 8M PLUS 1.6 GHz Quad Cortex®-A53-ka-Ro electronics-TX8P main CPU.

The driver's console validator incorporates a single reader for TSC technology transport cards and EMV bank cards. The proposed reader complies with international EMV Level 1 and Level 2 security requirements, as well as PCI PTS 5.X, and is currently the only reader certified by Redsys for using bank cards as identification for public transport (Transit model). This device supports Desfire and Mifare contactless cards and NFC technology.
Contactless read/write unit ISO14443 Type A/B.
Maximum security for data transmission during cancellation, operation, and configuration, through the incorporation of SAM modules.
Possibility of autonomous operation, with high data management and storage capacity.
Downloadable firmware and operating parameters, and self-diagnostic functions.

• QR/Barcode scanner interface
• RGB LED guiding lighting system
• 7" user interface displays
• Integrated audio system
• External TFT display (interface HDMI) 8" or 10"
• External Printer
