Dual-Slot 64-bit/66MHz PCI-X PMC Carrier
Mouseover Zoom loading...
  • 6U Dual 64/100 PMC VME carrier
  • PCI-Express x4 interface onto 5GHz P0 connector
  • 3.3V PCI signaling, 5V tolerant for PMC-1
  • Commercial Air-Cooled and Rugged Conduction-Cooled versions
  • PMC rear I/O routed to P2

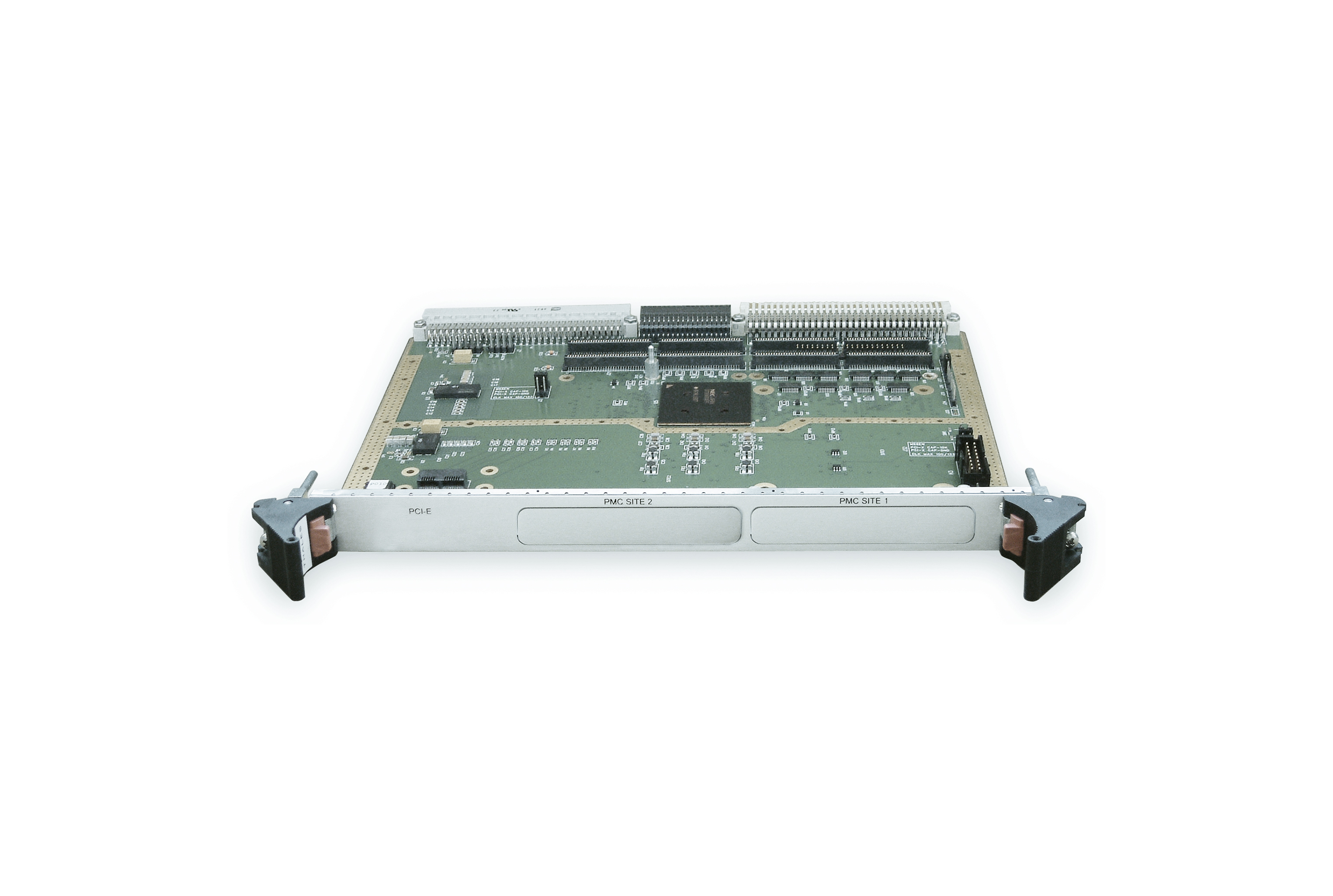

The V2PMC2 PCI-X/PMC carrier card is a 6U VME that holds up to two single-width or one double-width PCI-X/PMC modules. The V2PMC2 works in association with a PCI-Express host which is connected to it through a x4 PCI-Express serial link onto P0 connector.



Dual-Slot, High Performance 64-bit/66 MHz PCI-X PMC Carrier
[ pmc-carriers.pdf, 564.9 KB, Aug.31.2017 ]

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]


V2PMC2 User's Guide [restrictions apply]
[ cadta11.pdf, 1.45 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Technical Info

HOW-TO Scan PCI with BIOS EFI tools to detect V2PMC2 on PENTXM2 or PENTXM4 Board
This FAQ describes how to scan PCI with BIOS EFI tools in order to detect V2PMC2 on PENTXM2 or PENTXM4 Board
[ ti08205_scan_pci_with_bios_efi_tool.pdf, 48.11 KB, Nov.27.2013 ]

Download Request for patches and legacy FAQs access on our ftp site [restrictions apply]
This file explains how download our patches for linux as well as legacy systems from our ftp web site. A folder containing our ancient FAQs has been done to let the customer consult the given hints concerning legacy Kontron modular computers boards and products.
[ ti08270_ftp_web_access.pdf, 16.19 KB, Nov.27.2013 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
