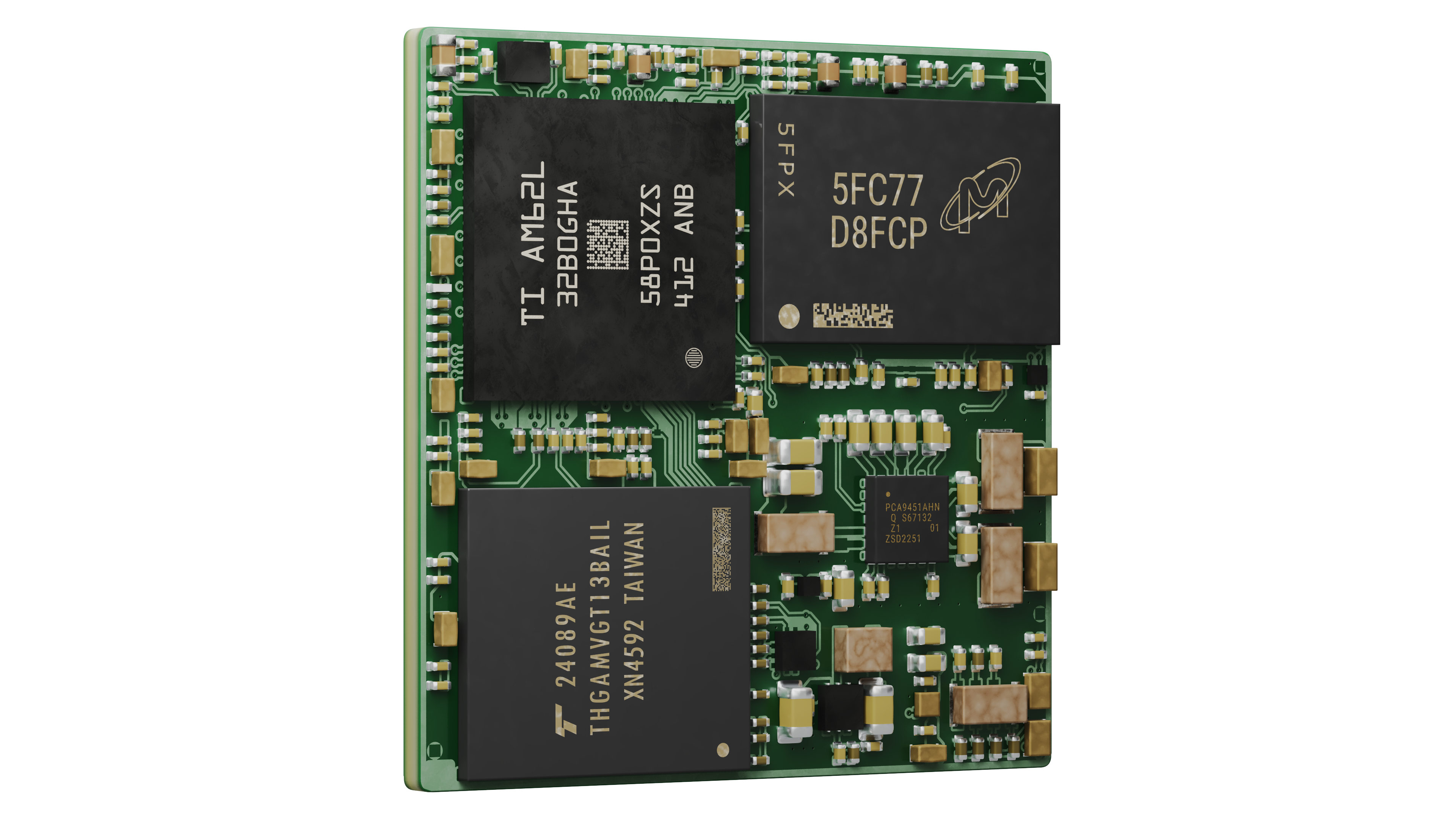

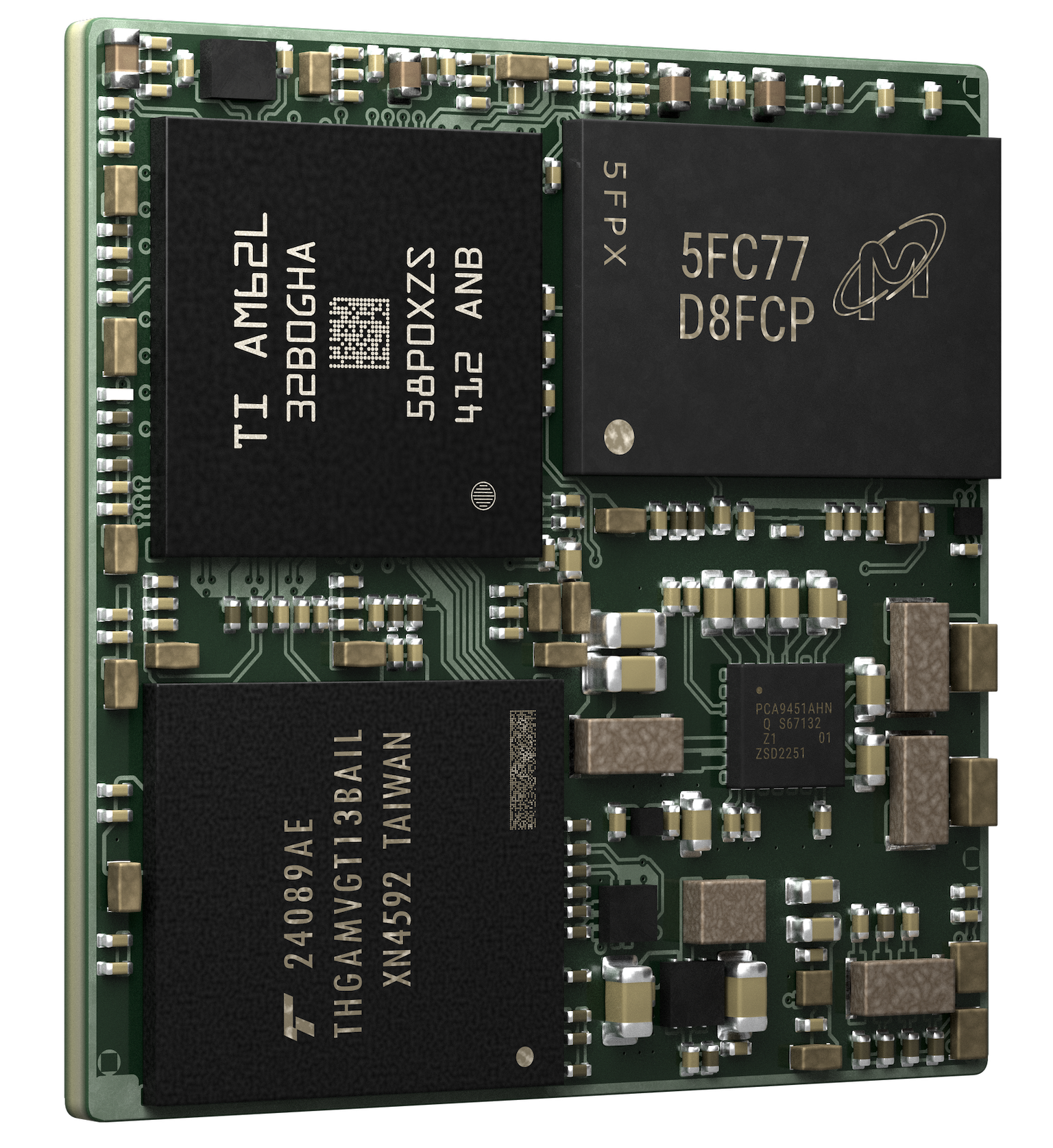

SoM OSM-S AM62L New
Open Standard Module™ (OSM) with TI AM62L Processor
Specifications
- 2x Arm® Cortex®-A53 @1.25 GHz
- LPDDR4-RAM, eMMC 4 GB up to 128 GB
- 2x 1 Gbit/s with Time Sensitive Network
- 2x CAN FD
- SM-Size-S, form factor 30 mm x 30 mm
The OSM-S AM62L from Kontron Electronics is a compact System-on-Module complying with the OSM standard, equipped with an energy-efficient Dual-Core Arm® Cortex®-A53 processor from Texas Instruments. With its space-saving form factor of just 30 x 30 mm, as well as flexible memory options of up to 2 GB LPDDR4 RAM and up to 128 GB eMMC flash, the module delivers an optimal combination of performance, power consumption and cost efficiency. Its full machine-processability for soldering, assembly and testing ensures quick and easy integration into a wide range of embedded applications.
Performance & Architecture
At the heart of the OSM-S AM62L is the powerful TI AM62L Dual-Core Arm® Cortex®-A53 processor, operating at a clock speed of 1.25 GHz. The module also features advanced pin multiplexing and a sophisticated LPDDR4 RAM layout, which has already been implemented. With Embedded Linux (Yocto Distribution) as the operating system and a supply voltage of only 5 V, the OSM-S AM62L is ideally suited for fanless systems in continuous operation. Integrated security features such as Secure Boot, Trusted Execution Environment and cryptographic acceleration (AES, SHA2, DRBG, PKA) ensure a high level of data security.
Communication Interfaces
The OSM-S AM62L offers a wide range of modern communication interfaces: two Gigabit Ethernet ports with Time Sensitive Network (TSN), two CAN FD interfaces, as well as numerous I/O options such as USB 2.0, UART, I²C, SPI, GPIO, PWM, SAI, SDIO and ADC. For integrating user interfaces, there is a MIPI DSI and an RGB interface available, both supporting resolutions up to 1920 x 1080 at 60 fps. This array of features enables powerful and future-proof communication, meeting the demands of challenging applications in industry, medical technology or building automation.
Areas of Application & Advantages
The OSM-S AM62L is ideally suited for human-machine interfaces (HMI), smart home solutions, patient monitoring systems, advanced EV charging stations, energy infrastructure such as smart meters and solar gateways, as well as mobile or industrial printers and industrial automation technology. The Open OSM Standard makes it easier for system architects and developers to get started with custom board designs, reduces integration effort, and shortens time-to-market for innovative, customer-specific products. Thanks to its energy efficiency and high reliability, this SoM module is the perfect choice for embedded applications.
Features
| CPU | TI AM62L, 2x Arm® Cortex®-A53 @1.25 GHz |
| LPDDR4-RAM | 1 GByte, optional 512 MByte, 2 GByte |
| eMMC | 4 GByte, optional up to 128 GByte |
| EEPROM | 8 kByte |
| Ethernet | 2x 1 Gbit/s IEEE 1588 (with TSN) |
| USB | 2x USB 2.0 (Host or Device) |
| I/Os | 5x UART, 2x I²C, 2x SPI, 15x GPIO, 3x PWM, 1x SAI, 2x SDIO 4-bit, 2x ADC |
| CAN | 2x CAN FD |
| Display | 1x MIPI DSI (4-lane), 1x RGB 18 bit Up to 1920 x 1080 @60 fps |
| Power Supply | 5 V DC ±5 % |
| IO Voltage | TBD |
| Power Consumption | TBD |
| Temperature range | -25 °C to +85 °C, ambient, non-condensing |
| RTC (I²C) | 45 nA/1ppm @25 °C |
| Operating System | Embedded Linux (Yocto Distribution) |
| Form Factor | 30 x 30 mm OSM Size S |
| Footprint | 332 Pin/1.25 mm pitch |
| Safety | Secure boot, Trusted Execution Environment (TEE), Dedicated Security Controller, AES – 128-/192-/256-bit, SHA2 – 224-/256-/384-/512-bit, DRBG, PKA |
