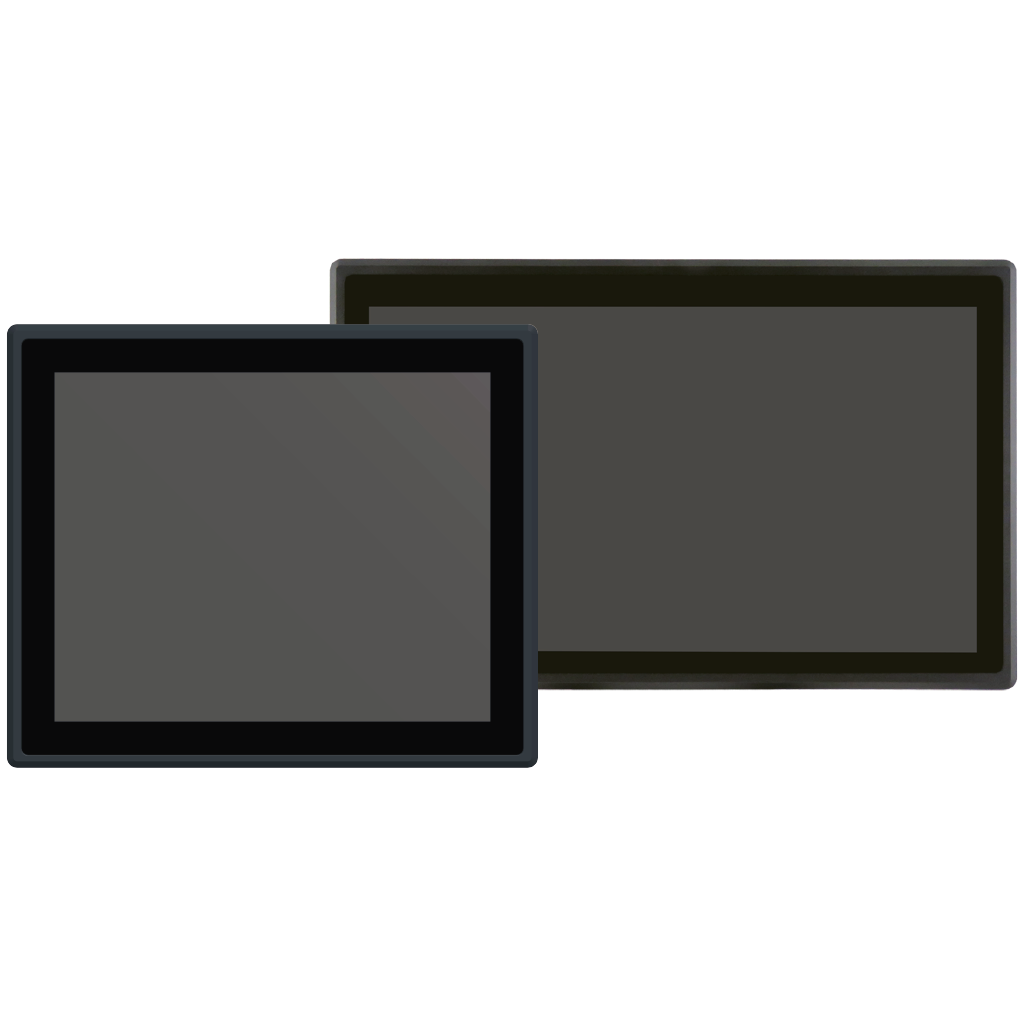

SmartClient-SLU
21.5" / 17" 10-point PCAP Flat Panel PC with 6th Gen Intel® Core™ U-Series Processors
- 1x DP, 1x HDMI 2.0 for secondary / tertiary display
- 2x GbE LAN for Ethernet
- 4x USB 3.0, 2x RS232/422/485, 8-bit DIO (17" model only) for peripheral connection
- 1x 2.5” SATA 3.0 HDD / SSD for storage
- 1x mPCIe, 1x M.2 Key B for expansion
Multi-touch Function, Passive Cooling, Anti-Spray
Kontron SmartClient-SLU is a 21.5" / 17" flat panel PC powered by 6th Generation Intel® Core™ U-Series Processors and can provide both great processing / graphics performance and power efficiency.
Intuitive User Interface
It supports 10-point PCAP multi-touch function to simplify operator's interaction with the system and to enhance the efficiency of the automation process. 21.5" models support 16:9 aspect ratio and can provide comfortable viewing experience and allow multi-window display without toggling.
Anti-spray & Anti-scratch
The SmartClient-SLU has IP65-rated flat panel front design with 6H hardness glassy surface, which is resistant against water spray, contamination, scratch or abrasion. It is therefore able to installed under a variety of harsh conditions.
Expansibility
In addition to 1x DP, 1x HDMI 2.0, 2x GbE LAN, 4x USB 3.0 and 2x RS232/422/485 for display output, Ethernet and peripheral applications, it reserves 1x mPCIe and 1x M.2 Key B, allowing users expand it with extra SSD storage, WLAN / 3G / 4G wireless network or other possible functionality.
Technical data
| Processor | Intel® Core™ i5-6300U (Dual Core, 3M Cache, up to 3.00 GHz, FCBGA1356, 15 W TDP) Intel® Core™ i3-6100U (Dual Core, 3M Cache, 2.30 GHz, FCBGA1356, 15 W TDP) |
|---|---|
| Main Memory | 2x DDR4 2133 SO-DIMM up to 16 GByte |
| Graphics Controller | Intel® HD Graphics 520 |
| Display | 17" (1280 x 1024) 5:4 / 21.5" (1920 x 1080) 16:9 10-point PCT LCD Display 1x HDMI 2.0 (on rear, 4096 x 2160 @ 60 Hz) 1x DP (on rear, 4096 x 2304 @ 60 Hz) Triple display support |
| Audio Controller | Realtek ALC662 |
