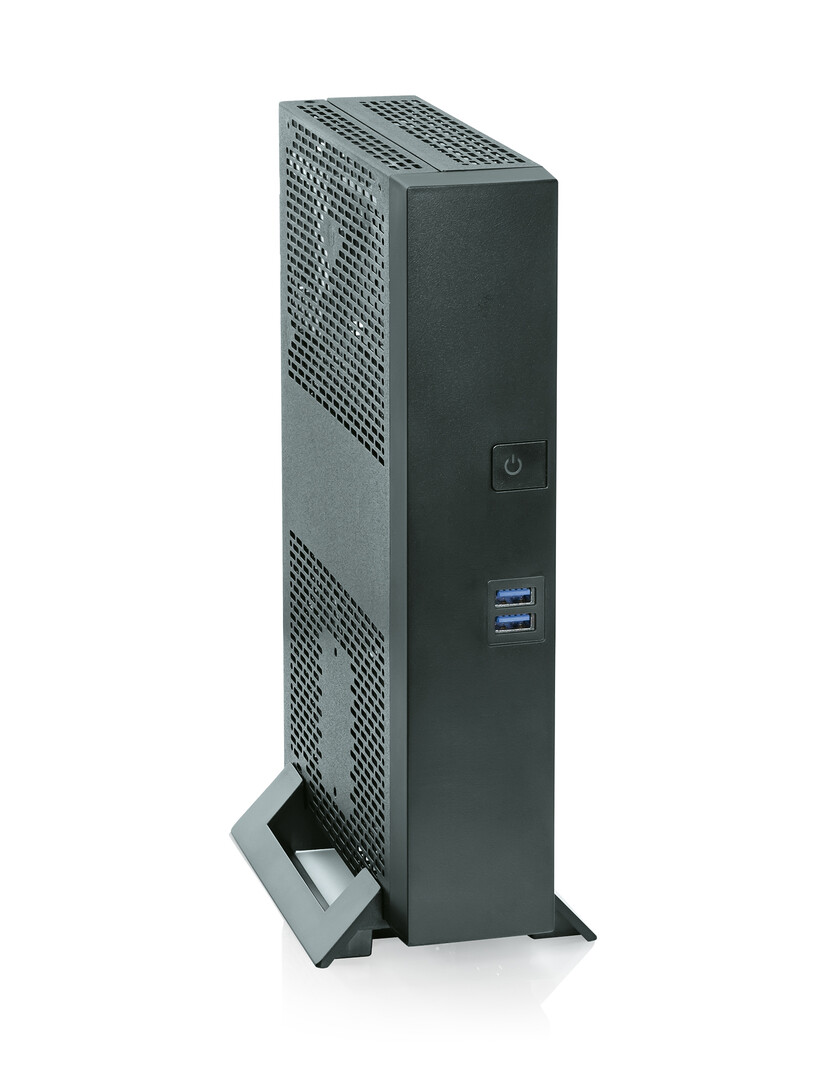

SMARTCASE™ S720

Chassis Kit Solution for D363x-S mITX
Mouseover Zoom loading...
Specifications
  • Compact Design (250 x 52 x 191 mm)
  • Dual Front USB 3.1 Connectors (available from Q4/2021)
  • Low Profile Extension Slot
  • Option for Internal 65W PSU Module
  • Horizontal and Vertical Stand plus Wall Mount Bracket
Download Datasheet

The SMARTCASE™ S720 can be equipped with four motherboards: the Kontron D3433-S mITX, the D3434-S mITX, and the Kontron D3633-S mITX and D3634-S mITX. The boards can be equipped with Intel® Core™ i CPUs of the 6th, 7th, 8th and 9th generation. Thanks to a low profile slot for PCIe expansion cards and a 2.5" drive bay, the system can be expanded despite its compact design. The S720 can be used in horizontal and vertical mode.

Downloads

Datasheets

Datasheet SMARTCASE S720
[ ds_smartcase_s720_frontusb.pdf, 604.12 KB, Jul.07.2021 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Tech Specs SMARTCASE™ Family
[ tech-specs_smartcase.pdf, 1.55 MB, Jun.01.2021 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

Active Cooler LGA1151
S26361-F5000-C011
Active Cooler LGA1151 Low-rise active cooler suitable for D3674-B and SMARTCASE™ S720 chassis
Internal PSU for chassis Kit
S26361-F5000-P004
Internal PSU for chassis Kit AC Adapter, 12V / 5.4A, 65W, low profile extension card format
COM Cable "long"
S26361-F5000-K010
COM Cable \ with fullsize slot bracket
Risercard
S26361-F5000-R006
Risercard 1 x PCIe x4
PCIe x1 LAN Controller
S26361-F5000-R011
PCIe x1 LAN Controller Broadcom LAN controller w/o DASH; incl. FH&LP-Slotbracket
Mini-PCIe to M.2 2230 Converter for WLAN/BT
S26361-F5000-M003
Mini-PCIe to  M.2 2230 Converter for WLAN/BT all Boards with fullsize Mini-PCIe socket
M.2 2230 WLAN Module
S26361-F5000-W003
M.2 2230 WLAN Module WLAN Module Intel 9260 NON VPRO only
