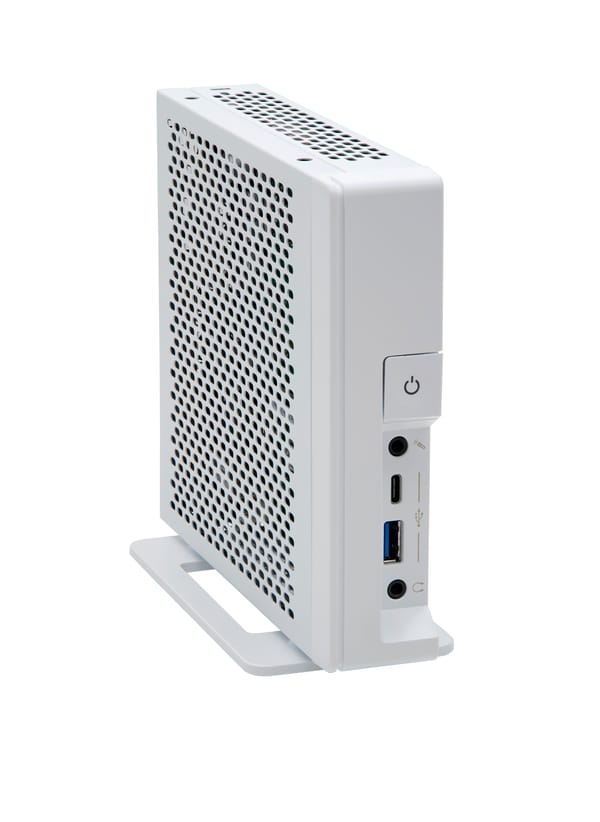

SMARTCASE™ S530
- Ultra-Compact Design (0.87 liter)
- White edition - fits best for medical applications
- Front & Rear USB
- Horizontal or Vertical Operation
- VESA- and Wall Mount Option
Product Information
The compact SMARTCASE™ S530 chassis is designed for the industrial motherboards K3921-H, K3921-N, and K4021-U, based on the latest Intel® Alder Lake N & Twin Lake series and Intel® Core™ Ultra processors. With a housing volume of just 0.87 litres and extensive connectivity and power options, the S530 is an ideal solution for various applications. Its white design makes it particularly well-suited for medical environments.
A comprehensive range of well-matched accessories is also available. The SMARTCASE™ S530 supports both horizontal and vertical mounting orientations and is fully validated and certified.
Technical data
| Dimensions (W x H x D) | 36 x 147 x 165 mm |
|---|---|
| Colour | white |
| Weight | ~ 0.4 kg |
| Operating Temperature | Chassis ambient temperature; upper limit depends on system configuration Active Cooling: -10°C ... +45°C (max. 15W TDP) -10°C ... +35°C (max. 28W TDP) Passive Cooling: -10°C ... +35°C (max. 12W TDP, any position)** -10°C ... +40°C (max. 10W TDP, any position)** -10°C ... +45°C (max. 10W TDP, vertical position) ** Vertical operating position recommended for most favorable cooling & system performance |
| Humidity | 5% - 85% relative humidity (non-condensing) |
