SMARTCASE™ S511

SMARTCASE™ S511 Chassis Kit Solution for D3714-V/R & D3724-R mSTX

Mouseover Zoom loading...

Specifications

Ultra-Compact Design
36 x 147 x 165 mm
Front & Rear USB
Horizontal or Vertical Operation
VESA- and Wall Mount Option

Download Datasheet

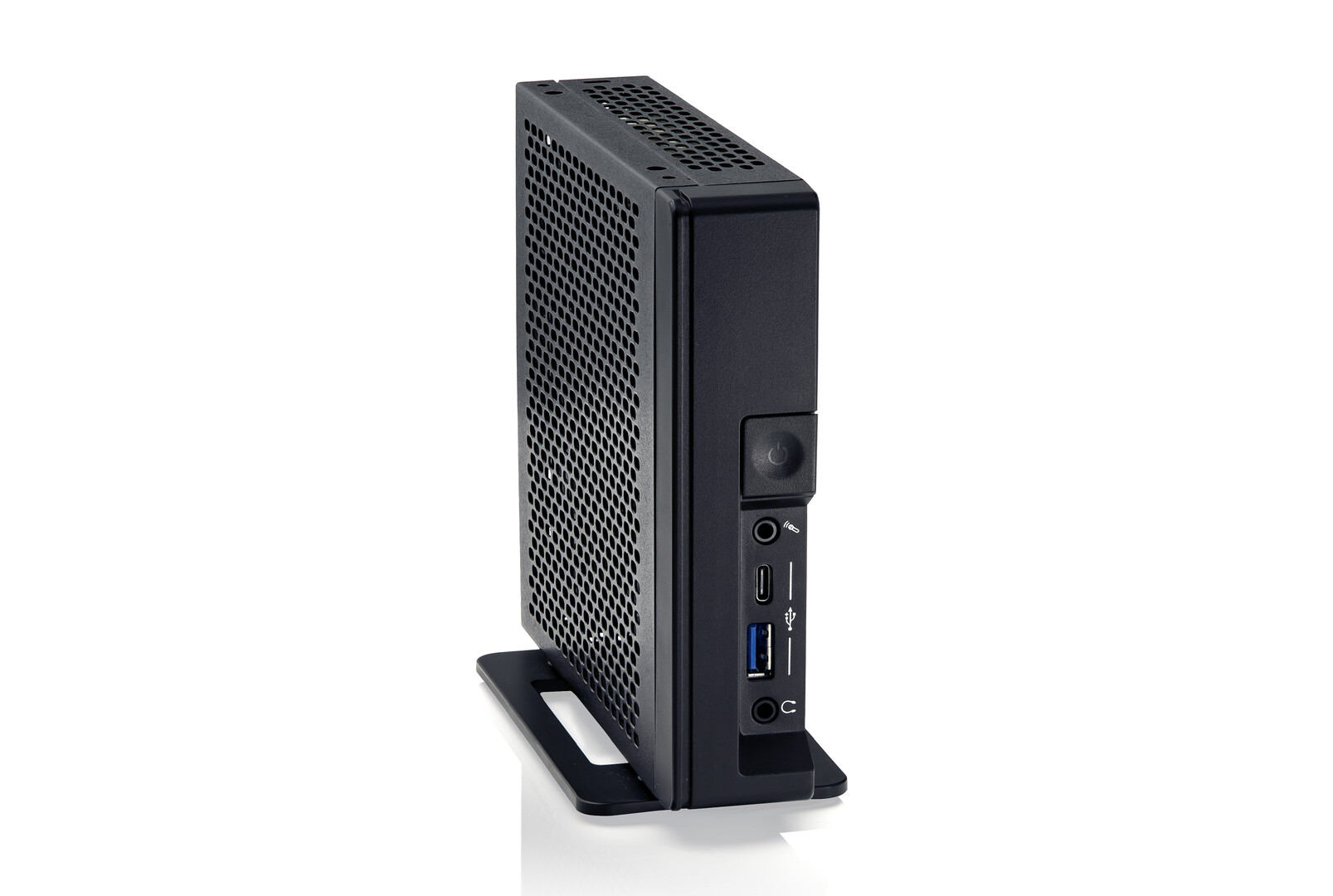

The SMARTCASE™ S511 is a tiny chassis designed for the industrial motherboards D3714-V/R & D3724-R mSTX supporting the AMD Ryzen™ Embedded V/R1000 & R2000 processor series. With a housing volume of only 0.87 litres but lots of connectivity and power inside the S511 fits perfectly for e.g. digital signage and many other applications. The SMARTCASE™ S511 can be used in horizontal and vertical mode.

Downloads

Datasheets

Datasheet SMARTCASE™ S511
[ smartcase_s511.pdf, 3.74 MB, Apr.20.2023 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

Passive Cooler AMD 10W S26361-F5000-C022		Passive cooler for Mini-STX Ryzen Motherboard + Backplate for FP5
AC Adapter S26361-F5000-P006		19V / 3.42A, 65W - w/o power cord
COM Cable short w/o bracket S26361-F5000-K007		w/o slot bracket, length = 120mm; new 2mm pitch internal connector

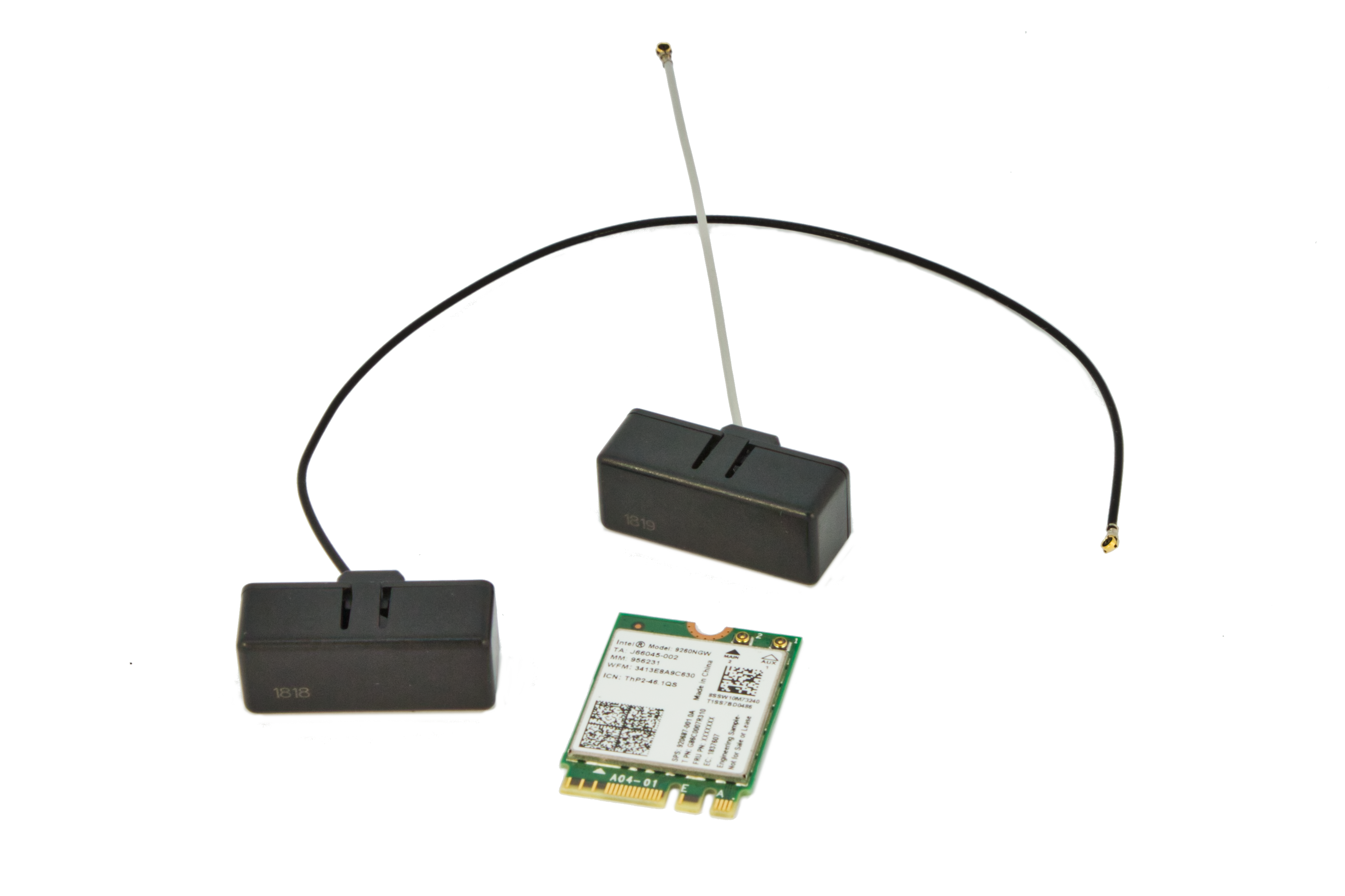

WLAN Kit for SMARTCASE™ S511 S26361-F5000-W005		left (grey)/right (black) Antenna (incl. cable) to be fitted into mSTX chassis
Wall Mount Bracket for SMARTCASE™ S511 S26361-F5000-X001		2x Bracket per chassis incl. screws
VESA mount SMARTCASE™ S511 S26361-F5000-X002		"E-Line bracket"
DC-In Holder for SMARTCASE™ S511 S26361-F5000-X003		Holder incl. screws
DP 20P M to HDMI Adapter F5000-A007		DP 20P M to HDMI Adapter, up to 4k @ 60 Hz
