SMARTCASE™ S500

Chassis Kit Solution for D3544-S mSTX
Mouseover Zoom loading...
Specifications
  • Ultra-Compact Design
  • 36 x 147 x 165 mm
  • Front and Rear USB
  • Horizontal or Vertical Operation
  • VESA- and Wall Mount Option
Download Datasheet Buy now

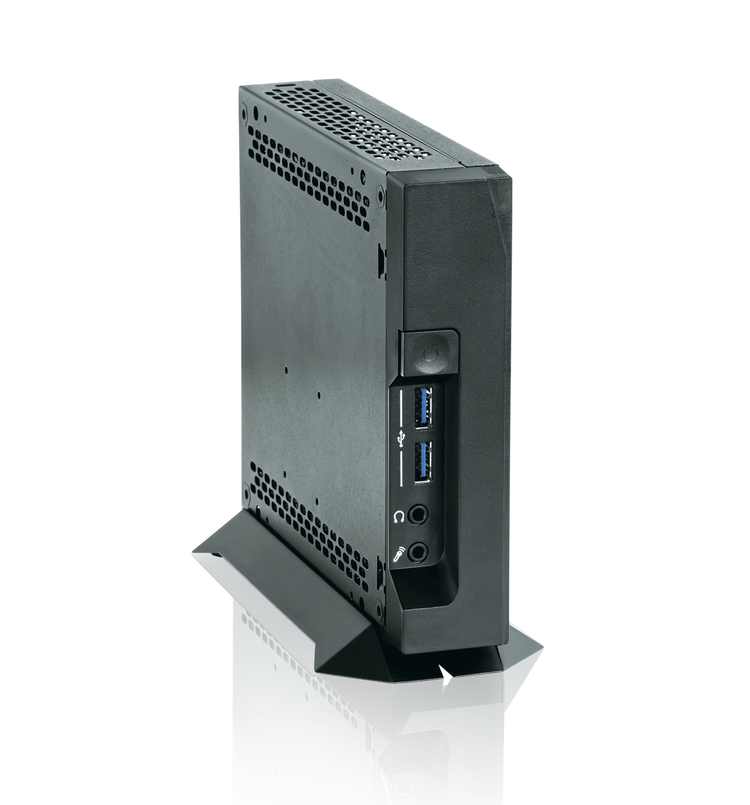

The SMARTCASE™ S500 for industrial motherboards of the D3544-S series in Mini-STX format is designed for the low power Intel® Celeron® and Pentium® processors and supports 2x 4K displays. It has an overall height of 36mm and a housing volume of only 0.87 litres and can be used in horizontal and vertical mode.

Downloads

Datasheets

Datasheet Smartcase S500
[ smartcase-s500.pdf, 1.58 MB, Apr.22.2022 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

Modules and Motherboards WP [restrictions apply]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

Active Cooler 10W GLK
S26361-F5000-C009
Active Cooler 10W GLK Active cooler suitable for D3544-S
Passive Cooler 10W GLK
S26361-F5000-C010
Passive Cooler 10W GLK Passive heatsink suitable for D3544-S
AC Adapter
S26361-F5000-P006
AC Adapter 19V / 3.42A, 65W - w/o power cord
COM Cable short w/o bracket
S26361-F5000-K007
COM Cable short w/o bracket w/o slot bracket, length = 120mm; new 2mm pitch internal connector
USB Typ-C Extension Cable
S26361-F5000-K008
USB Typ-C Extension Cable USB3.1 gen1, length = 140mm; max. load 5V/800mA
COM Cable "long"
S26361-F5000-K010
COM Cable \ with fullsize slot bracket
Second COM Cable active
S26361-F5000-K011
Second COM Cable active short w/o bracket
WLAN Kit for SMARTCASE™ S500/S520
S26361-F5000-W002
WLAN Kit for SMARTCASE™  S500/S520 WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable)
WLAN Kit for SMARTCASE™ S500/S520
S26361-F5000-W005
WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable)
Wall Mount Bracket for SMARTCASE™ S500
S26361-F5000-X001
Wall Mount Bracket for SMARTCASE™ S500 20x Bracket (for 10 chassis) incl. Screws
VESA mount SMARTCASE™ S5xx
S26361-F5000-X002
VESA mount SMARTCASE™ S5xx "E-Line bracket"
DC-In Holder for SMARTCASE™ 500
S26361-F5000-X003
DC-In Holder for SMARTCASE™ 500 10 x Holder (for 10 chassis) incl. Screws
