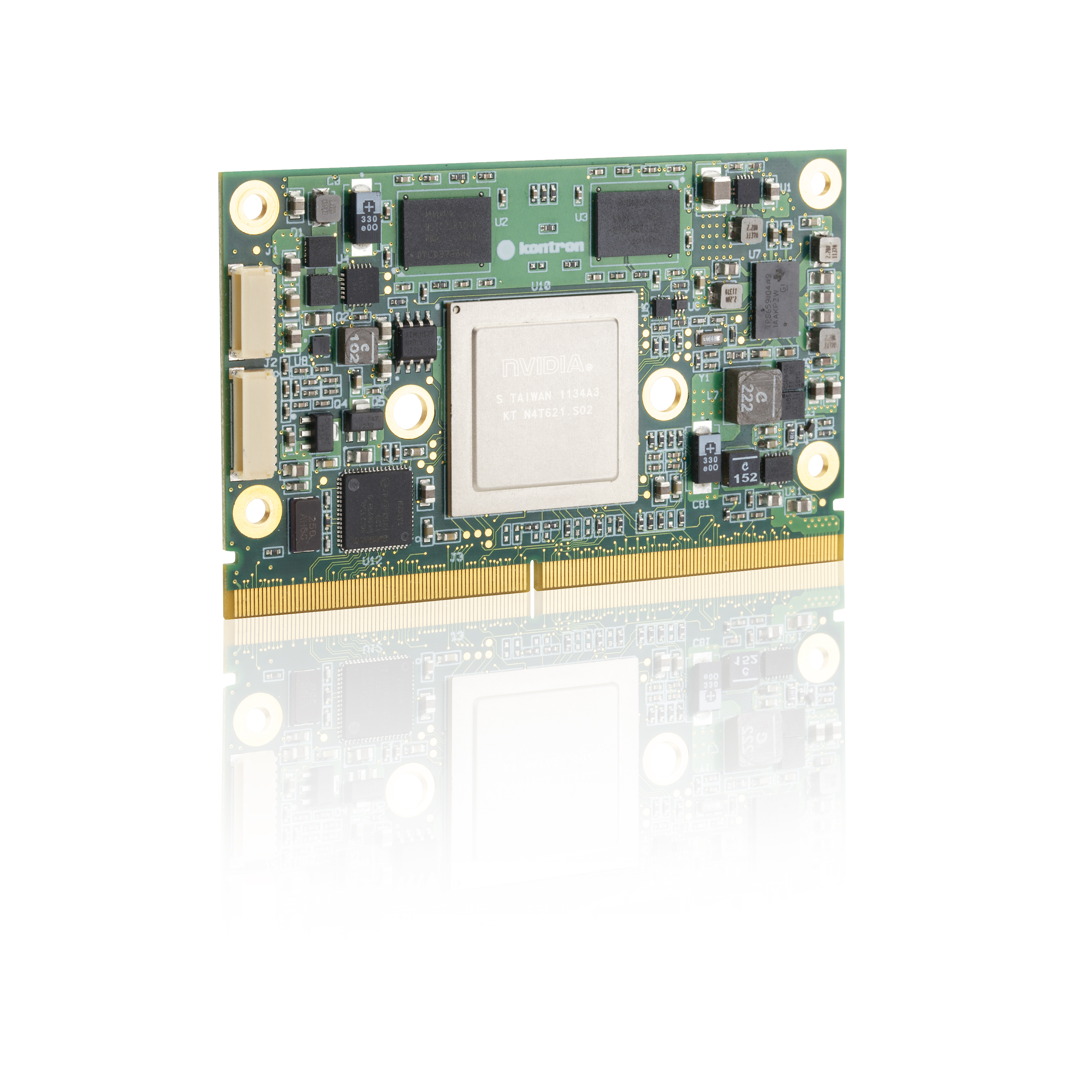

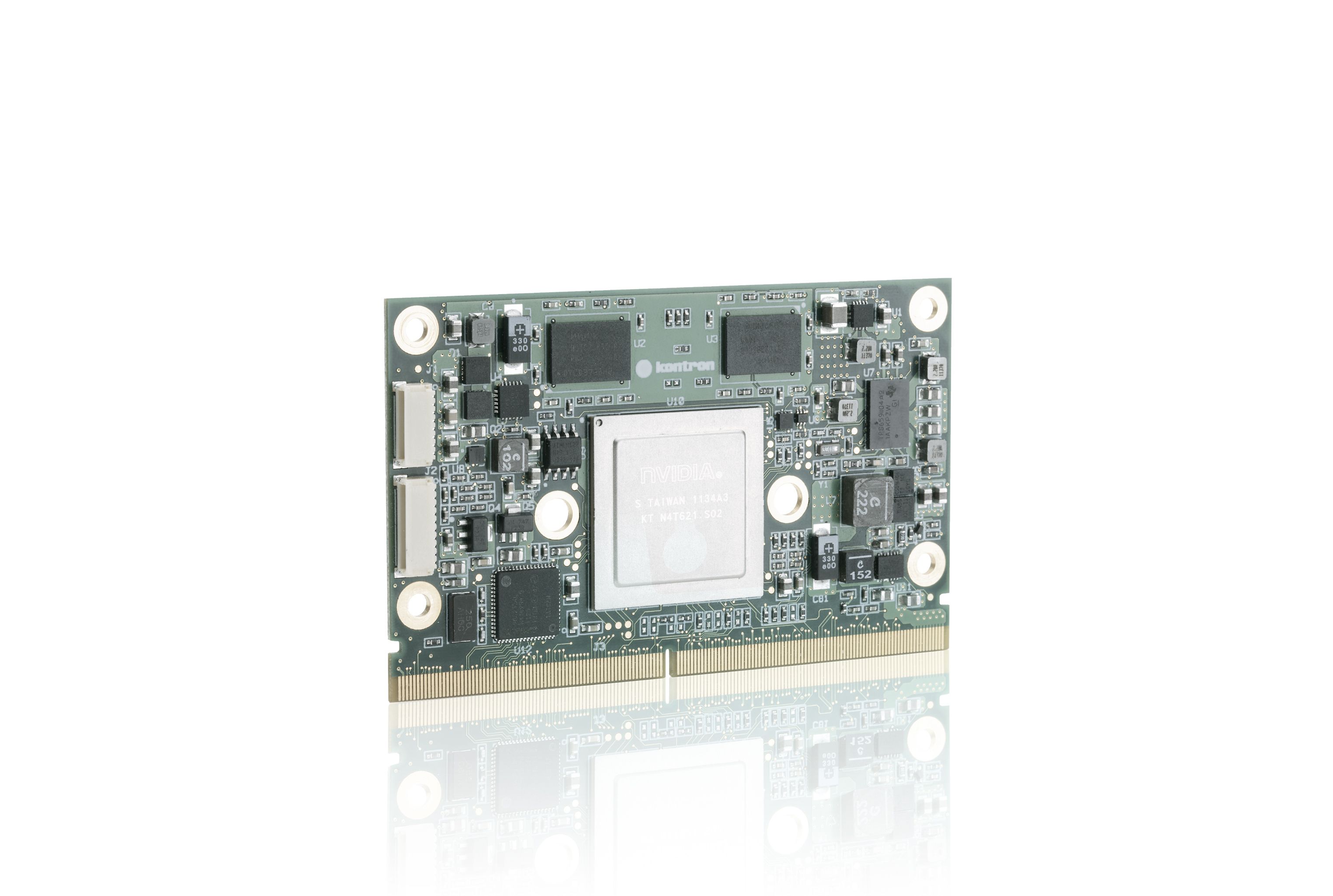

Ultra Low-Power SMARC Module based on Nvidia® Tegra® 3
Mouseover Zoom loading...
  • SMARC Module based on Cortex A9 technology
  • Nvidia® Tegra® 3 Quad Core 1.2 GHz
  • For strong graphics demand
Download Datasheet

Exceptional graphics performance for slim embedded solutions

This ARM®-based short SMARC module is ideal for graphic-intensive applications, requiring low power and low profile.


Compliance SMARC - Smart Mobile Architecture by SGET - small size
Dimensions (H x W x D) 82mm x 50mm
CPU NVIDIA Tegra 3, Quad Core ARM Cortex A9
Main Memory on Board up to 2GB DDR3
Graphics Controller Dual Displays
Ethernet Controller integrated
Ethernet 10/100/1000 Mbit/sec
Flash Onboard 2-64GB eMMC
PCI Express / PCI support x1 PCIe Gen 1
Panel signal LVDS Single Channel 18 bit / 24 bit - 18 bit compatible. Support for dual channel 24 bit LVDS
USB 3x USB 2.0 ports (one OTG)
Serial 2x RX/TX (Ser1/3)
2x UART (Ser0/2)
Interface 1x SDIO, 1x eMMC, 2x SPI, 5x I2C, 3x I2S, 12x GPIO, SPDIF, WDT
Operating System Android ICS, Linux
Power Supply 3V to 5.25V - operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supplies
Power Consumption 5 Watts typical
Temperature 0 - 70C
Humidity 93% relative Humidity at 40°C, non-condensing
(according to IEC 60068-2-78)



SMARC-sAT30 Datasheet (Release Candidate)
[ datasheet_smarc-sat30.pdf, 999.97 KB, Aug.31.2017 ]


SMARC-sAT30 User Guide
[ smarc-sat30-user-guide-v1.0-.pdf, 4.34 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

White Papers

SMARC Specification Overview
[ kontron_smarc_specification_overview.pdf, 1.84 MB, Nov.27.2013 ]

Tech Spec Sheet

Tech Specs SMARC
[ tech-spec_smarc.pdf, 4.29 MB, Mar.06.2023 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section


SMARC™-sAT30 4x1.2 1/16GB
SMARC™-sAT30 4x1.2 1/16GB SMARC™-sAT30 based on nVidia T30 4x 1.2GHzHz 1GB DRAM 16GB SSD Flash
SMARC™-sAT30 4x1.2 2/16GB
SMARC™-sAT30 4x1.2 2/16GB SMARC™-sAT30 based on nVidia T30 4x 1.2GHz 2GB DRAM 16GB SSD Flash
