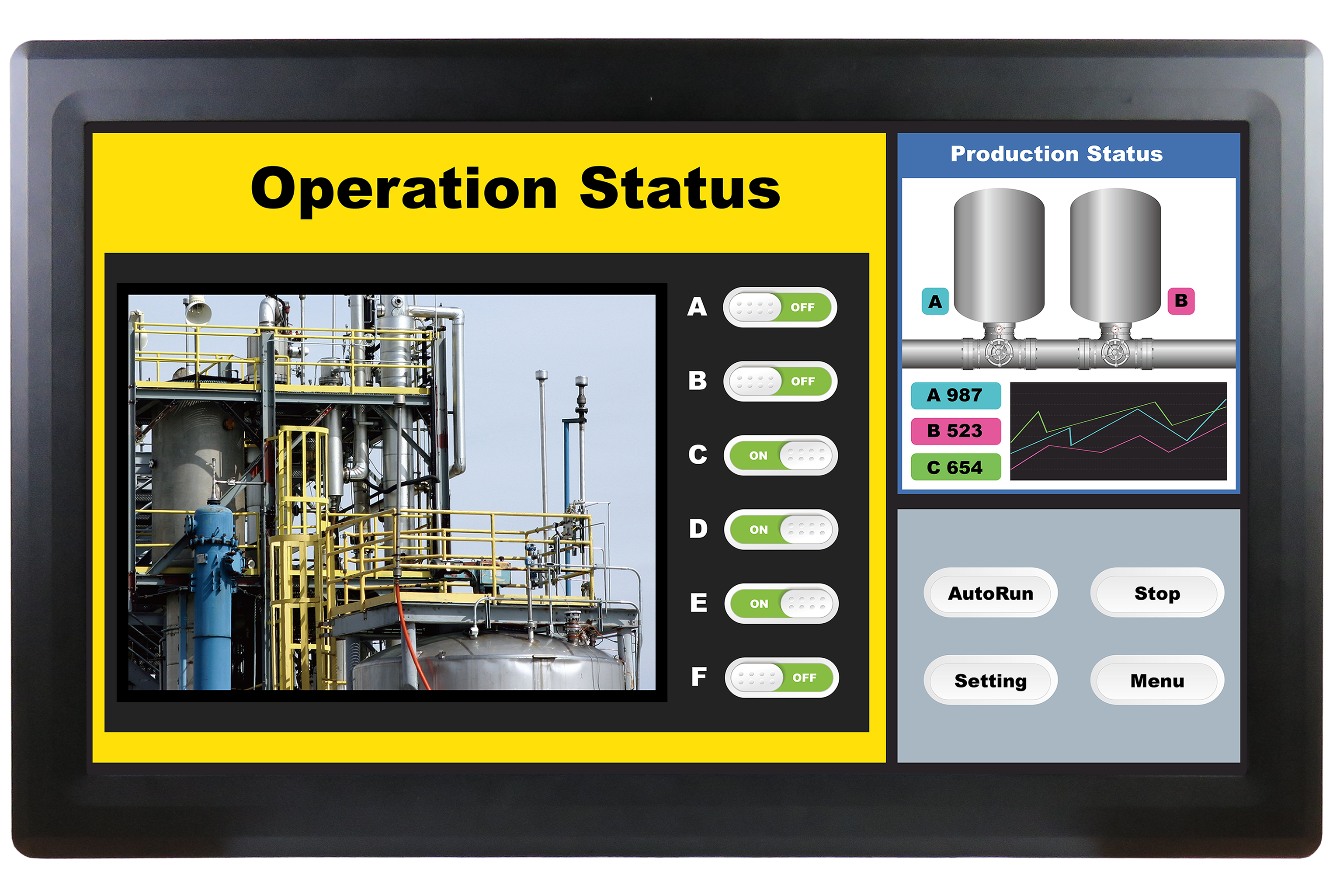

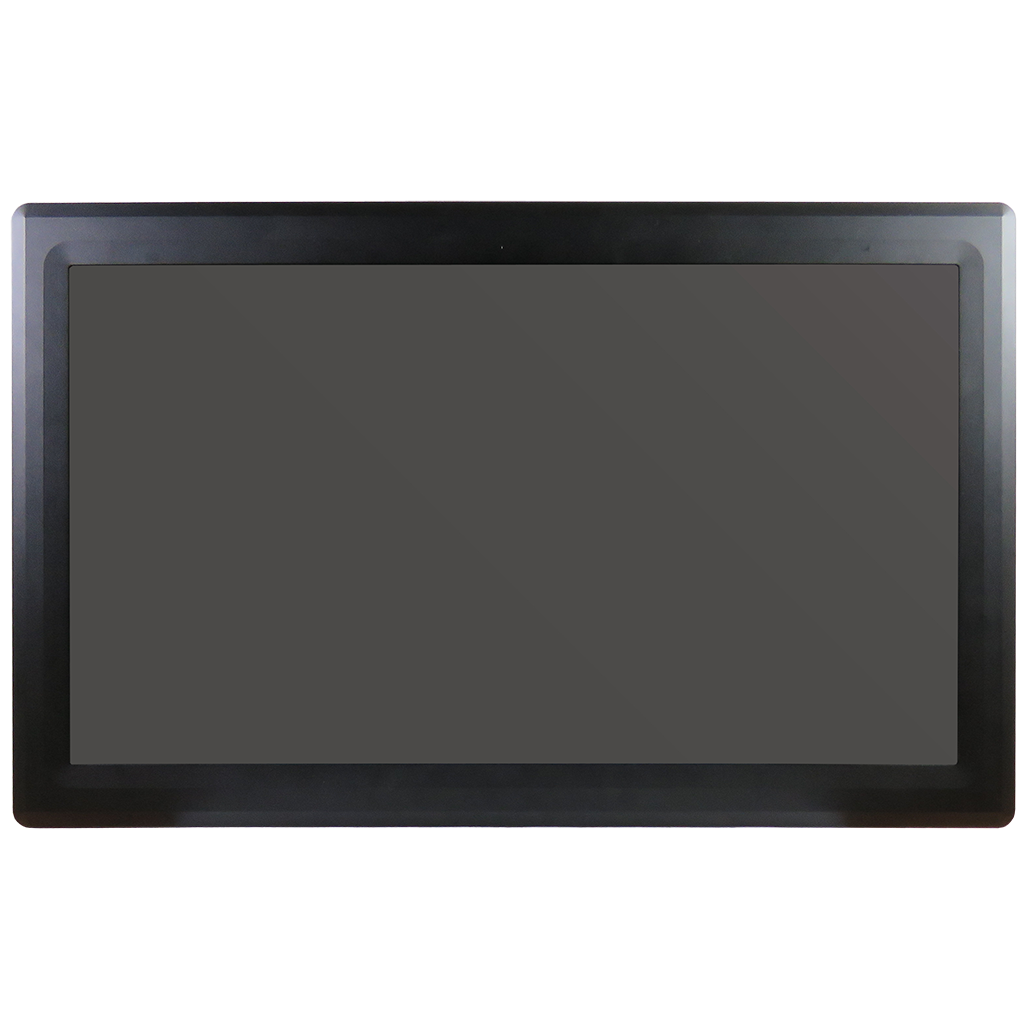

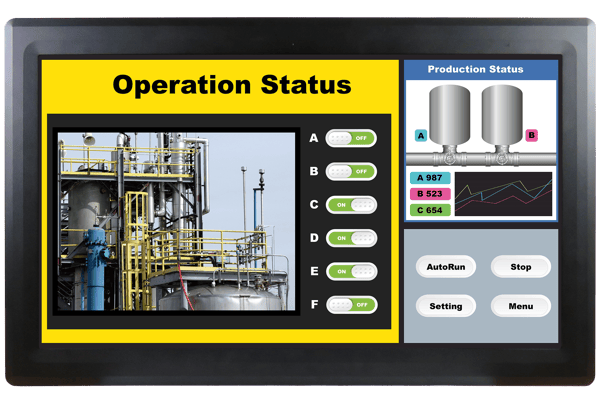

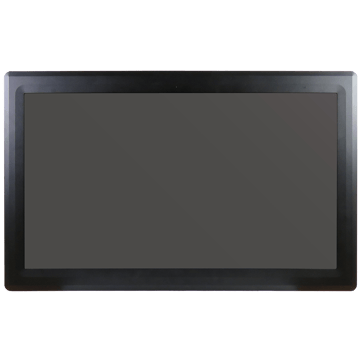

RuggedClient-KLU
Industrial Panel PC with 7th Gen Intel® Core™ U-Series Processors
RuggedClient-KLU Panel PC Datasheet
2.21 MB | March 26, 2026
RuggedClient-KLU
Industrial Panel PC with 7th Gen Intel® Core™ U-Series Processors
- 1x DP, 1x HDMI 2.0 for display output
- 2x GbE LAN for Ethernet
- 4x USB 3.0, 2x RS232/422/485 for peripheral connection
- 1x 2.5” SATA 3.0 HDD / SSD for storage
- 1x M.2 Key B, 1x mPCIe for expansion
Touch Screen, Anti-Spray
High-performance Oriented Applications
Powered by 7th Generation Intel® Core™ / Celeron® U-Series Processors, Kontron RuggedClient-KLU is a high-performance oriented panel PC targeted at advanced industrial applications. In addition to 1x DP, 1x HDMI 2.0, 4x USB 3.0, 2x COM, and 2x GbE LAN for display output, peripheral applications and wired networking, it has a variety of expansion slots /sockets for wireless, storage or other functional expansion, including M.2 Key B and mPCIe sockets.
Anti-Spray
The RuggedClient-KLU has IP65-rated from design as well as a waterproof gasket surrounding the back side of the front bezel to provide a waterproof seal between the device and the mounting surface. Thus, it can be installed under harsh industrial environments to protect sensitive components inside the enclosure against water spray intrusion.
Technical data
| Processor | Intel® Core™ i7-7600U (Dual Core, 4M Cache, up to 3.90 GHz, FCBGA1356, 15 W TDP) Intel® Core™ i5-7300U (Dual Core, 3M Cache, up to 3.50 GHz, FCBGA1356, 15 W TDP) Intel® Core™ i3-7100U (Dual Core, 3M Cache, 2.40 GHz, FCBGA1356, 15 W TDP) Intel® Celeron® 3965U (Dual Core, 2M Cache, 2.20 GHz, FCBGA1356, 15 W TDP) |
|---|---|
| Main Memory | 2x DDR4 2133 SO-DIMM up to 32 GByte |
| Graphics Controller | Intel® HD Graphics 620 (Core™ i processor) Intel® HD Graphics 610 (Celeron® processor) |
| Display | 21.5" 16:9 (1920 x 1080) 5-wire resistive LCD Display 1x HDMI 2.0 (on rear, 4096 x 2160 @ 60 Hz) 1x DP (on rear, 4096 x 2304 @ 60 Hz) Triple display support |
| Audio Controller | Realtek ALC662 |
Downloads
Driver
RuggedClient-KLU Audio Driver for Windows
242.44 MB | March 26, 2026
RuggedClient-KLU Graphics Driver for Windows
373.4 MB | March 26, 2026
RuggedClient-KLU COM Patch File
4.6 MB | March 26, 2026
RuggedClient-KLU Chipset Driver for Windows
2.72 MB | March 26, 2026
RuggedClient-KLU ME Driver for Windows
310.53 MB | March 26, 2026
RuggedClient-KLU Serial IO Driver for Windows
3.53 MB | March 26, 2026
RuggedClient-KLU LAN Driver for Windows
99.24 MB | March 26, 2026
RuggedClient-KLU USB3.0 Driver for Windows 7 Only
5.51 MB | March 26, 2026
Related products & solutions

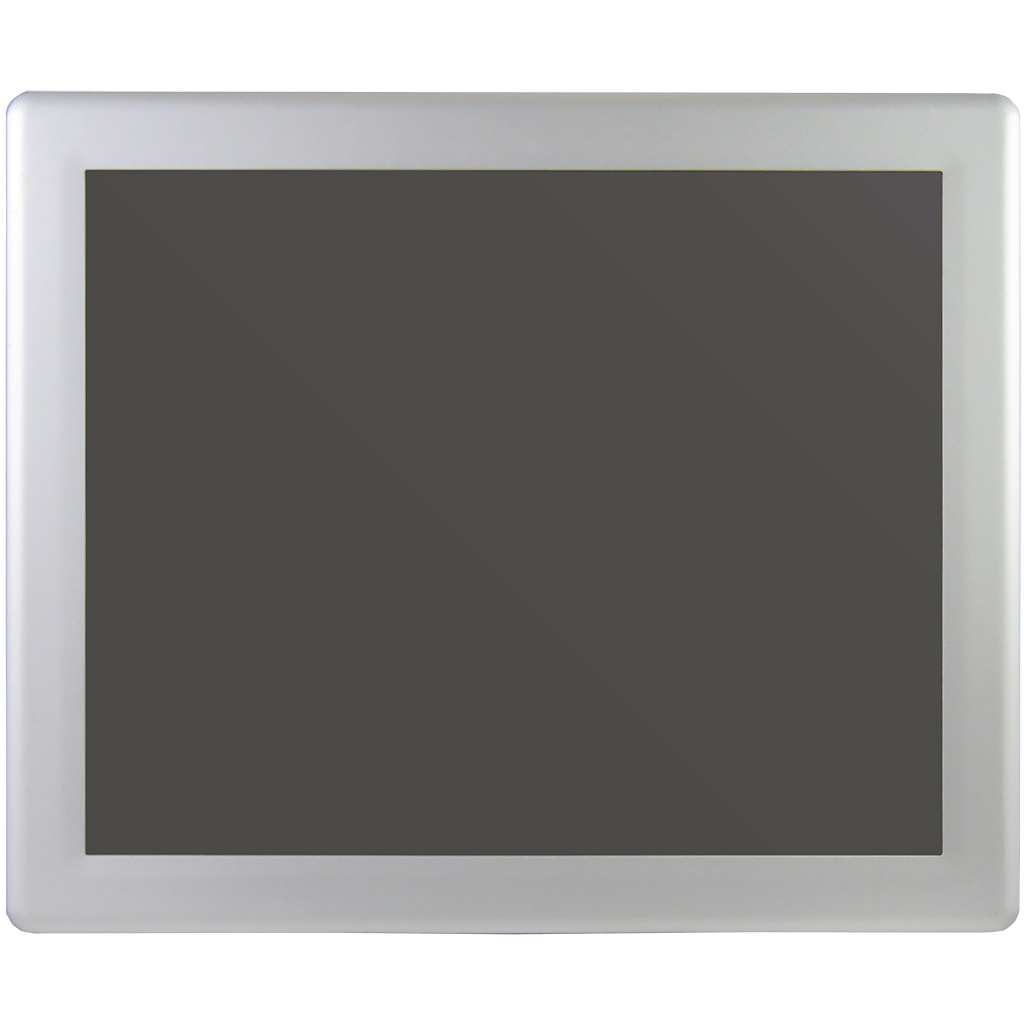

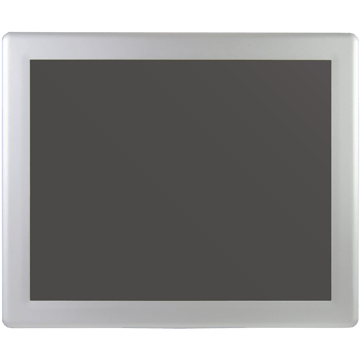

RuggedClient-SKL
