PXIe Controller Extension Datasheet
4.73 MB | April 21, 2026

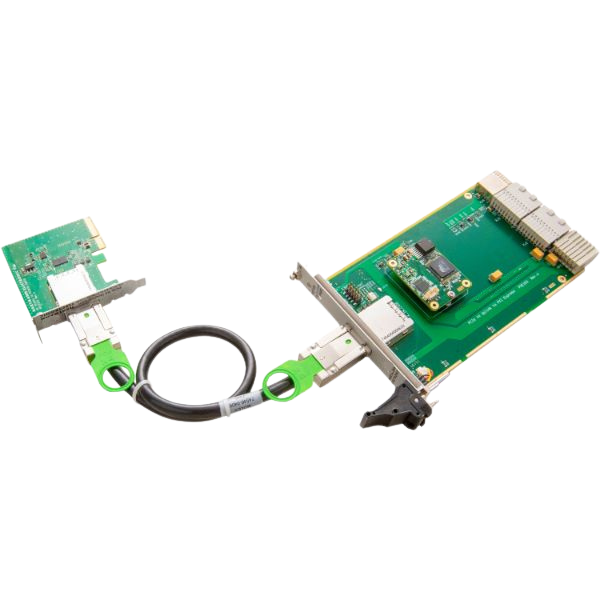

PXIe Controller Extension
Technical data
| Features | Form Factor: 3U × 4HP PXIe module Interface: PCIe Gen 2 ×4 uplink to PXIe system slot Power Consumption: 5 W (+5V/0.8A) Cable: Standard PCIe ×4 cable (1m or 3m) compliant with PCIe external cable specification 2.0 Driver Support: No additional drivers required; uses standard PCI-to-PCI bridge drivers Compatibility: Compatible with PXIe chassis implementing a PXIe system slot 4-link configuration; also compatible with CompactPCI Express systems Part Numbers: - 1H00007140: PXIe Controller Extension - PCIe ×4 uplink to PXIe Express - 1H00005304: PXIe Controller Extension - PC Card PCIe ×4 to PCIe ×4 Low Profile - 1H00005305: PXIe Controller Extension - PC Card PCIe ×4 to PCIe ×4 High Profile - F006.02170: PXIe Controller Extension - PCIe ×4 cable length 1 m - F006.02180: PXIe Controller Extension - PCIe ×4 cable length 3 m" |
|---|
