PXIe 4U 42HP 8 Slots Datasheet
142.59 KB | March 26, 2026
PXIe 4U/ 42HP 8 Slots

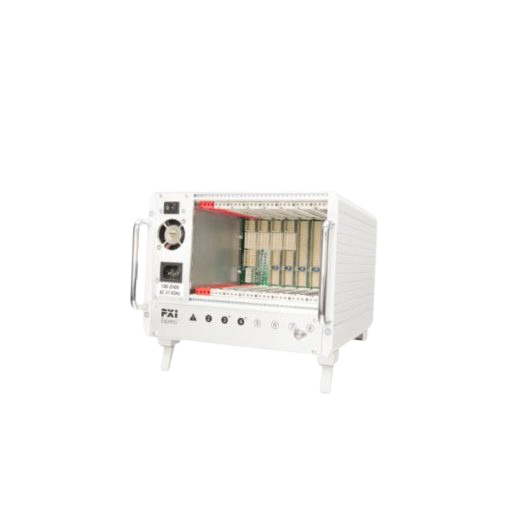

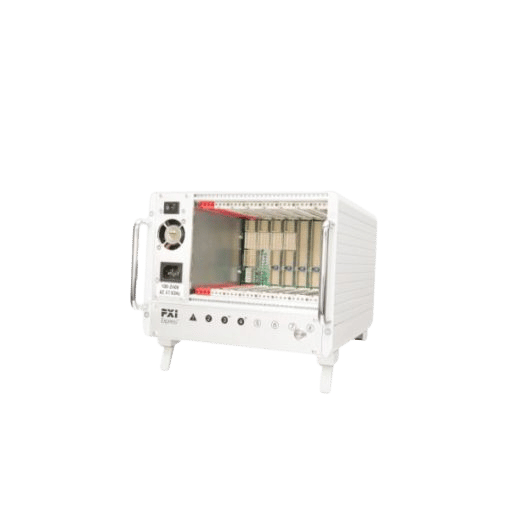

The PXIe 4U/42HP 8-slot chassis is a compact desktop system supporting PXIe and PXI modules. It provides high bandwidth, reliable cooling, and PXI-5 compliance.
- Form Factor & Slots: 4U PXI chassis (42HP) with 8 slots including 1 system slot, 1 PXIe slot, 2 hybrid PXI/PXIe slots, and 4 PXI legacy slots
- Backplane: 8-slot backplane fully supporting mixed PXI and PXI Express modules
- Power Supply: Integrated 300 W ATX power supply with wide-range AC input (90–264 VAC, 47–63 Hz)
- Power Outputs: +12 V / 24 A, +3.3 V / 17 A, +5 V / 18 A, −12 V / 0.3 A for reliable multi-rail operation

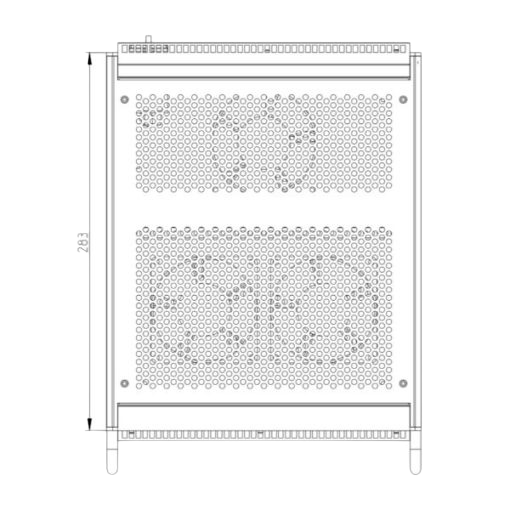

- Cooling & Mechanics: Internal fan tray with two 12 V fans (bottom-to-top airflow), designed for desktop operation
Product Information
The PXIe 4U/42HP 8 Slots chassis is a compact desktop solution supporting both PXI Express (PXIe) and legacy PXI modules. It provides high bandwidth, flexibility, and mobility for test and measurement systems. The chassis is equipped with a 300W ATX power supply and an internal fan tray with two 12V fans for efficient cooling. Airflow is from bottom to top. Compliance with the PXI-5 specification (Rev. 1.1) ensures compatibility with a variety of PXI/PXIe modules.
The PXIe 4U/42HP 8 Slots chassis offers a versatile and reliable solution for test and measurement systems requiring both PXI and PXIe modules. Its hybrid slot configuration allows maximum flexibility in module selection. The robust cooling system and industrial standard compliance ensure reliable operation even under demanding environmental conditions.
Technical data
| Features | Supports both PXI and PXIe modules PXI-5 specification (Rev. 1.1) compliant Hybrid slots for maximum module flexibility High cooling performance with internal fans and bottom-to-top airflow Compliant with relevant industrial, military, and railway standards Dimensions: Height: 4U Width: 42HP Depth: 278 mm Standards Compliance: IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 Military: MIL-STD-810F: 514.5C-15 (vibration), 514.5 C-1 (vibration), 515.5-10 (shock) Railway: EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)" |
|---|
