PXIe 1U 84HP 6 Slots Datasheet
197.12 KB | March 26, 2026

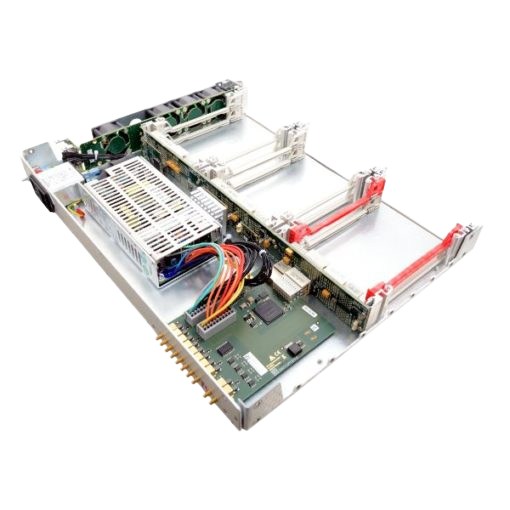

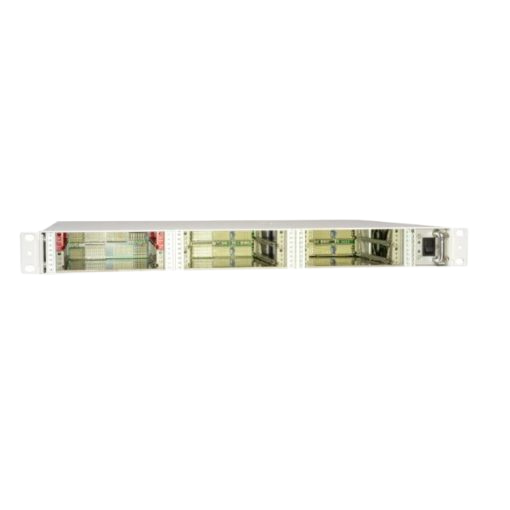

PXIe 1U/ 84HP 6 Slots
The CompactPCI 2U 84HP 4-slot chassis is a compact, industrial-grade platform for embedded systems. It offers reliable power, rear I/O, and standards compliance.
- Form Factor & Slots: 2U CompactPCI chassis (84HP) with 4 slots, 6U boards, 64-bit / 33 MHz, 5 V I/O and rear I/O support
- Backplane: 4-slot, 6U CompactPCI backplane, 64-bit / 33 MHz, 5 V I/O with rear I/O
- Power Supply: 300 W CompactPCI power supply, hot-swap capable, wide-range AC input (90–264 VAC, 47–63 Hz)
- Power Outputs: +3.3 V / 40 A, +5 V / 40 A, +12 V / 10 A, −12 V / 2 A (300 W total max. power)
- Cooling & Airflow: Removable fan tray with replaceable dust filter, three high-performance fans (36.4 CFM each), left-to-right airflow
Product Information
The CompactPCI 2U 84HP 4 Slots chassis is a compact and robust solution designed for high-performance embedded systems. It features a 4-slot, 6U backplane with 5V I/O, supporting 64-bit/33 MHz operation with rear I/O. The system is equipped with a 300W hot-swap power supply and is designed with enhanced EMC features to meet industrial standards. Its full-width rack-mount design conforms to mechanical standards IEEE 1101.1 and 1101.10/11, as well as IEC 60297-3-101, -102, -103, making it suitable for various applications, including military and industrial environments.
The CompactPCI 2U 84HP 4 Slots chassis offers a reliable and scalable solution for embedded systems requiring high-performance processing capabilities. Its compact design and compliance with industrial standards make it suitable for a wide range of applications, including military, railway, and industrial environments. The efficient cooling system ensures reliable operation even under demanding conditions.
Technical data
| Features | Mounting: 19"" rack-mount Dimensions: Height: 2U Width: 84HP Depth: 283.1 mm Compliance: IEEE 1101.1, 1101.10/11; IEC 60297-3-101, -102, -103 Environmental Standards: MIL-STD-810F: 514.5C-15 (vibration) MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock) EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration) Part Number: LMH00002224-slot, 6U backplane with 5V I/O 300W cPCI, hot-swap power supply Removable fan tray with replaceable dust filter 3 fans (36.4 CFM each) Left to right airflow 19"" rack-mount design Compliant with IEEE and IEC standards Suitable for military, railway, and industrial applications |
|---|
