<i>p</i>ITX-SP, Datasheet
2.39 MB | March 26, 2026
This product is legacy and no longer actively supported.

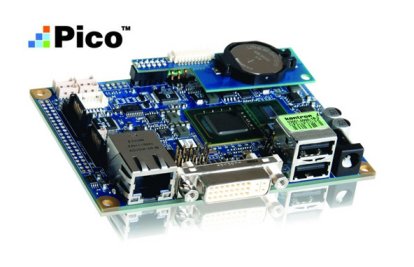

pITX-SP
2.5" Motherboard with Intel® Atom™ processor up to 1.6 GHz on Pico-ITX™ form factor
- Pico-ITX™ Small Form Factor 100 x 72 mm
- Intel® Atom™ Z510 / 530 processors
- Intel® System Controller Hub US15W
- Dual SATA, PATA44 bootable microSD
- 6 x USB
Full featured 2.5" Embedded Motherboard with Intel® Atom™ processor up to 1.6 GHz on Pico-ITX™.
The Pico-ITX™ form factor is ideal for small and powerful devices e.g. in combination with 2.5" hard drives or microSD-cards. pITX-SP, Kontron’s first 2.5" Motherboard based on this specification features the Intel® Atom™ Z510 / Z530 processor and the Intel® System Controller Hub US15W.
Together with high speed interfaces like Gb-LAN, Dual-SATA and USB 2.0, the onboard DVI (up to 1920 x 1080 @ 60Hz) and LVDS (JILI30, up to 112MHz pixel clock via single channel, nearly all display resolutions from VGA up to WXGA are provided) connectors, HD Audio and SP/DIF makes many multimedia applications possible.
The chipset of the pITX-SP provides shader based 2D and 3D dual independent graphics, integrated decoders for MPG2 and H.264 / MPEG-4 AVC as well as Direct X and Open GL support. Additional functions can be realized by using the SDIO or Digital-I/O port. On the software side Kontron typical functions like JIDA (JUMPtec Intelligent Device Architecture Interface) and other Bios tools simplify the system setup and operation.
With the pITX-SP Kontron offers a small, powerful and very cost effective 2.5" Embedded Motherboard.
Together with high speed interfaces like Gb-LAN, Dual-SATA and USB 2.0, the onboard DVI (up to 1920 x 1080 @ 60Hz) and LVDS (JILI30, up to 112MHz pixel clock via single channel, nearly all display resolutions from VGA up to WXGA are provided) connectors, HD Audio and SP/DIF makes many multimedia applications possible.
The chipset of the pITX-SP provides shader based 2D and 3D dual independent graphics, integrated decoders for MPG2 and H.264 / MPEG-4 AVC as well as Direct X and Open GL support. Additional functions can be realized by using the SDIO or Digital-I/O port. On the software side Kontron typical functions like JIDA (JUMPtec Intelligent Device Architecture Interface) and other Bios tools simplify the system setup and operation.
With the pITX-SP Kontron offers a small, powerful and very cost effective 2.5" Embedded Motherboard.
Downloads
BIOS
BIOS Tools Package v6.5
2.5 MB | March 26, 2026
(Included BF.exe updated 09-03-2011)
pITX-SP Bios Revision Information
54.48 KB | March 26, 2026
pITX-SP Bios R112
344.08 KB | March 26, 2026
pITX-SP BIOS Update Tool Package
342.8 KB | March 26, 2026
pITX-SP BIOS Update Tool for DOS and Windows
pITX-SP Bios R115
436.88 KB | March 26, 2026
Please read Bios Note located in zip file!
This Bios may only be used beginning from hardware revision CE 1.0.0 (PCB revision V 5.00).
pITX-SP Bios R119
353.54 KB | March 26, 2026
Driver
pITX-SP Audio XP
30.75 MB | March 26, 2026
Windows XP Realtek Audio Driver for pITX-SP
pITX-SP S-ATA Driver Floppy
69.24 KB | March 26, 2026
Windows Vista S-ATA Driver Floppy for pITX-SP
pITX-SP Ethernet
11.5 MB | March 26, 2026
Windows Vista Ethernet Driver for pITX-SP
pITX-SP Ethernet XP
12.5 MB | March 26, 2026
WindowsXP Ethernet Driver for pITX-SP
pITX-SP Graphics Driver XP
29.95 MB | March 26, 2026
WindowsXP Grahics Driver for pITX-SP
pITX-SP S-ATA Driver Floppy XP
69.24 KB | March 26, 2026
WindowsXP S-ATA Driver Floppy for pITX-SP
pITX-SP Audio Driver
35.88 MB | March 26, 2026
Windows Vista Realtek Audio driver for pITX-SP
pITX-SP Graphics
29.12 MB | March 26, 2026
Windows Vista Graphics Driver for pITX-SP
JIDA32 Interface Library API for Linux
306.46 KB | March 26, 2026
JIDA32 Interface Library API for Windows®
585.93 KB | March 26, 2026
pITX-SP Audio Driver
35.88 MB | March 26, 2026
Windows 7 Realtek Audio Driver for pITX-SP
pITX-SP Ethernet Driver
13.53 MB | March 26, 2026
Windows 7 Ethernet Driver for pITX-SP
JIDA32 Interface Library API for Windows®
585.93 KB | March 26, 2026
Windows 7® JIDA32 Interface Library API
pITX-SP S-ATA Driver Floppy
69.24 KB | March 26, 2026
Windows 7 S-ATA Driver Floppy for pITX-SP
pITX-SP Graphics Driver
31.02 MB | March 26, 2026
Windows 7 GMA driver for pITX-SP
pITX-SP USB Client Port Driver
9.41 MB | March 26, 2026
Windows 7® USB client port driver for pITX-SP
pITX-SP USB Client Port Driver
9.41 MB | March 26, 2026
Windows XP USB Client Port Driver for pITX-SP
pITX-SP USB Client Port Driver
9.41 MB | March 26, 2026
Windows Vista USB Client Port Driver for pITX-SP
Software
pITX-SP BSP for Windows XPembedded
23.87 MB | March 26, 2026
pITX-SP BSP for Windows CE 6.0
6.79 MB | March 26, 2026
User Guide for the BSP is included in the zip-file.
pITX-SP BSP for Windows Embedded Standard 7 SP1
13.3 MB | March 26, 2026
pITX-SP BSP for Linux Release Notes R01
93.81 KB | March 26, 2026
pITX-SP BSP for VxWorks
234.79 KB | March 26, 2026
pITX-SP BSP for Linux
813.57 MB | March 26, 2026
Based on Fedora Linux
Service
Kontron Services Brochure
476.99 KB | March 26, 2026
3D mechanical drawing of pITX-SP in IGS file format
10.42 MB | March 26, 2026
3D mechanical drawing of pITX-SP in STEP file format
6.77 MB | March 26, 2026
2D mechanical drawing in PDF format
400.22 KB | March 26, 2026
3D mechanical drawing of pITX-SP in PDF format
5.47 MB | March 26, 2026
DisplayID Update Tool for DOS
39.55 KB | March 26, 2026
DisplayID Tool V2.01
1.4 MB | March 26, 2026
