PCIe to cPCI Bridge Datasheet
4.95 MB | March 26, 2026

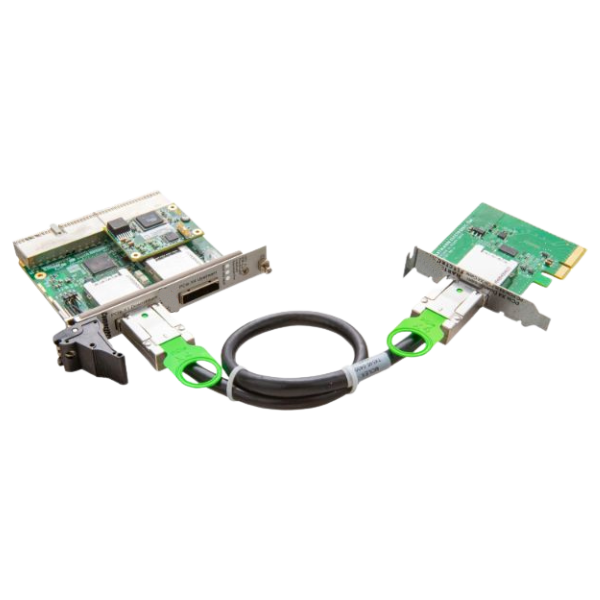

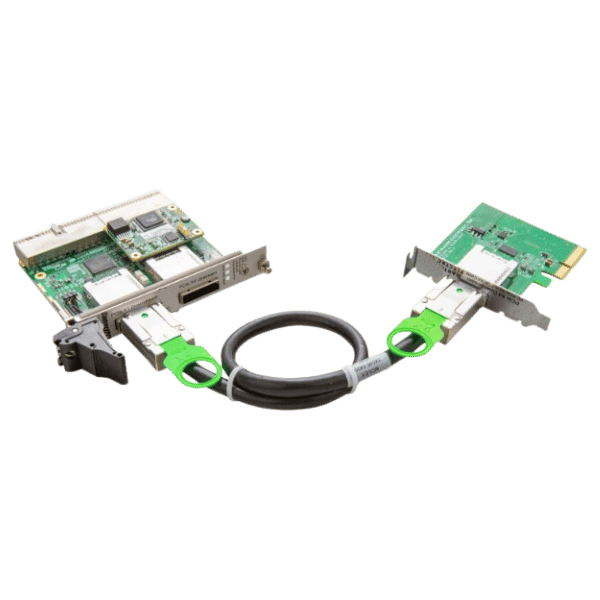

PCIe to cPCI Bridge
The PCIe to cPCI Bridge enables seamless communication between PCI Express (PCIe) devices and CompactPCI (cPCI) systems.
- Seamless Integration: Allows modern PCIe devices to operate within cPCI systems.
- Flexible Connectivity: Supports different cable lengths to accommodate various system configurations.
- Standard Compliance: Meets industry standards for both PCIe and cPCI interfaces.
- Hot-Swappable: Facilitates maintenance without system downtime.
Product Information
This bridge facilitates the integration of modern PCIe-based components into legacy cPCI platforms, ensuring compatibility and extending the usability of existing systems.
The cPCI Serial 3U AC 300W power supply is designed to meet the power needs of CompactPCI Serial systems in industrial, military/aerospace, and communications applications. Its wide input voltage range and efficient power conversion ensure reliable operation in various environments. The support for hot-swap and redundancy features enhances system availability and fault tolerance.
Technical data
| Features | Form Factor: 3U CompactPCI module PCIe Side: PCIe x4 cPCI Side: 7-slot cPCI backplane Voltage I/O: 3.3V Cable Options: Available with 1m or 3m PCIe x4 cables Part Numbers: 1H00007120: PCIe x4 to 7-slot cPCI Bridge F006.02170: PCIe x4 cable, 1m F006.02180: PCIe x4 cable, 3m |
|---|
