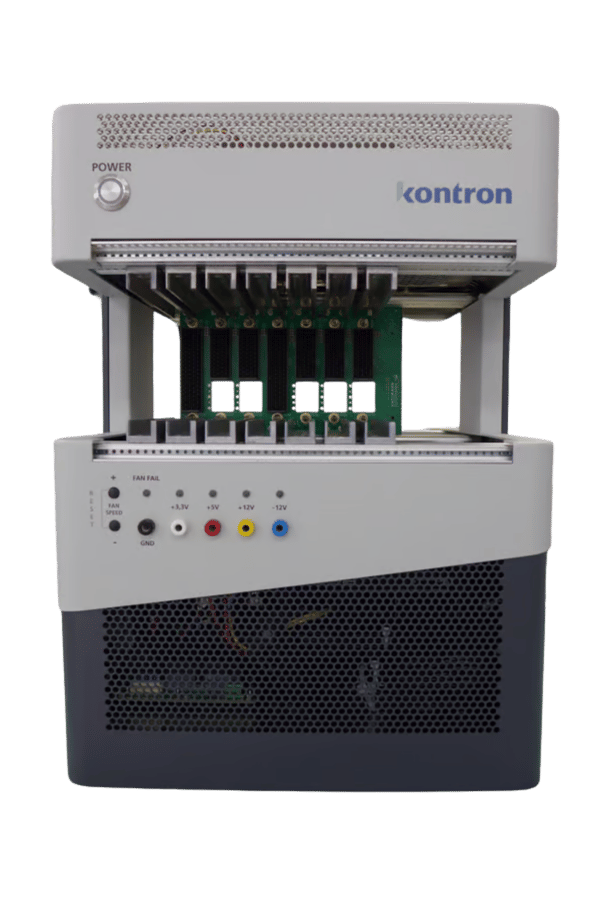

Open Frame Chassis with. 7 Slot Backplane und KCC
Offering maximum accessibility, high-speed 100 Gbit/s Ethernet support and a flexible slot configuration for SOSA® compliant VPX systems. LMH0001060
- Form Factor: Open frame chassis for 3U VPX systems
- Backplane: SOSA® aligned 7-slot VPX backplane
- Slot Configuration: 1 SBC, 1 Switch, 1 Clock, 4 Payload slots
- Data Rate: Designed for up to 100 Gbit/s Ethernet (100GBase-KR4)
- Cooling Concept: Open frame design, bottom-to-top airflow
Product Information
The open frame chassis with SOSA® aligned 7-slot VPX backplane is designed for development, test and validation environments where maximum accessibility and flexibility are required.
The open frame design allows unrestricted access to boards, connectors and measurement points, making it ideal for laboratory use and system bring-up. The integrated 3U SOSA® aligned VPX backplane supports a seven-slot topology consisting of one SBC slot, one switch slot, one clock slot and four payload slots.
The backplane is designed for high-speed data transmission up to 100 Gbit/s Ethernet (100GBase-KR4) and uses TE Connectivity MULTIGIG RT 3 connectors to ensure reliable signal integrity. It complies with VITA 46 and VITA 65 specifications and supports standardized SOSA® slot profiles.
Flexible configuration options are available for data, control and radial clock planes. The open frame chassis supports bottom-to-top airflow and can be combined with application-specific cooling solutions depending on system configuration and power dissipation.
Custom assemblies or modifications of the open frame chassis and backplane integration are available on request.
Technical data
| Common Features | Features: Open Frame Chassis Design for Easy Access During Development and Testing Backplane: Integrated SOSA® Aligned 3U VPX Backplane Mechanics & Slots: 7 Slots Total Mechanics & Slots: 1 SBC Slot, 1 Switch Slot, 1 Clock Slot, 4 Payload Slots |
|---|---|
| Compliance | Compliance: SOSA® Aligned Compliance: VITA 46 Compliance: VITA 65 Standard: Standardized SOSA® Slot Profiles Supported |
| Ethernet | Ethernet: Up to 100 Gbit/s Ethernet Ethernet: 100GBase-KR4 |
| Connector | Connector: TE Connectivity MULTIGIG RT 3 Characteristics: High-Speed Signal Integrity Design |
| Characteristics | Packet Switched Backplane: Flexible Data Plane Configuration Packet Switched Backplane: Flexible Control Plane Configuration Packet Switched Backplane: Flexible Radial Clock Plane Configuration |
