NIM Portable 150 W Datasheet
366.42 KB | March 26, 2026

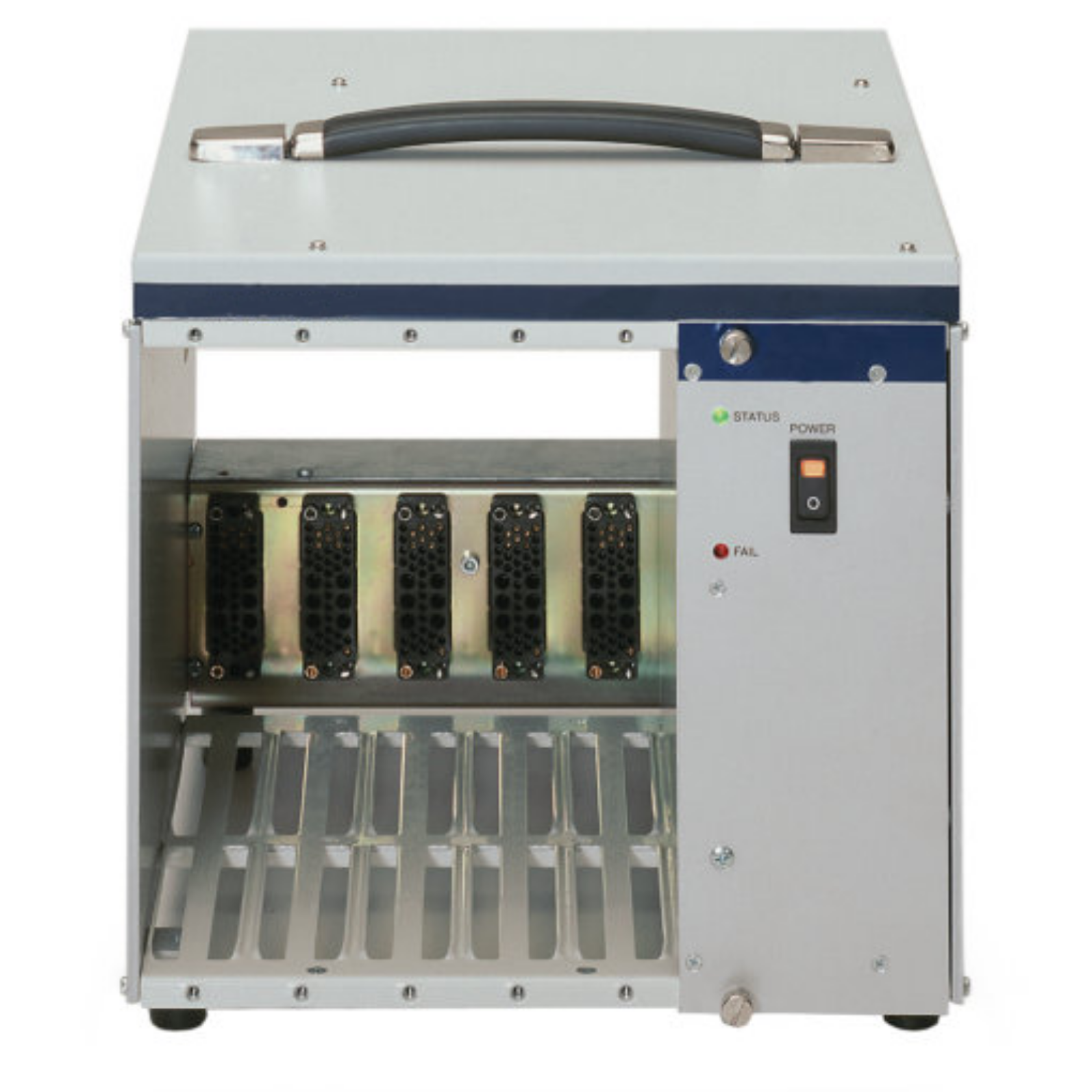

NIM Portable 150 W
Portable 5-slot NIM Chassis with 150 W linear regulated power supply for mobile and compact nuclear electronics applications.
- 150 W linear regulated UEP15 power supply
- Outputs: ±6 V (5 A), ±12 V (3 A), ±24 V (1.5 A), optional 115 VAC (0.25 A)
- 5 slots for NIM modules
- Compact 273 × 273 mm housing
- Lightweight and portable design
Product Information
The NIM Portable 150W is a compact and lightweight Chassis designed for mobile nuclear electronics setups. It offers 5 module slots and a high-quality 150 W linear regulated UEP15 power supply, delivering stable, low-noise outputs of ±6 V at 5 A, ±12 V at 3 A, ±24 V at 1.5 A, and optional 115 VAC at 0.25 A. Fully compliant with the NIM standard, this portable version is ideal for small-scale, high-resolution measurement systems in laboratories or field environments, powering devices such as amplifiers, ADCs, and timing modules. Its rugged yet lightweight build ensures easy transport without compromising reliability.
Technical data
| Features | Compliant with NIM standard (AEC report TID20893) 5-slot portable configuration Linear regulated 150 W UEP15 power supply Multiple voltage outputs: ±6 V, ±12 V, ±24 V, optional 115 VAC Lightweight and easy to transport Rugged chassis for field and lab use Low-noise operation for precision electronics |
|---|
