NIM 6000 Series Datasheet
439.51 KB | March 26, 2026

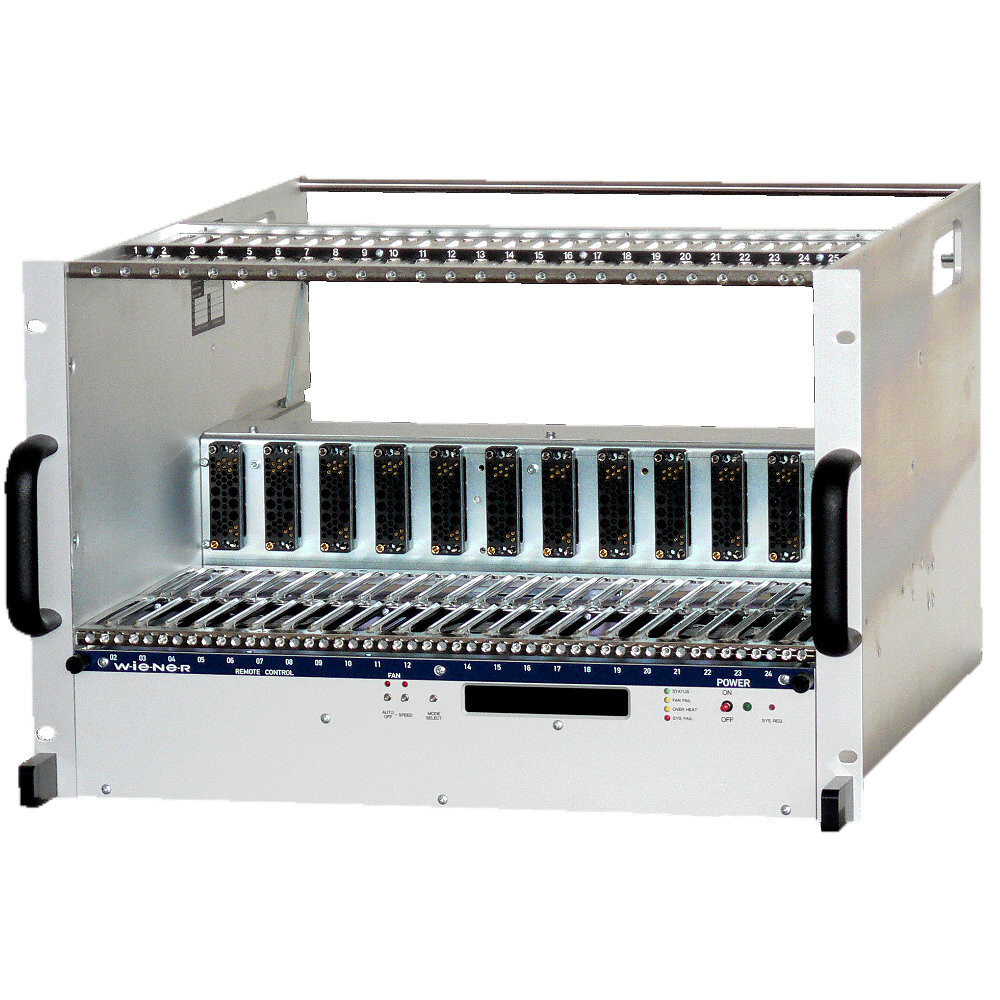

NIM 6000 Series
High-power 12-slot 19″ NIM crate with 1500 W to 2700 W linear regulated power supplies for large-scale nuclear electronics systems.
- Power range: 1500 W to 2700 W linear regulated PSU
- Outputs: ±6 V, ±12 V, ±24 V
- 12 slots for NIM modules
- 7U height, 19″ rack-mount design
- Designed for high-power, low-noise applications
Product Information
The NIM Compact 150W is a full-size 19″ rack-mount crate with 12 slots (10 usable for modules) and a high-quality 150 W linear regulated power supply (UEP15). Built to the NIM “Nuclear Instrument Module” standard, it delivers stable, low-noise outputs for sensitive analogue and digital electronics, such as amplifiers, ADCs, and timing modules. Its compact 5U form factor and robust design make it ideal for research facilities and laboratories requiring reliable power distribution.
Technical data
| Features | Compliant with NIM standard (AEC report TID20893) 12-slot 19″ rack-mount design High-power linear regulated PSU: 1500 W to 2700 W Multiple voltage outputs: ±6 V, ±12 V, ±24 V Rugged 7U construction for heavy-duty use Optimized for stable, low-noise operation Suitable for large-scale laboratory and research environments |
|---|
Variants
Select variants here
No variants found.
